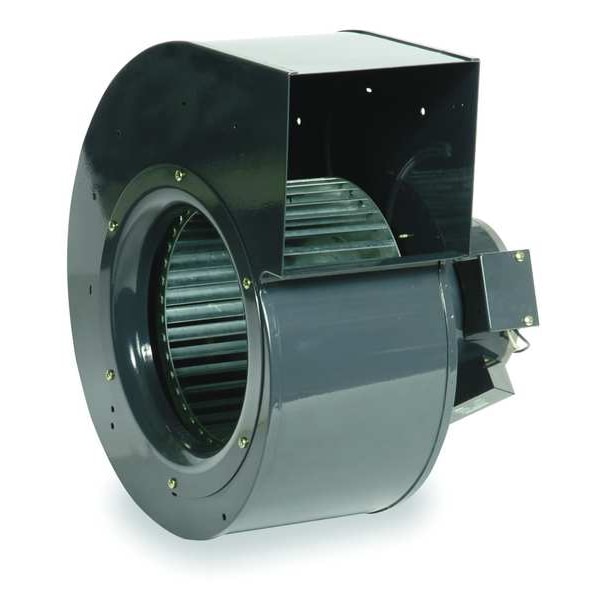

Rectangular OEM Blower, 1075 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 780 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 2.75/1.45 |
| Housing Material | Steel |
| Includes | Not Applicable |
| Inlet Dia. | 7 in |
| Number of Speeds | 1 |
| Overall Height | 14-7/8 in |
| Overall Width | 10-1/2 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | No |
| Blower Wheel Diameter | 8-1/4 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115/230V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| Housing Color | Gray |
| Item | OEM Blower |
| Outlet Width | 6-3/16 in |
| Hz | 50/60 |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| CFM @ 0.200-In. SP | 750 |
| Dimension C | 10-5/16 in |
| Dimension B | 10 in |
| CFM @ 0.600-In. SP | 570 |
| Motor Enclosure | Open |
| Outlet Height | 5-1/2 in |
| Dimension D | 6-5/16 in |
| Dimension J | 2-1/4 in |
| Overall Depth | 13-1/8 in |
| RPM | 1,075 |
| Housing Finish | Enamel |
| Blower Wheel Width | 4-1/16 in |
| CFM @ 0.400-In. SP | 670 |
| Bearing Type | Ball |
| Lead Length | 13 in |
| CFM @ 0.500-In. SP | 610 |
| Dimension E | 14-7/8 in |
| Mounting Position | All Position |
| CFM @ 0.300-In. SP | 690 |
| CFM @ 0.000-In. SP | 794 |
| Max. Inlet Temp. | 104 deg F |
| Dimension A | 13-1/8 in |
| Dimension F | 5 in |
| Max. Ambient Temp. | 104 deg F |
| Replaces | 4C668 |
| Wheel Type | Forward-Curved |
| Motor Insulation | Class B |
| Motor Horsepower | 0.1667 HP |
| Rotation | CW |
| Wheel Bore Diameter | 14 mm |
| Airflow @ 13.00 in SP | Not Applicable |
| Airflow @ 9.000 in SP | Not Applicable |
| Inlet Diameter | 7 in |
| Includes Motor | Yes |
| Nameplate Voltage | 115/230V AC |
| Motor Insulation Class | B |
| Airflow @ 6.000 in SP | Not Applicable |
| Housing Material Gauge | 1.2 mm |
| Motor Type | Permanent Split Capacitor |
| Housing Material Finish | Enamel |
| Minimum Fan Speed | 0 RPM |
| For Location | Indoor |
| Outlet Diameter | Not Applicable |
| Housing Width | 10-1/2 in |
| Speed Controllable | No |
| For High-Static Pressure Applications | No |
| Electrical Connection | Wire Leads |
| Brake Horsepower | 0.1667 HP |
| Wheel Width | 4 in |
| Maximum Fan Speed | 1,075 rpm |
| Airflow @ 0.125 in SP | Not Applicable |
| Market | Commercial, Industrial, Residential |
| High-Efficiency Motor | No |
| Airflow @ 1.250 in SP | Not Applicable |
| Airflow @ 0.000 in SP | 794 cfm |
| Hazardous Location Application | No |
| Replacement For | 4C668 |
| Sound Level | Not Rated |
| Manufacturer Warranty Length | 1 yr Limited |
| Maximum Ambient Temperature | 104 deg F |
| Airflow @ 12.00 in SP | Not Applicable |
| Current | 2.75/1.45 A |
| AMCA Fan Class | Not Rated |
| Housing Height | 14-7/8 in |
| Airflow @ 0.375 in SP | Not Applicable |
| Mount Type | All Position |
| Airflow @ 2.000 in SP | Not Applicable |
| Airflow @ 5.000 in SP | Not Applicable |
| Motor IP Rating | IP20 |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| For Air Type | Clean Air |
| Airflow @ 0.250 in SP | 720 cfm |
| Airflow @ 1.000 in SP | Not Applicable |
| Flange Size | Not Applicable |
| Airflow @ 0.100 in SP | 780 cfm |
| Outlet Shape | Rectangular |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Maximum Inlet Air Temperature | 104 deg F |
| Assembly | Assembled |
| Housing Material Grade | SPCC |
| Airflow @ 11.00 in SP | Not Applicable |
| Motor Duty Class | Continuous |
| Spark Resistant Construction Type | Not Rated |
| Motor Location | Out of Airstream |
| Shaft Diameter | 14 mm |
| Frequency | 50/60 Hz |
| Airflow @ 0.400 in SP | 670 cfm |
| Airflow @ 4.500 in SP | Not Applicable |
| Airflow @ 8.000 in SP | Not Applicable |
| Airflow @ 0.500 in SP | 610 cfm |
| Motor Frame Designation | 5" PSC motor |
| Mounting Orientation | Multiposition |
| Flange Type | Non-Flanged |
| Airflow @ 4.000 in SP | Not Applicable |
| Maximum Static Pressure | 0.875 in wc |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Compatible Speed Control | No |
| Housing Depth | 13-1/8 in |
| Number of Inlets | 1 |
| OEM Replacement | Yes |
| Wheel Material Finish | Galvanized |
| Includes Drive Package | Not Applicable |
| Airflow @ 3.000 in SP | Not Applicable |
| Airflow @ 0.750 in SP | Not Applicable |
| Airflow @ 1.500 in SP | Not Applicable |
| Corrosion Resistant | No |
| Airflow @ 10.00 in SP | Not Applicable |
| Thermal Overload Protection | Yes |
| Airflow @ 7.000 in SP | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Motor Speed | 1,030 rpm |
| Hazardous Location Specification | Not Applicable |
| Minimum Ambient Temperature | 14 deg F |
| Features | The Dynamically Balanced Blower Provides Smooth and Quiet Operation, the Motor Has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, the Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures |
| Airflow @ 3.500 in SP | Not Applicable |
| Chemical Resistant | No |
| Wheel Diameter | 8-1/4 in |
| Includes Mounting Hardware | No |
| Airflow @ 2.500 in SP | Not Applicable |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 115/230 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
