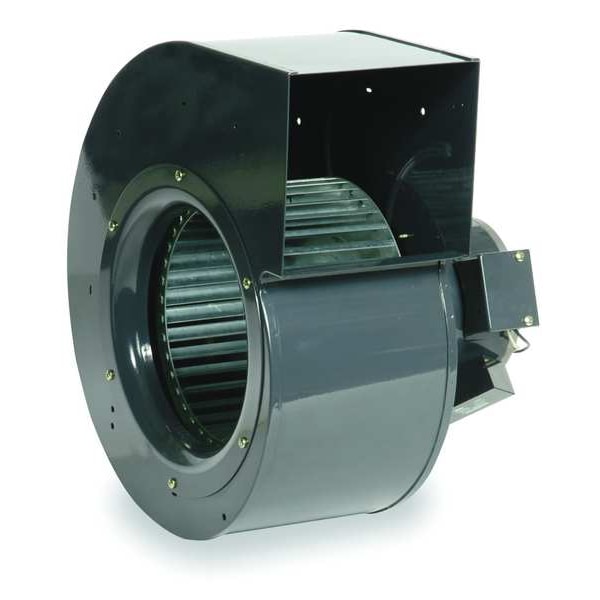

Rectangular OEM Blower, 1080 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 960 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 3.66/1.88 |
| Housing Material | Steel |
| Includes | Not Applicable |
| Inlet Dia. | 7 in |
| Number of Speeds | 1 |
| Overall Height | 14-7/8 in |
| Overall Width | 11-1/2 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | No |
| Blower Wheel Diameter | 8-5/8 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115/230V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| RPM | 1,080 |
| Replaces | 4C830 |
| CFM @ 0.300-In. SP | 875 |
| Dimension J | 2-1/4 in |
| CFM @ 0.000-In. SP | 990 |
| Motor Insulation | Class B |
| Outlet Height | 5-1/2 in |
| Lead Length | 13 in |
| Dimension A | 13-1/8 in |
| CFM @ 0.400-In. SP | 825 |
| Item | OEM Blower |
| Dimension C | 11-5/16 in |
| Housing Color | Gray |
| Dimension F | 5 in |
| Dimension E | 14-7/8 in |
| Motor Enclosure | Open |
| CFM @ 0.600-In. SP | 725 |
| Max. Inlet Temp. | 104 deg F |
| CFM @ 0.200-In. SP | 940 |
| Overall Depth | 13-1/8 in |
| Hz | 50/60 |
| Max. Ambient Temp. | 104 deg F |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Blower Wheel Width | 5-1/4 in |
| Dimension D | 7-5/16 in |
| Bearing Type | Ball |
| Wheel Type | Forward-Curved |
| CFM @ 0.700-In. SP | 640 |
| Dimension B | 10 in |
| Housing Finish | Enamel |
| Mounting Position | All Position |
| Outlet Width | 7-3/16 in |
| CFM @ 0.500-In. SP | 775 |
| Wheel Diameter | 8-5/8 in |
| Airflow @ 4.500 in SP | Not Applicable |
| Market | Commercial, Industrial, Residential |
| Housing Material Finish | Enamel |
| Airflow @ 1.000 in SP | Not Applicable |
| Airflow @ 3.500 in SP | Not Applicable |
| Motor Location | Out of Airstream |
| Includes Motor | Yes |
| Resistance Properties | Corrosion Resistant |
| Hazardous Location Specification | Not Applicable |
| Airflow @ 0.000 in SP | 990 cfm |
| Maximum Static Pressure | 1 in wc |
| Motor Speed | 1,050 rpm |
| Assembly | Assembled |
| Flange Size | Not Applicable |
| Maximum Ambient Temperature | 104 deg F |
| Brake Horsepower | 0.25 HP |
| Spark Resistant Construction Type | Not Rated |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Speed Controllable | No |
| Housing Material Grade | SPCC |
| Features | the Dynamically Balanced Blower Provides Smooth and Quiet Operation, the Motor Has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, The Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures |
| Flange Type | Non-Flanged |
| Motor Horsepower | 0.25 HP |
| Sound Level | Not Rated |
| Wheel Width | 5-1/4 in |
| Wheel Material Finish | Galvanized |
| For Location | Indoor |
| Wheel Bore Diameter | 14 mm |
| Housing Width | 11-1/2 in |
| Motor IP Rating | IP20 |
| OEM Replacement | Yes |
| Airflow @ 0.125 in SP | Not Applicable |
| Airflow @ 0.250 in SP | 882 cfm |
| Airflow @ 2.500 in SP | Not Applicable |
| Rotation | CW |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Thermal Overload Protection | Yes |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Housing Height | 14-7/8 in |
| Current | 3.66/1.88 A |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Includes Drive Package | Not Applicable |
| Airflow @ 13.00 in SP | Not Applicable |
| Airflow @ 0.500 in SP | 775 cfm |
| Airflow @ 1.500 in SP | Not Applicable |
| Compatible Speed Control | No |
| Motor Frame Designation | 5" PSC motor |
| Motor Type | Permanent Split Capacitor |
| Mounting Orientation | Multiposition |
| Nameplate Voltage | 115/230V AC |
| Chemical Resistant | No |
| Airflow @ 1.250 in SP | Not Applicable |
| Shaft Diameter | 14 mm |
| Includes Mounting Hardware | No |
| Housing Depth | 13-1/8 in |
| Airflow @ 0.100 in SP | 960 cfm |
| For High-Static Pressure Applications | No |
| Motor Insulation Class | B |
| Airflow @ 10.00 in SP | Not Applicable |
| Hazardous Location Application | No |
| Mount Type | All Position |
| Outlet Shape | Rectangular |
| Replacement For | 4C830 |
| Airflow @ 0.375 in SP | Not Applicable |
| Airflow @ 3.000 in SP | Not Applicable |
| Airflow @ 7.000 in SP | Not Applicable |
| Frequency | 50/60 Hz |
| Airflow @ 9.000 in SP | Not Applicable |
| Airflow @ 5.000 in SP | Not Applicable |
| Airflow @ 8.000 in SP | Not Applicable |
| Airflow @ 12.00 in SP | Not Applicable |
| High-Efficiency Motor | No |
| Maximum Fan Speed | 1,080 rpm |
| Electrical Connection | Wire Leads |
| Inlet Diameter | 7 in |
| Minimum Ambient Temperature | 14 deg F |
| For Air Type | Clean Air |
| Airflow @ 11.00 in SP | Not Applicable |
| Airflow @ 0.400 in SP | 825 cfm |
| Number of Inlets | 1 |
| Motor Duty Class | Continuous |
| Corrosion Resistant | No |
| Housing Material Gauge | 1.2 mm |
| Manufacturer Warranty Length | 1 yr Limited |
| Outlet Diameter | Not Applicable |
| Maximum Inlet Air Temperature | 104 deg F |
| AMCA Fan Class | Not Rated |
| Airflow @ 6.000 in SP | Not Applicable |
| Airflow @ 4.000 in SP | Not Applicable |
| Airflow @ 0.750 in SP | Not Applicable |
| Airflow @ 2.000 in SP | Not Applicable |
| Minimum Fan Speed | 0 RPM |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 115/230 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
