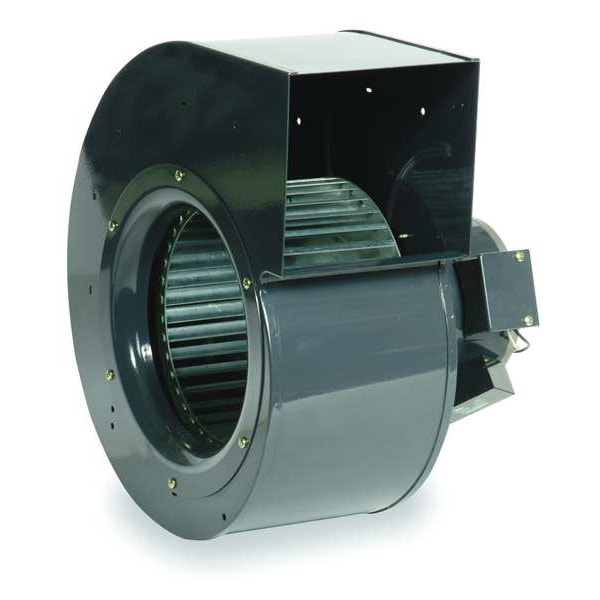

Rectangular OEM Blower, 1090 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 770 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 2.75 |
| Housing Material | Steel |
| Includes | Not Applicable |
| Inlet Dia. | 7 in |
| Number of Speeds | 1 |
| Overall Height | 14-7/8 in |
| Overall Width | 10-1/2 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | No |
| Blower Wheel Diameter | 8-1/4 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| Overall Depth | 13-1/8 in |
| Bearing Type | Ball |
| Replaces | 2C946 |
| Dimension B | 10 in |
| Outlet Width | 6-1/8 in |
| Max. Inlet Temp. | 104 deg F |
| CFM @ 0.000-In. SP | 805 |
| Dimension D | 6-5/16 in |
| Max. Ambient Temp. | 104 deg F |
| Blower Wheel Width | 4-1/16 in |
| CFM @ 0.200-In. SP | 730 |
| Mounting Position | All Position |
| CFM @ 0.600-In. SP | 562 |
| Lead Length | 13 in |
| Housing Color | Gray |
| Outlet Height | 5-1/2 in |
| RPM | 1,090 |
| Housing Finish | Enamel |
| CFM @ 0.500-In. SP | 605 |
| Motor Insulation | Class B |
| Dimension E | 14-7/8 in |
| Wheel Type | Forward-Curved |
| CFM @ 0.400-In. SP | 645 |
| Hz | 50/60 |
| Item | OEM Blower |
| CFM @ 0.700-In. SP | 485 |
| CFM @ 0.300-In. SP | 685 |
| Dimension C | 10-5/16 in |
| Dimension F | 5-1/16 in |
| Dimension A | 13-1/8 in |
| Dimension J | 2-1/4 in |
| Motor Enclosure | Open |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Maximum Fan Speed | 1,090 rpm |
| Airflow @ 0.000 in SP | 805 cfm |
| Housing Depth | 13-1/8 in |
| For High-Static Pressure Applications | No |
| Spark Resistant Construction Type | Not Rated |
| Housing Material Grade | SPCC |
| Includes Mounting Hardware | No |
| AMCA Fan Class | Not Rated |
| Wheel Diameter | 8-1/4 in |
| Airflow @ 2.500 in SP | Not Applicable |
| Airflow @ 0.500 in SP | 605 cfm |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Mount Type | All Position |
| Compatible Speed Control | No |
| For Air Type | Clean Air |
| Flange Size | Not Applicable |
| Airflow @ 1.250 in SP | Not Applicable |
| Includes Motor | Yes |
| Nameplate Voltage | 115V AC |
| Brake Horsepower | 0.1667 HP |
| Outlet Shape | Rectangular |
| Includes Drive Package | Not Applicable |
| Motor IP Rating | IP20 |
| Electrical Connection | Wire Leads |
| Airflow @ 0.400 in SP | 645 cfm |
| Airflow @ 4.000 in SP | Not Applicable |
| Airflow @ 3.500 in SP | Not Applicable |
| Motor Type | Permanent Split Capacitor |
| Mounting Orientation | Multiposition |
| Airflow @ 0.250 in SP | 711 cfm |
| Motor Location | Out of Airstream |
| Features | the Dynamically Balanced Blower Provides Smooth and Quiet Operation, the Motor Has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, The Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures |
| Motor Horsepower | 0.1667 HP |
| Wheel Material Finish | Galvanized |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Maximum Static Pressure | 0.875 in wc |
| Airflow @ 0.375 in SP | Not Applicable |
| Housing Width | 10-1/2 in |
| Minimum Fan Speed | 0 RPM |
| Airflow @ 13.00 in SP | Not Applicable |
| Rotation | CW |
| Shaft Diameter | 14 mm |
| Airflow @ 7.000 in SP | Not Applicable |
| Airflow @ 5.000 in SP | Not Applicable |
| Speed Controllable | No |
| Airflow @ 8.000 in SP | Not Applicable |
| Assembly | Assembled |
| Airflow @ 0.100 in SP | 770 cfm |
| Airflow @ 4.500 in SP | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Frequency | 50/60 Hz |
| Motor Frame Designation | 5" PSC motor |
| Maximum Ambient Temperature | 104 deg F |
| Inlet Diameter | 7 in |
| Motor Insulation Class | B |
| Current | 2.75 A |
| Wheel Width | 4 in |
| Airflow @ 1.500 in SP | Not Applicable |
| Maximum Inlet Air Temperature | 104 deg F |
| Hazardous Location Application | No |
| Housing Material Gauge | 1.2 mm |
| OEM Replacement | Yes |
| Airflow @ 0.750 in SP | Not Applicable |
| Airflow @ 0.125 in SP | Not Applicable |
| Airflow @ 6.000 in SP | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Motor Speed | 1,070 rpm |
| Sound Level | Not Rated |
| Airflow @ 9.000 in SP | Not Applicable |
| Wheel Bore Diameter | 14 mm |
| Thermal Overload Protection | Yes |
| Replacement For | 2C946 |
| Housing Height | 14-7/8 in |
| Flange Type | Non-Flanged |
| Airflow @ 10.00 in SP | Not Applicable |
| Airflow @ 3.000 in SP | Not Applicable |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Corrosion Resistant | No |
| For Location | Indoor |
| Market | Commercial, Industrial, Residential |
| Motor Duty Class | Continuous |
| Minimum Ambient Temperature | 14 deg F |
| Airflow @ 11.00 in SP | Not Applicable |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Airflow @ 2.000 in SP | Not Applicable |
| Manufacturer Warranty Length | 1 yr Limited |
| Number of Inlets | 1 |
| Housing Material Finish | Enamel |
| Airflow @ 12.00 in SP | Not Applicable |
| Airflow @ 1.000 in SP | Not Applicable |
| Outlet Diameter | Not Applicable |
| Chemical Resistant | No |
| High-Efficiency Motor | No |
| Wheel Material | Steel |
| Voltage | 115 |
| Mounting | All Position |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
