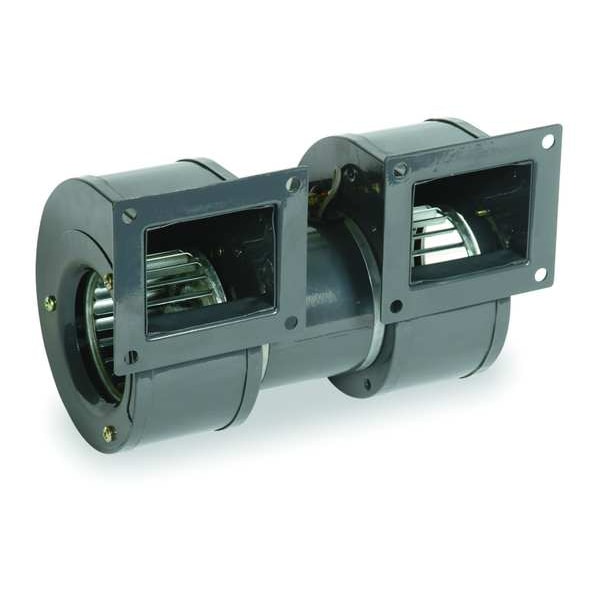

Rectangular OEM Blower, 1350 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 304 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.76 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 4-5/8 in |
| Number of Speeds | 1 |
| Overall Height | 7-7/8 in |
| Overall Width | 11 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 5-3/16 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| CFM @ 0.200-In. SP | 272 |
| Lead Length | 13 in |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Bearing Type | Ball |
| Dimension F | 3-5/16 in |
| RPM | 1,350 |
| Item | OEM Blower |
| CFM @ 0.300-In. SP | 245 |
| Dimension E | 7-7/8 in |
| Motor Enclosure | Open |
| Max. Inlet Temp. | 104 deg F |
| CFM @ 0.000-In. SP | 312 |
| CFM @ 0.500-In. SP | 142 |
| Dimension L | 4-1/8 in |
| Blower Wheel Width | 1-7/8 in |
| Housing Color | Gray |
| Max. Ambient Temp. | 104 deg F |
| Dimension A | 8-1/16 in |
| Dimension D | 3-7/16 in |
| Overall Depth | 8 in |
| Dimension C | 11 in |
| Dimension M | 1-1/2 in |
| Dimension B | 8-5/8 in |
| Outlet Width | 3-1/4 in |
| Outlet Height | 3-1/8 in |
| Motor Insulation | Class B |
| Replaces | 2C069 |
| Housing Finish | Enamel |
| CFM @ 0.400-In. SP | 210 |
| Dimension K | 4-3/4 in |
| Hz | 50/60 |
| Mounting Position | All Position |
| Wheel Type | Forward-Curved |
| Dimension J | 4-3/4 in |
| Airflow @ 0.250 in SP | 262 cfm |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Motor IP Rating | IP20 |
| Airflow @ 10.00 in SP | Not Applicable |
| Maximum Inlet Air Temperature | 104 deg F |
| Motor Type | Permanent Split Capacitor |
| Replacement For | 2C069 |
| Chemical Resistant | No |
| Wheel Width | 1-7/8 in |
| Airflow @ 4.000 in SP | Not Applicable |
| Housing Width | 11 in |
| Flange Type | Flanged |
| Airflow @ 7.000 in SP | Not Applicable |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Airflow @ 4.500 in SP | Not Applicable |
| Hazardous Location Application | No |
| Airflow @ 1.250 in SP | Not Applicable |
| Compatible Speed Control | No |
| Minimum Fan Speed | 0 RPM |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Spark Resistant Construction Type | Not Rated |
| Airflow @ 0.000 in SP | 312 cfm |
| Includes Drive Package | Not Applicable |
| For Air Type | Clean Air |
| Assembly | Assembled |
| Housing Material Gauge | 1 mm |
| Airflow @ 3.000 in SP | Not Applicable |
| Airflow @ 0.375 in SP | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Double Blower Provides Smooth and Quiet Operation |
| Brake Horsepower | 1/40 hp |
| Outlet Shape | Rectangular |
| Manufacturer Warranty Length | 1 yr Limited |
| OEM Replacement | Yes |
| Maximum Static Pressure | 0.75 in wc |
| For High-Static Pressure Applications | No |
| Rotation | CW, CCW |
| Airflow @ 13.00 in SP | Not Applicable |
| Airflow @ 3.500 in SP | Not Applicable |
| Corrosion Resistant | No |
| Wheel Diameter | 5-1/8 in |
| Maximum Fan Speed | 1,350 rpm |
| Housing Height | 7-7/8 in |
| Speed Controllable | No |
| Housing Material Grade | SPCC |
| Motor Speed | 1,380 rpm |
| Current | 0.76 A |
| Airflow @ 5.000 in SP | Not Applicable |
| Maximum Ambient Temperature | 104 deg F |
| Motor Insulation Class | B |
| Airflow @ 0.400 in SP | 210 cfm |
| Airflow @ 9.000 in SP | Not Applicable |
| Flange Size | 4-3/4 in W x 4-3/4 in H |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Motor Duty Class | Continuous |
| Electrical Connection | Wire Leads |
| Housing Material Finish | Enamel |
| Motor Horsepower | 1/40 hp |
| Airflow @ 2.500 in SP | Not Applicable |
| Includes Motor | Yes |
| Frequency | 50/60 Hz |
| Airflow @ 1.000 in SP | Not Applicable |
| Housing Depth | 8 in |
| Thermal Overload Protection | Yes |
| Wheel Bore Diameter | 8 mm |
| Airflow @ 6.000 in SP | Not Applicable |
| AMCA Fan Class | Not Rated |
| Airflow @ 0.750 in SP | Not Applicable |
| Motor Frame Designation | 3.3" PSC Motor |
| Market | Commercial, Industrial, Residential |
| Nameplate Voltage | 115V AC |
| Airflow @ 0.100 in SP | 304 cfm |
| Motor Location | Out of Airstream |
| High-Efficiency Motor | No |
| Minimum Ambient Temperature | 14 deg F |
| Resistance Properties | Corrosion Resistant |
| Airflow @ 12.00 in SP | Not Applicable |
| Wheel Material Finish | Galvanized |
| Shaft Diameter | 8 mm |
| Mount Type | All Position |
| Airflow @ 0.500 in SP | 142 cfm |
| For Location | Indoor |
| Airflow @ 11.00 in SP | Not Applicable |
| Mounting Orientation | Multiposition |
| Sound Level | Not Rated |
| Airflow @ 0.125 in SP | Not Applicable |
| Includes Mounting Hardware | No |
| Number of Inlets | 1 |
| Inlet Diameter | 4-5/8 in |
| Outlet Diameter | Not Applicable |
| Airflow @ 8.000 in SP | Not Applicable |
| Airflow @ 1.500 in SP | Not Applicable |
| Airflow @ 2.000 in SP | Not Applicable |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 115 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
