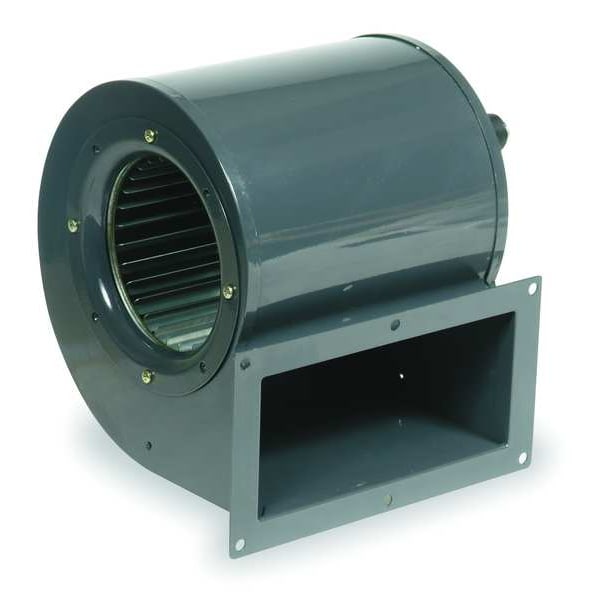

Rectangular OEM Blower, 1360/970 RPM, 1 Phase, Direct Drive, Steel 2 Speed
| CFM @ 0.100-In. SP | 780/546 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 3.30/2.20 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 5-5/16 in |
| Number of Speeds | 2 |
| Overall Height | 11-1/8 in |
| Overall Width | 9-1/4 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 6-5/16 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Dimension L | 8-3/4 in |
| Dimension C | 9-1/4 in |
| Overall Depth | 10-7/16 in |
| Max. Ambient Temp. | 104 deg F |
| Wheel Type | Forward-Curved |
| Housing Finish | Enamel |
| Dimension E | 11-1/8 in |
| CFM @ 0.400-In. SP | 680/518 |
| Replaces | 5C508 |
| CFM @ 0.000-In. SP | 797/549 |
| Outlet Width | 8 in |
| CFM @ 0.300-In. SP | 720/532 |
| Motor Insulation | Class B |
| Blower Wheel Width | 6-1/2 in |
| CFM @ 0.200-In. SP | 730/536 |
| Dimension B | 11-3/4 in |
| Motor Enclosure | Open |
| CFM @ 0.500-In. SP | 640/504 |
| Hz | 50/60 |
| Lead Length | 13 in |
| Housing Color | Gray |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| CFM @ 0.700-In. SP | 560/474 |
| Outlet Height | 4-1/4 in |
| Dimension M | 5 in |
| Max. Inlet Temp. | 104 deg F |
| Dimension F | 3-5/16 in |
| Bearing Type | Ball |
| Dimension D | 8-3/16 in |
| Dimension J | 9-3/8 in |
| CFM @ 0.600-In. SP | 620/490 |
| Mounting Position | All Position |
| RPM | 1360/970 |
| CFM @ 0.800-In. SP | 500/392 |
| Dimension A | 10-7/16 in |
| Dimension K | 5-5/8 in |
| Item | OEM Blower |
| Airflow @ 0.125 in SP | Not Applicable |
| Outlet Diameter | Not Applicable |
| High-Efficiency Motor | No |
| Airflow @ 0.500 in SP | 640 cfm |
| Airflow @ 5.000 in SP | Not Applicable |
| Airflow @ 13.00 in SP | Not Applicable |
| Number of Inlets | 2 |
| Airflow @ 0.000 in SP | 797 cfm |
| Maximum Inlet Air Temperature | 104 deg F |
| Airflow @ 1.500 in SP | Not Applicable |
| Airflow @ 3.000 in SP | Not Applicable |
| Motor Insulation Class | B |
| Wheel Bore Diameter | 8 mm |
| Airflow @ 2.000 in SP | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Wheel Diameter | 6-1/4 in |
| Spark Resistant Construction Type | Not Rated |
| Wheel Material Finish | Galvanized |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Frequency | 50/60 Hz |
| Airflow @ 10.00 in SP | Not Applicable |
| Features | The Dynamically Balanced Blower Provides Smooth and Quiet Operation, The Motor Has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, The Noise and Vibration are Held to a Minimum to Maintain Cfm at Higher Static Pressures |
| Motor Location | Out of Airstream |
| Shaft Diameter | 8 mm |
| Airflow @ 0.250 in SP | 728 cfm |
| Hazardous Location Application | No |
| AMCA Fan Class | Not Rated |
| Motor Duty Class | Continuous |
| Housing Material Gauge | 1.2 mm |
| Speed Controllable | No |
| Minimum Ambient Temperature | 14 deg F |
| Airflow @ 4.500 in SP | Not Applicable |
| Mounting Orientation | Multiposition |
| Includes Motor | Yes |
| Inlet Diameter | 5-1/4 in |
| Mount Type | All Position |
| Compatible Speed Control | No |
| Minimum Fan Speed | 0 RPM |
| Maximum Ambient Temperature | 104 deg F |
| Sound Level | Not Rated |
| Rotation | CCW |
| Replacement For | 5C508 |
| Airflow @ 0.400 in SP | 680 cfm |
| Motor Horsepower | 0.2 HP |
| Airflow @ 3.500 in SP | Not Applicable |
| Maximum Static Pressure | 1.375 in wc |
| Airflow @ 12.00 in SP | Not Applicable |
| Chemical Resistant | No |
| Airflow @ 0.375 in SP | Not Applicable |
| Brake Horsepower | 0.2 HP |
| Maximum Fan Speed | 1,360 rpm |
| For Air Type | Clean Air |
| Includes Drive Package | Not Applicable |
| Flange Type | Flanged |
| Nameplate Voltage | 115V AC |
| Manufacturer Warranty Length | 1 yr Limited |
| For High-Static Pressure Applications | No |
| Includes Mounting Hardware | No |
| Resistance Properties | Corrosion Resistant |
| Wheel Width | 6-1/2 in |
| Airflow @ 4.000 in SP | Not Applicable |
| Flange Size | 9-3/8 in W x 5-5/8 in H |
| Airflow @ 6.000 in SP | Not Applicable |
| Outlet Shape | Rectangular |
| Motor Speed | 1,350 rpm |
| Motor IP Rating | IP20 |
| For Location | Indoor |
| Airflow @ 7.000 in SP | Not Applicable |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Thermal Overload Protection | Yes |
| Assembly | Assembled |
| Market | Commercial, Industrial, Residential |
| Airflow @ 8.000 in SP | Not Applicable |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Corrosion Resistant | No |
| Housing Material Finish | Enamel |
| Motor Type | Permanent Split Capacitor |
| Airflow @ 1.000 in SP | Not Applicable |
| Airflow @ 11.00 in SP | Not Applicable |
| Motor Frame Designation | 3.3" PSC motor |
| Airflow @ 2.500 in SP | Not Applicable |
| Housing Material Grade | SPCC |
| Airflow @ 1.250 in SP | Not Applicable |
| Airflow @ 0.750 in SP | Not Applicable |
| Housing Height | 11-1/8 in |
| Current | 3.3/2.2 A |
| Housing Depth | 10-7/16 in |
| Airflow @ 0.100 in SP | 546 cfm |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Housing Width | 9-1/4 in |
| Airflow @ 9.000 in SP | Not Applicable |
| Electrical Connection | Wire Leads |
| OEM Replacement | Yes |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 115 |
| Type | 2 Speed |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
