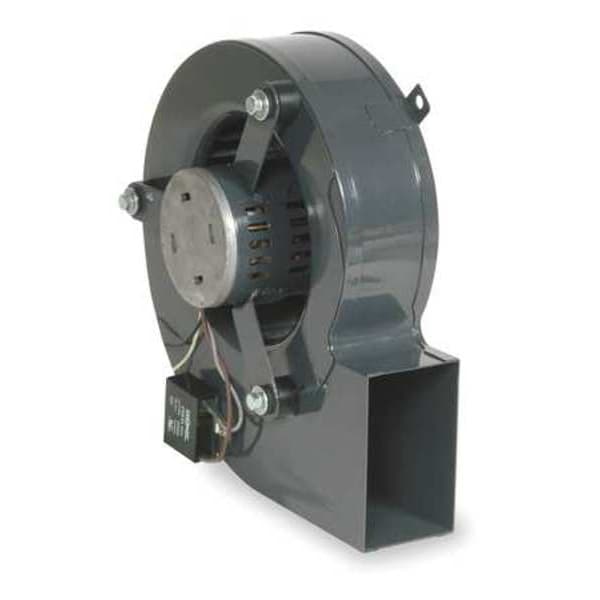

Rectangular OEM Blower, 1400 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 220 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 1.05 |
| Housing Material | Steel |
| Includes | Not Applicable |
| Inlet Dia. | 5-3/8 in |
| Number of Speeds | 1 |
| Overall Height | 11 in |
| Overall Width | 4-1/8 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | No |
| Blower Wheel Diameter | 7 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Max. Inlet Temp. | 104 deg F |
| Replaces | 4C754 |
| Mounting Position | All Position |
| CFM @ 0.000-In. SP | 229 |
| Overall Depth | 10-1/4 in |
| Outlet Width | 2-1/2 in |
| Dimension D | 2-5/8 in |
| Bearing Type | Ball |
| Housing Finish | Enamel |
| CFM @ 0.300-In. SP | 205 |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Motor Insulation | Class B |
| Item | OEM Blower |
| RPM | 1,400 |
| Motor Enclosure | Open |
| Max. Ambient Temp. | 104 deg F |
| Housing Color | Gray |
| Dimension A | 10-5/16 in |
| Dimension F | 3-3/8 in |
| CFM @ 0.200-In. SP | 213 |
| Blower Wheel Width | 1-7/8 in |
| Dimension C | 4 in |
| CFM @ 0.500-In. SP | 184 |
| Hz | 50/60 |
| Dimension J | 2-1/4 in |
| Outlet Height | 4-3/16 in |
| Dimension B | 10 in |
| CFM @ 0.400-In. SP | 198 |
| Wheel Type | Forward-Curved |
| Lead Length | 13 in |
| Dimension E | 11-1/16 in |
| Replacement For | 4C754 |
| Airflow @ 1.250 in SP | Not Applicable |
| Speed Controllable | No |
| Market | Commercial, Industrial, Residential |
| Motor Type | Permanent Split Capacitor |
| Compatible Speed Control | No |
| Flange Size | Not Applicable |
| Number of Inlets | 1 |
| Motor Speed | 1,400 rpm |
| Wheel Material Finish | Galvanized |
| Spark Resistant Construction Type | Not Rated |
| Flange Type | Non-Flanged |
| OEM Replacement | Yes |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| For Location | Indoor |
| Mounting Orientation | Multiposition |
| Motor Insulation Class | B |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| For High-Static Pressure Applications | No |
| Airflow @ 0.750 in SP | Not Applicable |
| Airflow @ 0.125 in SP | Not Applicable |
| Airflow @ 13.00 in SP | Not Applicable |
| Housing Width | 4-1/8 in |
| Hazardous Location Application | No |
| Airflow @ 11.00 in SP | Not Applicable |
| Inlet Diameter | 5-3/8 in |
| High-Efficiency Motor | No |
| Wheel Width | 1-7/8 in |
| Airflow @ 3.500 in SP | Not Applicable |
| Airflow @ 1.500 in SP | Not Applicable |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Hazardous Location Specification | Not Applicable |
| Includes Motor | Yes |
| Corrosion Resistant | No |
| Shaft Diameter | 8 mm |
| Wheel Bore Diameter | 8 mm |
| Wheel Diameter | 7 in |
| Airflow @ 2.000 in SP | Not Applicable |
| Current | 1.05 A |
| Airflow @ 6.000 in SP | Not Applicable |
| Chemical Resistant | No |
| Thermal Overload Protection | Yes |
| Airflow @ 0.375 in SP | Not Applicable |
| Electrical Connection | Wire Leads |
| Resistance Properties | Corrosion Resistant |
| For Air Type | Clean Air |
| Manufacturer Warranty Length | 1 yr Limited |
| Outlet Shape | Rectangular |
| Airflow @ 1.000 in SP | Not Applicable |
| Airflow @ 9.000 in SP | Not Applicable |
| Brake Horsepower | 1/20 hp |
| Outlet Diameter | Not Applicable |
| Airflow @ 0.100 in SP | 220 cfm |
| Airflow @ 0.500 in SP | 184 cfm |
| Motor Location | Out of Airstream |
| Includes Mounting Hardware | No |
| Minimum Ambient Temperature | 14 deg F |
| Airflow @ 10.00 in SP | Not Applicable |
| Nameplate Voltage | 115V AC |
| Airflow @ 5.000 in SP | Not Applicable |
| Airflow @ 0.000 in SP | 229 cfm |
| Mount Type | All Position |
| Airflow @ 2.500 in SP | Not Applicable |
| Airflow @ 0.400 in SP | 198 cfm |
| Airflow @ 4.500 in SP | Not Applicable |
| Motor Frame Designation | 3.3" PSC Motor |
| Housing Height | 11 in |
| Airflow @ 4.000 in SP | Not Applicable |
| Sound Level | Not Rated |
| Includes Drive Package | Not Applicable |
| Housing Material Grade | SPCC |
| Motor Duty Class | Continuous |
| Minimum Fan Speed | 0 RPM |
| Assembly | Assembled |
| Maximum Ambient Temperature | 104 deg F |
| Rotation | CCW |
| Maximum Static Pressure | 1 in wc |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Maximum Inlet Air Temperature | 104 deg F |
| Frequency | 50/60 Hz |
| Motor Horsepower | 1/20 hp |
| Maximum Fan Speed | 1,400 rpm |
| Airflow @ 0.250 in SP | 207 cfm |
| Motor IP Rating | IP20 |
| Housing Material Finish | Enamel |
| Airflow @ 12.00 in SP | Not Applicable |
| Airflow @ 7.000 in SP | Not Applicable |
| Airflow @ 3.000 in SP | Not Applicable |
| Airflow @ 8.000 in SP | Not Applicable |
| AMCA Fan Class | Not Rated |
| Housing Material Gauge | 1 mm |
| Housing Depth | 10-1/4 in |
| Wheel Material | Steel |
| Voltage | 115 |
| Mounting | All Position |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
