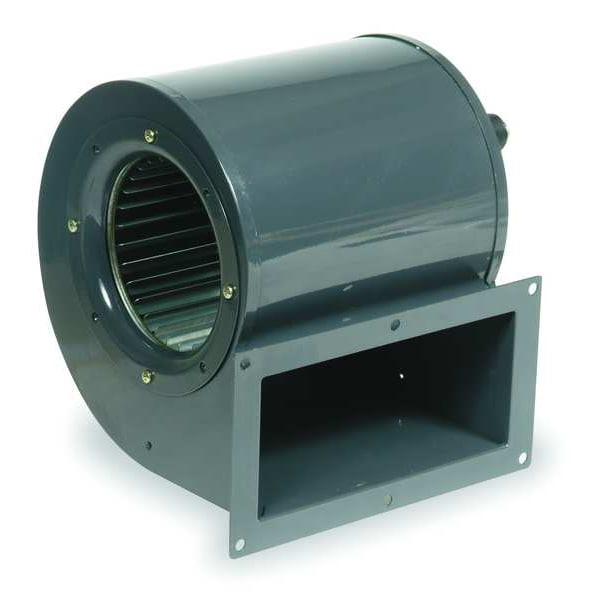

Rectangular OEM Blower, 1500/1085 RPM, 1 Phase, Direct Drive, Steel 2 Speed
| CFM @ 0.100-In. SP | 405/290 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 1.10/0.85 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 4-9/16 in |
| Number of Speeds | 2 |
| Overall Height | 9-7/8 in |
| Overall Width | 8-15/16 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 5-1/8 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| RPM | 1500/1085 |
| Hz | 50/60 |
| Dimension L | 8-13/16 in |
| CFM @ 0.200-In. SP | 370/285 |
| CFM @ 0.500-In. SP | 150/130 |
| Housing Finish | Enamel |
| Dimension B | 10-1/2 in |
| Dimension D | 8-3/16 in |
| Dimension E | 9-7/8 in |
| Item | OEM Blower |
| Motor Enclosure | Open |
| Max. Ambient Temp. | 104 deg F |
| Housing Color | Gray |
| Lead Length | 13 in |
| Dimension J | 9-7/16 in |
| CFM @ 0.300-In. SP | 330/260 |
| Bearing Type | Ball |
| Mounting Position | All Position |
| Replaces | 4C565 |
| CFM @ 0.000-In. SP | 428/293 |
| Outlet Width | 7-3/4 in |
| Dimension F | 3-5/16 in |
| Dimension M | 4-3/8 in |
| Overall Depth | 8-15/16 in |
| Wheel Type | Forward-Curved |
| Max. Inlet Temp. | 104 deg F |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Dimension K | 5 in |
| Dimension A | 8-7/8 in |
| CFM @ 0.600-In. SP | 70/30 |
| CFM @ 0.400-In. SP | 225/188 |
| Dimension C | 9-1/4 in |
| Outlet Height | 3-1/2 in |
| Motor Insulation | Class B |
| Blower Wheel Width | 7 in |
| Airflow @ 9.000 in SP | Not Applicable |
| Speed Controllable | No |
| Housing Height | 9-3/8 in |
| Includes Drive Package | Not Applicable |
| Motor Type | Permanent Split Capacitor |
| Motor Speed | 1,500 rpm |
| Airflow @ 1.500 in SP | Not Applicable |
| Motor Frame Designation | 3.3" PSC motor |
| Airflow @ 0.100 in SP | 405 cfm |
| Airflow @ 8.000 in SP | Not Applicable |
| Includes Motor | Yes |
| Motor Insulation Class | B |
| For Location | Indoor |
| Chemical Resistant | No |
| Frequency | 50/60 Hz |
| Airflow @ 0.250 in SP | 353 cfm |
| Airflow @ 2.500 in SP | Not Applicable |
| Inlet Diameter | 4-1/2 in |
| Airflow @ 4.000 in SP | Not Applicable |
| Minimum Fan Speed | 0 RPM |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Flange Size | 9-7/16 in W x 5 in H |
| Nameplate Voltage | 115V AC |
| Airflow @ 13.00 in SP | Not Applicable |
| Outlet Shape | Rectangular |
| OEM Replacement | Yes |
| Assembly | Assembled |
| Airflow @ 6.000 in SP | Not Applicable |
| Brake Horsepower | 1/15 hp |
| Resistance Properties | Corrosion Resistant |
| Airflow @ 4.500 in SP | Not Applicable |
| Airflow @ 0.000 in SP | 428 cfm |
| Corrosion Resistant | No |
| Maximum Static Pressure | 0.625 in wc |
| Sound Level | Not Rated |
| Airflow @ 2.000 in SP | Not Applicable |
| Airflow @ 3.500 in SP | Not Applicable |
| Wheel Bore Diameter | 8 mm |
| Number of Inlets | 2 |
| Airflow @ 0.125 in SP | Not Applicable |
| Features | The Dynamically Balanced Blower Provides Smooth and Quiet Operation, The Motor Has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, The Noise and Vibration are Held to a Minimum to Maintain Cfm at Higher Static Pressures |
| Airflow @ 1.000 in SP | Not Applicable |
| AMCA Fan Class | Not Rated |
| Airflow @ 12.00 in SP | Not Applicable |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Hazardous Location Specification | Not Applicable |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Minimum Ambient Temperature | 14 deg F |
| Airflow @ 0.400 in SP | 225 cfm |
| Shaft Diameter | 8 mm |
| Housing Material Grade | SPCC |
| Thermal Overload Protection | Yes |
| Housing Material Finish | Enamel |
| Hazardous Location Application | No |
| Maximum Inlet Air Temperature | 104 deg F |
| Maximum Fan Speed | 1,500 rpm |
| Manufacturer Warranty Length | 1 yr Limited |
| Rotation | CCW |
| Wheel Width | 7 in |
| Motor Duty Class | Continuous |
| Motor IP Rating | IP20 |
| Airflow @ 0.375 in SP | Not Applicable |
| Airflow @ 11.00 in SP | Not Applicable |
| High-Efficiency Motor | No |
| Outlet Diameter | Not Applicable |
| Airflow @ 0.500 in SP | 150 cfm |
| Includes Mounting Hardware | No |
| Motor Horsepower | 1/15 hp |
| Spark Resistant Construction Type | Not Rated |
| For High-Static Pressure Applications | No |
| Airflow @ 10.00 in SP | Not Applicable |
| Mount Type | All Position |
| Flange Type | Flanged |
| Airflow @ 1.250 in SP | Not Applicable |
| Replacement For | 4C565 |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Airflow @ 3.000 in SP | Not Applicable |
| Wheel Diameter | 5-1/8 in |
| For Air Type | Clean Air |
| Current | 1.10/0.85 A |
| Mounting Orientation | Multiposition |
| Airflow @ 5.000 in SP | Not Applicable |
| Airflow @ 7.000 in SP | Not Applicable |
| Maximum Ambient Temperature | 104 deg F |
| Wheel Material Finish | Galvanized |
| Housing Depth | 8-1/2 in |
| Motor Location | Out of Airstream |
| Electrical Connection | Wire Leads |
| Market | Commercial, Industrial, Residential |
| Airflow @ 0.750 in SP | Not Applicable |
| Compatible Speed Control | No |
| Housing Width | 9-1/4 in |
| Housing Material Gauge | 1 mm |
| Wheel Material | Steel |
| Voltage | 115 |
| Mounting | All Position |
| Type | 2 Speed |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
