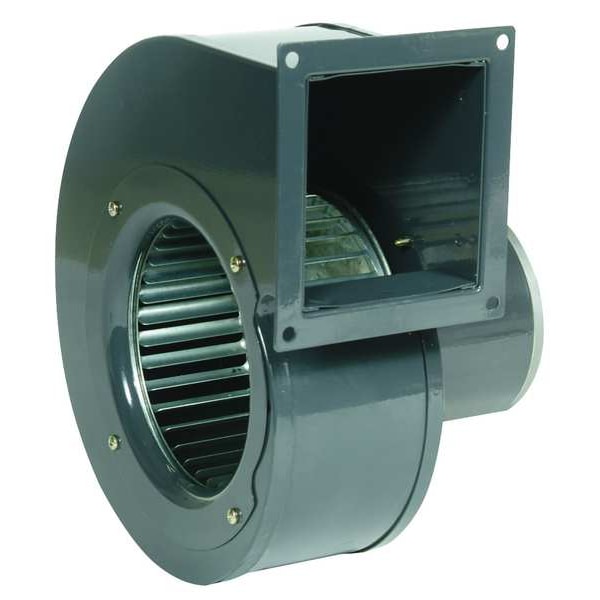

Rectangular OEM Blower, 1550 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 350 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.54 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 5-5/16 in |
| Number of Speeds | 1 |
| Overall Height | 11-1/8 in |
| Overall Width | 7-5/8 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 6-3/16 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 230V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| Dimension B | 11-3/4 in |
| Item | OEM Blower |
| Outlet Width | 3-3/4 in |
| Blower Wheel Width | 1-7/8 in |
| CFM @ 0.800-In. SP | 180 |
| Bearing Type | Ball |
| CFM @ 0.400-In. SP | 300 |
| Overall Depth | 10-7/16 in |
| CFM @ 0.700-In. SP | 235 |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Dimension M | 5 in |
| Max. Ambient Temp. | 104 deg F |
| Hz | 50/60 |
| Dimension K | 5-5/8 in |
| Wheel Type | Forward-Curved |
| RPM | 1,550 |
| Dimension A | 10-7/16 in |
| CFM @ 0.200-In. SP | 330 |
| Lead Length | 13 in |
| Dimension L | 4-1/2 in |
| CFM @ 0.500-In. SP | 280 |
| Mounting Position | All Position |
| Dimension C | 7-5/8 in |
| Max. Inlet Temp. | 104 deg F |
| Housing Finish | Enamel |
| Motor Insulation | Class B |
| CFM @ 0.600-In. SP | 258 |
| Motor Enclosure | Open |
| Dimension F | 4-7/16 in |
| Dimension D | 4 in |
| Housing Color | Gray |
| CFM @ 0.000-In. SP | 358 |
| Outlet Height | 4-1/4 in |
| Replaces | 2C917 |
| Dimension E | 11-1/8 in |
| Dimension J | 5-1/16 in |
| CFM @ 0.300-In. SP | 310 |
| Airflow @ 1.000 in SP | Not Applicable |
| Sound Level | Not Rated |
| Compatible Speed Control | No |
| Mounting Orientation | Multiposition |
| Wheel Bore Diameter | 12 mm |
| Manufacturer Warranty Length | 1 yr Limited |
| Thermal Overload Protection | Yes |
| Motor Location | Out of Airstream |
| Airflow @ 0.750 in SP | Not Applicable |
| Airflow @ 0.000 in SP | 358 cfm |
| OEM Replacement | Yes |
| Features | The Dynamically Balanced Blower Provides Smooth and Quiet Operation, the Motor Has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, the Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures |
| Outlet Diameter | Not Applicable |
| Motor IP Rating | IP20 |
| Airflow @ 11.00 in SP | Not Applicable |
| Spark Resistant Construction Type | Not Rated |
| Motor Insulation Class | B |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Motor Frame Designation | 4.4" PSC motor |
| Includes Mounting Hardware | No |
| Shaft Diameter | 12 mm |
| High-Efficiency Motor | No |
| Minimum Fan Speed | 0 RPM |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Motor Speed | 1,530 rpm |
| Hazardous Location Specification | Not Applicable |
| Wheel Material Finish | Galvanized |
| Maximum Inlet Air Temperature | 104 deg F |
| Airflow @ 4.500 in SP | Not Applicable |
| AMCA Fan Class | Not Rated |
| Number of Inlets | 1 |
| Frequency | 50/60 Hz |
| Housing Width | 7-5/8 in |
| Nameplate Voltage | 230V AC |
| Hazardous Location Application | No |
| Electrical Connection | Wire Leads |
| Airflow @ 6.000 in SP | Not Applicable |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Airflow @ 3.000 in SP | Not Applicable |
| For Location | Indoor |
| Housing Height | 11-1/8 in |
| Replacement For | 2C917 |
| Maximum Ambient Temperature | 104 deg F |
| Resistance Properties | Corrosion Resistant |
| Airflow @ 3.500 in SP | Not Applicable |
| Market | Commercial, Industrial, Residential |
| Airflow @ 7.000 in SP | Not Applicable |
| Airflow @ 0.100 in SP | 350 cfm |
| Airflow @ 9.000 in SP | Not Applicable |
| Wheel Width | 1-7/8 in |
| Airflow @ 2.000 in SP | Not Applicable |
| Motor Type | Permanent Split Capacitor |
| Includes Motor | Yes |
| Speed Controllable | No |
| Airflow @ 0.400 in SP | 300 cfm |
| Flange Size | 5-1/16 in W x 5-5/8 in H |
| Corrosion Resistant | No |
| Airflow @ 0.500 in SP | 280 cfm |
| Mount Type | All Position |
| Airflow @ 1.500 in SP | Not Applicable |
| Airflow @ 0.250 in SP | 321 cfm |
| Minimum Ambient Temperature | 14 deg F |
| Airflow @ 0.375 in SP | Not Applicable |
| Airflow @ 0.125 in SP | Not Applicable |
| Inlet Diameter | 5-1/4 in |
| Rotation | CW |
| Current | 0.54 A |
| Assembly | Assembled |
| Brake Horsepower | 0.1 HP |
| Flange Type | Flanged |
| Wheel Diameter | 6-1/8 in |
| For High-Static Pressure Applications | No |
| Maximum Fan Speed | 1,550 rpm |
| Airflow @ 13.00 in SP | Not Applicable |
| Airflow @ 12.00 in SP | Not Applicable |
| Chemical Resistant | No |
| Airflow @ 4.000 in SP | Not Applicable |
| Airflow @ 5.000 in SP | Not Applicable |
| Maximum Static Pressure | 1 in wc |
| Housing Material Finish | Enamel |
| Housing Depth | 10-7/16 in |
| Airflow @ 8.000 in SP | Not Applicable |
| Includes Drive Package | Not Applicable |
| Airflow @ 2.500 in SP | Not Applicable |
| Airflow @ 10.00 in SP | Not Applicable |
| Airflow @ 1.250 in SP | Not Applicable |
| Motor Duty Class | Continuous |
| For Air Type | Clean Air |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Housing Material Gauge | 1.2 mm |
| Housing Material Grade | SPCC |
| Motor Horsepower | 0.1 HP |
| Outlet Shape | Rectangular |
| Wheel Material | Steel |
| Voltage | 230 |
| Mounting | All Position |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
