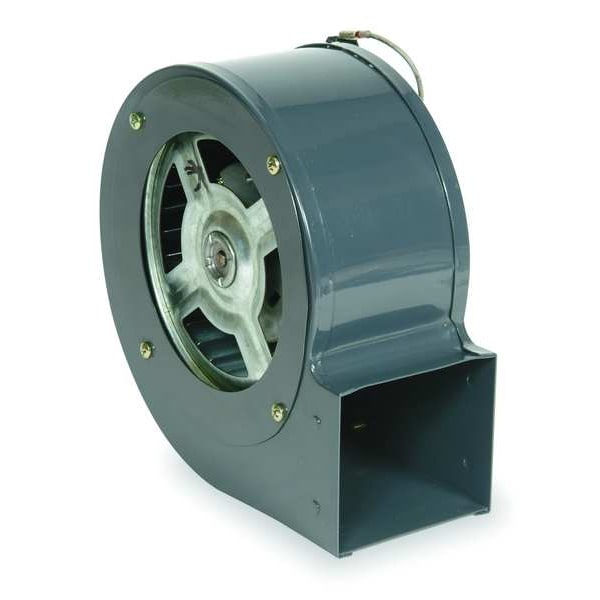

Rectangular OEM Blower, 1580 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 70 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.5 |
| Housing Material | Steel |
| Includes | Not Applicable |
| Inlet Dia. | 4-3/4 in |
| Number of Speeds | 1 |
| Overall Height | 7-7/8 in |
| Overall Width | 3-7/8 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | No |
| Blower Wheel Diameter | 5-11/16 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| CFM @ 0.000-In. SP | 71 |
| Item | OEM Blower |
| CFM @ 0.200-In. SP | 64 |
| Motor Insulation | Class B |
| Blower Wheel Width | 1-7/8 in |
| Lead Length | 13 in |
| Replaces | 2C067 |
| Bearing Type | Ball |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Outlet Height | 2-15/16 in |
| Dimension C | 3-7/8 in |
| Overall Depth | 7-15/16 in |
| Dimension J | 2-1/4 in |
| Dimension B | 10 in |
| Motor Enclosure | Open |
| Dimension D | 3-3/8 in |
| Mounting Position | All Position |
| RPM | 1,580 |
| Housing Color | Gray |
| CFM @ 0.400-In. SP | 37 |
| Wheel Type | Forward-Curved |
| Max. Ambient Temp. | 104 deg F |
| Hz | 50/60 |
| Outlet Width | 3-1/4 in |
| Max. Inlet Temp. | 104 deg F |
| Dimension F | 3-5/16 in |
| Housing Finish | Enamel |
| Dimension E | 7-7/8 in |
| Dimension A | 7-15/16 in |
| CFM @ 0.300-In. SP | 50 |
| Airflow @ 5.000 in SP | Not Applicable |
| Chemical Resistant | No |
| Thermal Overload Protection | Yes |
| Airflow @ 3.500 in SP | Not Applicable |
| Airflow @ 13.00 in SP | Not Applicable |
| Airflow @ 8.000 in SP | Not Applicable |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, The Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Outlet Shape | Rectangular |
| Airflow @ 0.100 in SP | 70 cfm |
| Airflow @ 2.500 in SP | Not Applicable |
| Hazardous Location Application | No |
| Rotation | CCW |
| Airflow @ 0.400 in SP | 37 cfm |
| Outlet Diameter | Not Applicable |
| Motor Type | Permanent Split Capacitor |
| Minimum Ambient Temperature | 14 deg F |
| Hazardous Location Specification | Not Applicable |
| Spark Resistant Construction Type | Not Rated |
| Frequency | 50/60 Hz |
| Resistance Properties | Corrosion Resistant |
| Motor IP Rating | IP20 |
| Airflow @ 2.000 in SP | Not Applicable |
| OEM Replacement | Yes |
| Airflow @ 0.500 in SP | Not Applicable |
| Housing Material Grade | SPCC |
| Corrosion Resistant | No |
| Airflow @ 1.500 in SP | Not Applicable |
| Airflow @ 4.500 in SP | Not Applicable |
| Replacement For | 2C067 |
| Housing Material Finish | Enamel |
| Maximum Ambient Temperature | 104 deg F |
| Current | 0.5 A |
| Housing Width | 3-7/8 in |
| Wheel Diameter | 5-5/8 in |
| Electrical Connection | Wire Leads |
| Flange Type | Non-Flanged |
| Maximum Inlet Air Temperature | 104 deg F |
| Airflow @ 1.000 in SP | Not Applicable |
| Compatible Speed Control | No |
| Minimum Fan Speed | 0 RPM |
| Airflow @ 4.000 in SP | Not Applicable |
| Housing Material Gauge | 1 mm |
| Motor Location | Out of Airstream |
| Manufacturer Warranty Length | 1 yr Limited |
| Includes Motor | Yes |
| Airflow @ 6.000 in SP | Not Applicable |
| Flange Size | Not Applicable |
| Wheel Material Finish | Galvanized |
| Maximum Static Pressure | 0.5 in wc |
| Inlet Diameter | 4-3/4 in |
| Mounting Orientation | Multiposition |
| Airflow @ 9.000 in SP | Not Applicable |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Housing Depth | 7-15/16 in |
| For High-Static Pressure Applications | No |
| Nameplate Voltage | 115V AC |
| Number of Inlets | 1 |
| Airflow @ 10.00 in SP | Not Applicable |
| Motor Insulation Class | B |
| Airflow @ 0.750 in SP | Not Applicable |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Airflow @ 1.250 in SP | Not Applicable |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Includes Mounting Hardware | No |
| Airflow @ 7.000 in SP | Not Applicable |
| Motor Frame Designation | 3.3" PSC Motor |
| Airflow @ 3.000 in SP | Not Applicable |
| Motor Horsepower | 0.01 HP |
| Speed Controllable | No |
| For Air Type | Clean Air |
| For Location | Indoor |
| High-Efficiency Motor | No |
| Market | Commercial, Industrial, Residential |
| Airflow @ 11.00 in SP | Not Applicable |
| Motor Speed | 1,600 rpm |
| Housing Height | 7-7/8 in |
| Assembly | Assembled |
| Airflow @ 0.250 in SP | 56 cfm |
| Wheel Width | 1-7/8 in |
| Maximum Fan Speed | 1,580 rpm |
| Motor Duty Class | Continuous |
| Airflow @ 12.00 in SP | Not Applicable |
| Airflow @ 0.125 in SP | Not Applicable |
| Sound Level | Not Rated |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Airflow @ 0.375 in SP | Not Applicable |
| Airflow @ 0.000 in SP | 71 cfm |
| Brake Horsepower | 0.01 HP |
| Wheel Bore Diameter | 8 mm |
| Shaft Diameter | 8 mm |
| Mount Type | All Position |
| AMCA Fan Class | Not Rated |
| Includes Drive Package | Not Applicable |
| Wheel Material | Steel |
| Voltage | 115 |
| Mounting | All Position |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
