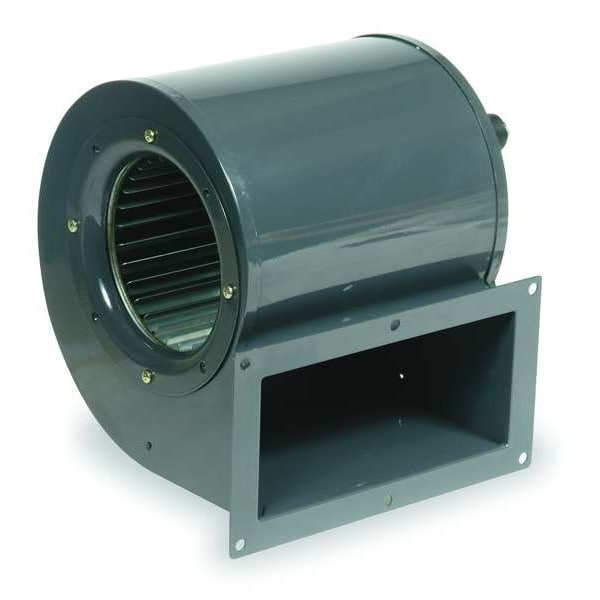

Rectangular OEM Blower, 1595 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 430 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.65 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 4-9/16 in |
| Number of Speeds | 1 |
| Overall Height | 9-7/8 in |
| Overall Width | 9-1/8 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 5-1/8 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 230V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Mounting Position | All Position |
| Dimension L | 8-13/16 in |
| CFM @ 0.200-In. SP | 383 |
| Housing Color | Gray |
| Motor Insulation | Class B |
| Dimension A | 8-7/8 in |
| Hz | 50/60 |
| Bearing Type | Ball |
| CFM @ 0.300-In. SP | 338 |
| Wheel Type | Forward-Curved |
| Overall Depth | 8-7/8 in |
| Dimension C | 9-1/8 in |
| CFM @ 0.000-In. SP | 458 |
| CFM @ 0.500-In. SP | 140 |
| Max. Inlet Temp. | 104 deg F |
| Dimension M | 4-3/8 in |
| Lead Length | 13 in |
| Dimension K | 5 in |
| CFM @ 0.600-In. SP | 63 |
| Max. Ambient Temp. | 104 deg F |
| Housing Finish | Enamel |
| Outlet Width | 7-3/4 in |
| Motor Enclosure | Open |
| Dimension J | 9-7/16 in |
| Replaces | 5C507 |
| Dimension D | 8-1/16 in |
| Dimension E | 9-7/8 in |
| Dimension B | 10-1/2 in |
| Outlet Height | 3-7/16 in |
| RPM | 1,595 |
| Dimension F | 3-5/16 in |
| Blower Wheel Width | 7 in |
| Item | OEM Blower |
| CFM @ 0.400-In. SP | 263 |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Airflow @ 0.400 in SP | 263 cfm |
| Airflow @ 9.000 in SP | Not Applicable |
| OEM Replacement | Yes |
| Hazardous Location Application | No |
| Airflow @ 0.375 in SP | Not Applicable |
| Features | the Dynamically Balanced Blower Provides Smooth and Quiet Operation, the Motor Has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, The Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures |
| Airflow @ 7.000 in SP | Not Applicable |
| High-Efficiency Motor | No |
| Chemical Resistant | No |
| For High-Static Pressure Applications | No |
| Flange Size | 9-7/16 in W x 5 in H |
| Housing Material Grade | SPCC |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Maximum Ambient Temperature | 104 deg F |
| For Location | Indoor |
| Motor Location | Out of Airstream |
| Housing Material Gauge | 1 mm |
| Airflow @ 1.000 in SP | Not Applicable |
| Includes Drive Package | Not Applicable |
| Airflow @ 0.125 in SP | Not Applicable |
| Airflow @ 4.000 in SP | Not Applicable |
| Inlet Diameter | 4-1/2 in |
| Minimum Fan Speed | 0 RPM |
| Corrosion Resistant | No |
| Motor Frame Designation | 3.3" PSC Motor |
| Airflow @ 5.000 in SP | Not Applicable |
| Brake Horsepower | 1/15 hp |
| Market | Commercial, Industrial, Residential |
| Airflow @ 0.750 in SP | Not Applicable |
| Motor Horsepower | 1/15 hp |
| Airflow @ 0.000 in SP | 458 cfm |
| Speed Controllable | No |
| Airflow @ 10.00 in SP | Not Applicable |
| Electrical Connection | Wire Leads |
| Housing Height | 9-7/8 in |
| Outlet Diameter | Not Applicable |
| Minimum Ambient Temperature | 14 deg F |
| Outlet Shape | Rectangular |
| Airflow @ 0.100 in SP | 430 cfm |
| Maximum Inlet Air Temperature | 104 deg F |
| Airflow @ 2.500 in SP | Not Applicable |
| Number of Inlets | 2 |
| Compatible Speed Control | No |
| Wheel Width | 7 in |
| Thermal Overload Protection | Yes |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Mounting Orientation | Multiposition |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Flange Type | Flanged |
| Airflow @ 8.000 in SP | Not Applicable |
| Motor Type | Permanent Split Capacitor |
| Airflow @ 13.00 in SP | Not Applicable |
| Housing Width | 9-1/8 in |
| For Air Type | Clean Air |
| Current | 0.65 A |
| Wheel Diameter | 5-1/8 in |
| Airflow @ 11.00 in SP | Not Applicable |
| Motor Speed | 1,560 rpm |
| Sound Level | Not Rated |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Spark Resistant Construction Type | Not Rated |
| Replacement For | 5C507 |
| Mount Type | All Position |
| Airflow @ 12.00 in SP | Not Applicable |
| Assembly | Assembled |
| Housing Depth | 8-7/8 in |
| Airflow @ 1.250 in SP | Not Applicable |
| Includes Motor | Yes |
| Motor Duty Class | Continuous |
| Airflow @ 0.250 in SP | 362 cfm |
| Housing Material Finish | Enamel |
| Wheel Bore Diameter | 8 mm |
| AMCA Fan Class | Not Rated |
| Airflow @ 3.500 in SP | Not Applicable |
| Nameplate Voltage | 230V AC |
| Rotation | CCW |
| Airflow @ 3.000 in SP | Not Applicable |
| Airflow @ 4.500 in SP | Not Applicable |
| Maximum Fan Speed | 1,595 rpm |
| Hazardous Location Specification | Not Applicable |
| Motor Insulation Class | B |
| Motor IP Rating | IP20 |
| Airflow @ 6.000 in SP | Not Applicable |
| Wheel Material Finish | Galvanized |
| Airflow @ 0.500 in SP | 140 cfm |
| Resistance Properties | Corrosion Resistant |
| Manufacturer Warranty Length | 1 yr Limited |
| Frequency | 50/60 Hz |
| Airflow @ 1.500 in SP | Not Applicable |
| Airflow @ 2.000 in SP | Not Applicable |
| Maximum Static Pressure | 0.625 in wc |
| Shaft Diameter | 8 mm |
| Includes Mounting Hardware | No |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 230 |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
