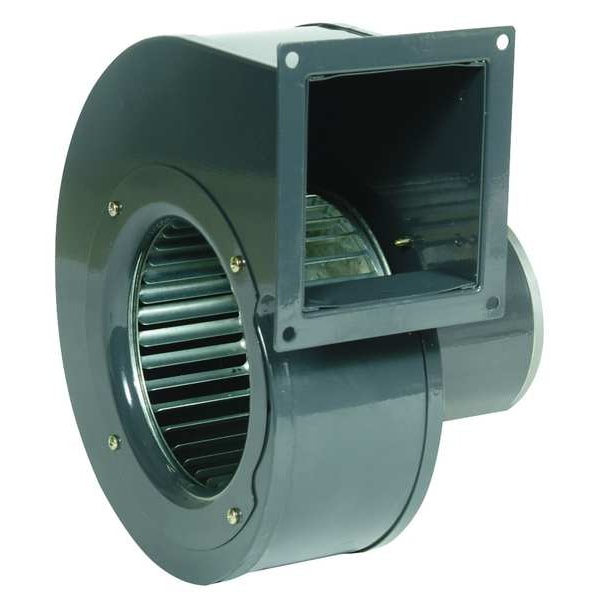

Rectangular OEM Blower, 1600 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 540 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.98 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 5-5/16 in |
| Number of Speeds | 1 |
| Overall Height | 11-1/8 in |
| Overall Width | 9-3/16 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 6-1/4 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 230V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| Dimension M | 5 in |
| Dimension K | 5-5/8 in |
| Overall Depth | 10-7/16 in |
| Mounting Position | All Position |
| Max. Inlet Temp. | 104 deg F |
| CFM @ 0.800-In. SP | 360 |
| Dimension A | 10-7/16 in |
| Dimension F | 4-7/16 in |
| RPM | 1,600 |
| Item | OEM Blower |
| Dimension C | 9-3/16 in |
| CFM @ 0.200-In. SP | 525 |
| Dimension E | 11-1/8 in |
| Motor Insulation | Class B |
| Housing Color | Gray |
| Bearing Type | Ball |
| Blower Wheel Width | 3-3/16 in |
| Housing Finish | Enamel |
| Dimension L | 6 in |
| Dimension J | 6-5/8 in |
| CFM @ 0.000-In. SP | 559 |
| CFM @ 0.700-In. SP | 390 |
| CFM @ 0.400-In. SP | 480 |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Replaces | 4C870 |
| Outlet Height | 4-1/4 in |
| Motor Enclosure | Open |
| Dimension B | 11-13/16 in |
| Dimension D | 5-1/2 in |
| CFM @ 0.600-In. SP | 430 |
| Hz | 50/60 |
| Max. Ambient Temp. | 104 deg F |
| Outlet Width | 5-1/4 in |
| CFM @ 0.300-In. SP | 510 |
| Wheel Type | Forward-Curved |
| CFM @ 0.500-In. SP | 450 |
| Lead Length | 13 in |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Airflow @ 1.250 in SP | Not Applicable |
| Chemical Resistant | No |
| Mount Type | All Position |
| Motor IP Rating | IP20 |
| Airflow @ 0.375 in SP | Not Applicable |
| Features | the Dynamically Balanced Blower Provides Smooth and Quiet Operation, the Motor Has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, The Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures |
| Includes Mounting Hardware | No |
| Current | 0.98 A |
| Airflow @ 4.500 in SP | Not Applicable |
| Wheel Width | 3-3/16 in |
| High-Efficiency Motor | No |
| Airflow @ 3.500 in SP | Not Applicable |
| Compatible Speed Control | No |
| Housing Height | 11-1/8 in |
| Airflow @ 13.00 in SP | Not Applicable |
| Includes Drive Package | Not Applicable |
| Airflow @ 11.00 in SP | Not Applicable |
| Airflow @ 0.250 in SP | 527 cfm |
| Frequency | 50/60 Hz |
| Speed Controllable | No |
| Airflow @ 6.000 in SP | Not Applicable |
| Airflow @ 1.000 in SP | Not Applicable |
| Airflow @ 3.000 in SP | Not Applicable |
| Hazardous Location Application | No |
| Outlet Shape | Rectangular |
| Housing Material Grade | SPCC |
| Maximum Fan Speed | 1,600 rpm |
| Mounting Orientation | Multiposition |
| Airflow @ 2.500 in SP | Not Applicable |
| Number of Inlets | 1 |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Airflow @ 1.500 in SP | Not Applicable |
| Shaft Diameter | 12 mm |
| For Air Type | Clean Air |
| Wheel Material Finish | Galvanized |
| Airflow @ 0.125 in SP | Not Applicable |
| Maximum Inlet Air Temperature | 104 deg F |
| Airflow @ 0.400 in SP | 480 cfm |
| Manufacturer Warranty Length | 1 yr Limited |
| Resistance Properties | Corrosion Resistant |
| Spark Resistant Construction Type | Not Rated |
| Motor Horsepower | 0.1 HP |
| Airflow @ 12.00 in SP | Not Applicable |
| Housing Width | 9-3/16 in |
| Airflow @ 10.00 in SP | Not Applicable |
| Inlet Diameter | 5-1/4 in |
| Thermal Overload Protection | Yes |
| Airflow @ 7.000 in SP | Not Applicable |
| Electrical Connection | Wire Leads |
| Includes Motor | Yes |
| Flange Size | 6-5/8 in W x 5-5/8 in H |
| Corrosion Resistant | No |
| Minimum Fan Speed | 0 RPM |
| Airflow @ 0.750 in SP | Not Applicable |
| For High-Static Pressure Applications | No |
| Maximum Static Pressure | 1.375 in wc |
| OEM Replacement | Yes |
| Nameplate Voltage | 230V AC |
| Wheel Diameter | 6-1/4 in |
| Airflow @ 4.000 in SP | Not Applicable |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Minimum Ambient Temperature | 14 deg F |
| Outlet Diameter | Not Applicable |
| Rotation | CW |
| Motor Type | Permanent Split Capacitor |
| Market | Commercial, Industrial, Residential |
| Airflow @ 9.000 in SP | Not Applicable |
| Housing Material Gauge | 1.2 mm |
| Flange Type | Flanged |
| Wheel Bore Diameter | 12 mm |
| Housing Depth | 10-7/16 in |
| Airflow @ 8.000 in SP | Not Applicable |
| Brake Horsepower | 0.1 HP |
| Hazardous Location Specification | Not Applicable |
| Assembly | Assembled |
| Motor Frame Designation | 4.4" PSC motor |
| Motor Location | Out of Airstream |
| Housing Material Finish | Enamel |
| Motor Insulation Class | B |
| Maximum Ambient Temperature | 104 deg F |
| Airflow @ 2.000 in SP | Not Applicable |
| For Location | Indoor |
| Replacement For | 4C870 |
| Airflow @ 0.100 in SP | 540 cfm |
| Sound Level | Not Rated |
| Airflow @ 0.500 in SP | 450 cfm |
| Airflow @ 0.000 in SP | 559 cfm |
| Motor Speed | 1,450 rpm |
| AMCA Fan Class | Not Rated |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Airflow @ 5.000 in SP | Not Applicable |
| Motor Duty Class | Continuous |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 230 |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
