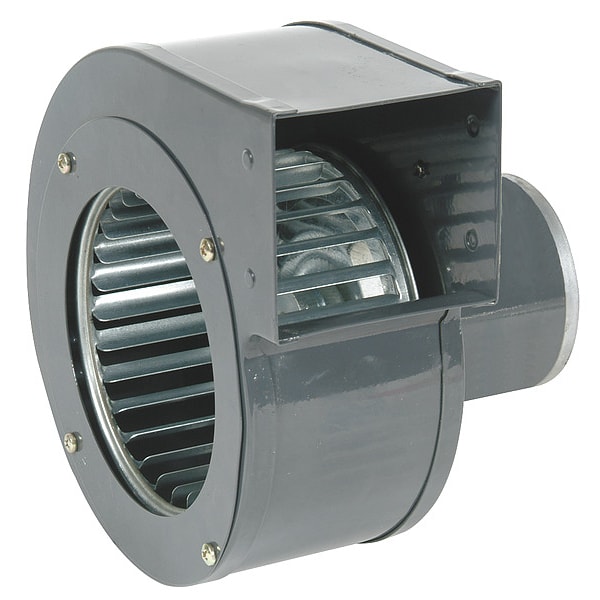

Rectangular OEM Blower, 1650 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 162 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.6 |
| Housing Material | Steel |
| Includes | Not Applicable |
| Inlet Dia. | 4-3/4 in |
| Number of Speeds | 1 |
| Overall Height | 7-3/4 in |
| Overall Width | 6-1/2 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | No |
| Blower Wheel Diameter | 5-3/16 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| Dimension C | 6-1/2 in |
| CFM @ 0.500-In. SP | 95 |
| Dimension B | 10 in |
| Outlet Height | 2-7/8 in |
| RPM | 1,650 |
| CFM @ 0.000-In. SP | 174 |
| Dimension E | 7-15/16 in |
| Dimension D | 3-3/8 in |
| Motor Insulation | Class B |
| Dimension A | 7-15/16 in |
| Wheel Type | Forward-Curved |
| Lead Length | 13 in |
| Mounting Position | All Position |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| CFM @ 0.200-In. SP | 152 |
| Item | OEM Blower |
| Housing Color | Gray |
| Max. Ambient Temp. | 104 deg F |
| Dimension J | 2-1/4 in |
| Max. Inlet Temp. | 104 deg F |
| CFM @ 0.400-In. SP | 118 |
| Bearing Type | Ball |
| CFM @ 0.300-In. SP | 134 |
| Hz | 50/60 |
| Housing Finish | Enamel |
| Motor Enclosure | Open |
| Overall Depth | 7-15/16 in |
| Dimension F | 3-5/16 in |
| Blower Wheel Width | 1-7/8 in |
| Replaces | 1C982 |
| Outlet Width | 3-1/4 in |
| Speed Controllable | No |
| Includes Mounting Hardware | No |
| Airflow @ 0.750 in SP | Not Applicable |
| Housing Width | 6-1/2 in |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Motor Location | Out of Airstream |
| Motor Horsepower | 1/50 hp |
| OEM Replacement | Yes |
| Mount Type | All Position |
| Motor Insulation Class | B |
| Wheel Bore Diameter | 8 mm |
| Motor Type | Permanent Split Capacitor |
| Chemical Resistant | No |
| Current | 0.6 A |
| Minimum Fan Speed | 0 RPM |
| Housing Height | 7-3/4 in |
| Airflow @ 9.000 in SP | Not Applicable |
| Airflow @ 0.400 in SP | 118 cfm |
| Manufacturer Warranty Length | 1 yr Limited |
| Electrical Connection | Wire Leads |
| Mounting Orientation | Multiposition |
| Airflow @ 1.250 in SP | Not Applicable |
| Number of Inlets | 1 |
| Airflow @ 0.100 in SP | 162 cfm |
| Maximum Static Pressure | 0.5 in wc |
| Flange Type | Non-Flanged |
| Sound Level | Not Rated |
| Airflow @ 0.125 in SP | Not Applicable |
| Wheel Material Finish | Galvanized |
| Airflow @ 2.500 in SP | Not Applicable |
| Minimum Ambient Temperature | 14 deg F |
| Maximum Inlet Air Temperature | 104 deg F |
| Rotation | CW |
| Housing Material Gauge | 1 mm |
| Thermal Overload Protection | Yes |
| Airflow @ 8.000 in SP | Not Applicable |
| Outlet Diameter | Not Applicable |
| Shaft Diameter | 8 mm |
| Replacement For | 1C982 |
| Airflow @ 4.000 in SP | Not Applicable |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, The Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Includes Drive Package | Not Applicable |
| Airflow @ 3.000 in SP | Not Applicable |
| Motor Frame Designation | 3.3" PSC Motor |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Resistance Properties | Corrosion Resistant |
| Airflow @ 3.500 in SP | Not Applicable |
| Airflow @ 7.000 in SP | Not Applicable |
| Housing Material Finish | Enamel |
| Wheel Diameter | 5-1/8 in |
| Airflow @ 4.500 in SP | Not Applicable |
| AMCA Fan Class | Not Rated |
| Motor IP Rating | IP20 |
| Airflow @ 0.500 in SP | 95 cfm |
| Corrosion Resistant | No |
| Assembly | Assembled |
| Airflow @ 5.000 in SP | Not Applicable |
| Flange Size | Not Applicable |
| Airflow @ 0.000 in SP | 174 cfm |
| Wheel Width | 1-7/8 in |
| Includes Motor | Yes |
| Compatible Speed Control | No |
| Airflow @ 2.000 in SP | Not Applicable |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Motor Speed | 1,630 rpm |
| Spark Resistant Construction Type | Not Rated |
| Motor Duty Class | Continuous |
| Hazardous Location Specification | Not Applicable |
| For Location | Indoor |
| Hazardous Location Application | No |
| Brake Horsepower | 1/50 hp |
| Outlet Shape | Rectangular |
| Airflow @ 1.000 in SP | Not Applicable |
| Market | Commercial, Industrial, Residential |
| Maximum Ambient Temperature | 104 deg F |
| Maximum Fan Speed | 1,650 rpm |
| For Air Type | Clean Air |
| Housing Material Grade | SPCC |
| Airflow @ 13.00 in SP | Not Applicable |
| Airflow @ 6.000 in SP | Not Applicable |
| Airflow @ 12.00 in SP | Not Applicable |
| Nameplate Voltage | 115V AC |
| Airflow @ 0.250 in SP | 144 cfm |
| Housing Depth | 7-15/16 in |
| Frequency | 50/60 Hz |
| Airflow @ 11.00 in SP | Not Applicable |
| Airflow @ 10.00 in SP | Not Applicable |
| Airflow @ 1.500 in SP | Not Applicable |
| Inlet Diameter | 4-3/4 in |
| Airflow @ 0.375 in SP | Not Applicable |
| For High-Static Pressure Applications | No |
| High-Efficiency Motor | No |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 115 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
