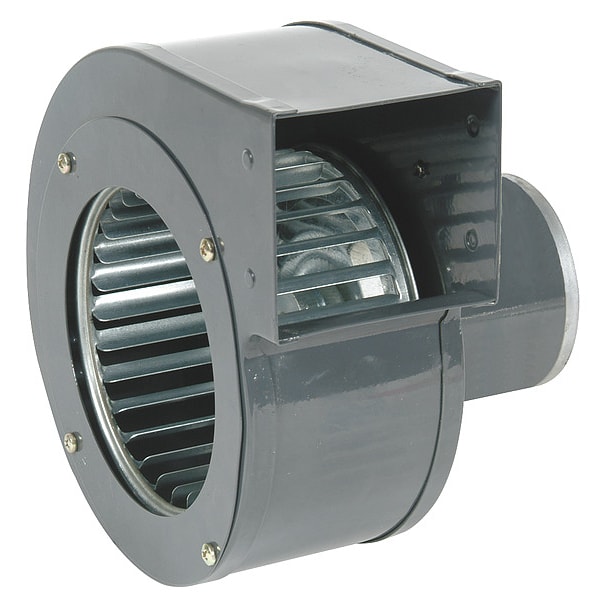

Rectangular OEM Blower, 1650 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 156 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.35 |
| Housing Material | Steel |
| Includes | Not Applicable |
| Inlet Dia. | 4-3/4 in |
| Number of Speeds | 1 |
| Overall Height | 7-7/8 in |
| Overall Width | 6-1/2 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | No |
| Blower Wheel Diameter | 5-3/16 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 230V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| Housing Color | Gray |
| Dimension A | 7-15/16 in |
| Dimension B | 10 in |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Max. Ambient Temp. | 104 deg F |
| Mounting Position | All Position |
| Dimension J | 2-1/4 in |
| Bearing Type | Ball |
| Outlet Height | 2-7/8 in |
| RPM | 1,650 |
| Housing Finish | Enamel |
| CFM @ 0.300-In. SP | 130 |
| Motor Enclosure | Open |
| Motor Insulation | Class B |
| Lead Length | 13 in |
| Wheel Type | Forward-Curved |
| Dimension F | 3-5/16 in |
| Replaces | 2C916 |
| CFM @ 0.000-In. SP | 168 |
| CFM @ 0.200-In. SP | 144 |
| Blower Wheel Width | 1-7/8 in |
| CFM @ 0.500-In. SP | 55 |
| Dimension E | 7-15/16 in |
| Item | OEM Blower |
| Overall Depth | 7-15/16 in |
| Hz | 50/60 |
| CFM @ 0.400-In. SP | 118 |
| Max. Inlet Temp. | 104 deg F |
| Dimension D | 3-3/8 in |
| Dimension C | 6-1/2 in |
| Outlet Width | 3-1/4 in |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, The Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Motor Insulation Class | B |
| For Air Type | Clean Air |
| Wheel Bore Diameter | 8 mm |
| Housing Material Gauge | 1 mm |
| Airflow @ 0.750 in SP | Not Applicable |
| Airflow @ 13.00 in SP | Not Applicable |
| Motor Speed | 1,650 rpm |
| Minimum Ambient Temperature | 14 deg F |
| OEM Replacement | Yes |
| Maximum Fan Speed | 1,650 rpm |
| Housing Material Grade | SPCC |
| Corrosion Resistant | No |
| Airflow @ 4.000 in SP | Not Applicable |
| Housing Material Finish | Enamel |
| Airflow @ 5.000 in SP | Not Applicable |
| Hazardous Location Application | No |
| Airflow @ 10.00 in SP | Not Applicable |
| Wheel Material Finish | Galvanized |
| Airflow @ 1.500 in SP | Not Applicable |
| Airflow @ 7.000 in SP | Not Applicable |
| Airflow @ 6.000 in SP | Not Applicable |
| Mounting Orientation | Multiposition |
| Compatible Speed Control | No |
| Housing Height | 7-7/8 in |
| Airflow @ 12.00 in SP | Not Applicable |
| Includes Drive Package | Not Applicable |
| Brake Horsepower | 1/25 hp |
| Housing Width | 6-1/2 in |
| Airflow @ 0.100 in SP | 156 cfm |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Airflow @ 0.375 in SP | Not Applicable |
| Flange Size | Not Applicable |
| For High-Static Pressure Applications | No |
| Chemical Resistant | No |
| Wheel Diameter | 5-1/8 in |
| Airflow @ 3.500 in SP | Not Applicable |
| Wheel Width | 1-7/8 in |
| Sound Level | Not Rated |
| Motor Duty Class | Continuous |
| Maximum Ambient Temperature | 104 deg F |
| Airflow @ 2.500 in SP | Not Applicable |
| Electrical Connection | Wire Leads |
| Airflow @ 3.000 in SP | Not Applicable |
| Airflow @ 9.000 in SP | Not Applicable |
| Airflow @ 1.000 in SP | Not Applicable |
| Airflow @ 0.250 in SP | 137 cfm |
| Motor IP Rating | IP20 |
| Airflow @ 11.00 in SP | Not Applicable |
| Market | Commercial, Industrial, Residential |
| Outlet Diameter | Not Applicable |
| Includes Mounting Hardware | No |
| Replacement For | 2C916 |
| Maximum Inlet Air Temperature | 104 deg F |
| Airflow @ 1.250 in SP | Not Applicable |
| Flange Type | Non-Flanged |
| AMCA Fan Class | Not Rated |
| Hazardous Location Specification | Not Applicable |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Assembly | Assembled |
| Maximum Static Pressure | 0.5 in wc |
| Manufacturer Warranty Length | 1 yr Limited |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Motor Horsepower | 1/25 hp |
| Resistance Properties | Corrosion Resistant |
| Number of Inlets | 1 |
| Mount Type | All Position |
| Frequency | 50/60 Hz |
| Airflow @ 2.000 in SP | Not Applicable |
| Outlet Shape | Rectangular |
| Nameplate Voltage | 230V AC |
| Motor Type | Permanent Split Capacitor |
| Minimum Fan Speed | 0 RPM |
| Motor Frame Designation | 3.3" PSC Motor |
| Airflow @ 0.400 in SP | 118 cfm |
| Airflow @ 4.500 in SP | Not Applicable |
| Housing Depth | 7-15/16 in |
| High-Efficiency Motor | No |
| Airflow @ 8.000 in SP | Not Applicable |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Thermal Overload Protection | Yes |
| Airflow @ 0.000 in SP | 168 cfm |
| Airflow @ 0.125 in SP | Not Applicable |
| Current | 0.35 A |
| Rotation | CW |
| Includes Motor | Yes |
| Shaft Diameter | 8 mm |
| Motor Location | Out of Airstream |
| For Location | Indoor |
| Spark Resistant Construction Type | Not Rated |
| Speed Controllable | No |
| Airflow @ 0.500 in SP | 55 cfm |
| Inlet Diameter | 4-3/4 in |
| Wheel Material | Steel |
| Voltage | 230 |
| Mounting | All Position |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
