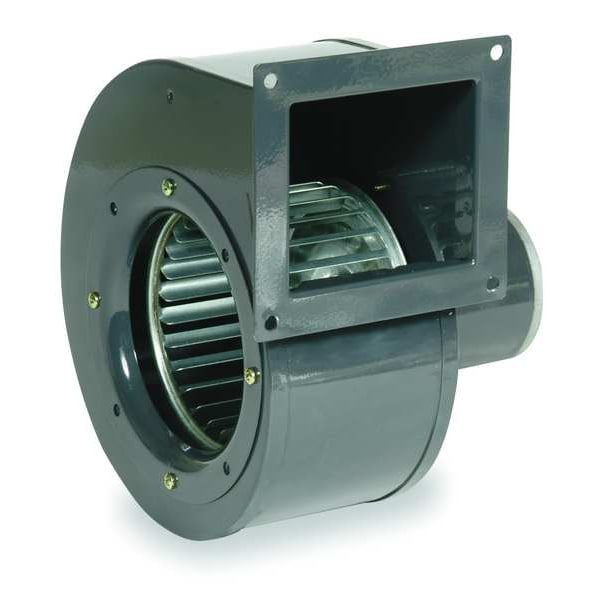

Rectangular OEM Blower, 1650 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 245 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 4.5 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 4-5/8 in |
| Number of Speeds | 1 |
| Overall Height | 9-7/8 in |
| Overall Width | 8-1/2 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 5-1/8 in |
| Blower Motor Type | DC |
| Blower Voltage | 12V DC |
| Blower Thermal Protection | No Thermal Protection |
| Blower Conduit Box | Yes |
| Outlet Width | 4-1/8 in |
| RPM | 1,650 |
| Dimension B | 10-7/16 in |
| Dimension C | 8-1/2 in |
| Motor Insulation | Class B |
| Housing Finish | Enamel |
| Dimension E | 9-7/8 in |
| Lead Length | 13 in |
| Motor Enclosure | Open |
| Dimension J | 5-1/2 in |
| Dimension M | 4-3/8 in |
| CFM @ 0.400-In. SP | 183 |
| Item | OEM Blower |
| Agency Compliance | UL Recognized US and Canada (E47479) |
| Max. Ambient Temp. | 104 deg F |
| Dimension D | 4-1/4 in |
| Max. Inlet Temp. | 104 deg F |
| Wheel Type | Forward-Curved |
| CFM @ 0.200-In. SP | 230 |
| Blower Wheel Width | 3 in |
| Dimension K | 5 in |
| Mounting Position | All Position |
| Overall Depth | 8-7/8 in |
| Housing Color | Gray |
| CFM @ 0.500-In. SP | 135 |
| Bearing Type | Ball |
| Dimension F | 3-1/8 in |
| CFM @ 0.300-In. SP | 210 |
| CFM @ 0.000-In. SP | 275 |
| Outlet Height | 3-5/8 in |
| Dimension L | 4-7/8 in |
| Dimension A | 8-7/8 in |
| Airflow @ 13.00 in SP | Not Applicable |
| OEM Replacement | Yes |
| Airflow @ 3.500 in SP | Not Applicable |
| Housing Depth | 8-7/8 in |
| Airflow @ 4.000 in SP | Not Applicable |
| Nameplate Voltage | 12V DC |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Airflow @ 2.000 in SP | Not Applicable |
| Airflow @ 12.00 in SP | Not Applicable |
| Airflow @ 0.250 in SP | 234 cfm |
| Airflow @ 1.500 in SP | Not Applicable |
| Motor Frame Designation | 12 VDC motor |
| Spark Resistant Construction Type | Not Rated |
| Outlet Diameter | Not Applicable |
| Includes Mounting Hardware | No |
| Market | Commercial, Industrial, Residential |
| Motor Location | Out of Airstream |
| Airflow @ 0.500 in SP | 135 cfm |
| Number of Inlets | 1 |
| For Location | Indoor |
| Hazardous Location Application | No |
| Wheel Width | 3 in |
| Flange Size | 5-1/2 in W x 5 in H |
| Maximum Inlet Air Temperature | 104 deg F |
| Motor IP Rating | IP20 |
| Housing Material Gauge | 1 mm |
| Wheel Material Finish | Galvanized |
| Minimum Ambient Temperature | 14 deg F |
| Chemical Resistant | No |
| Housing Width | 8-1/2 in |
| Brake Horsepower | 1/20 hp |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Maximum Fan Speed | 1,650 rpm |
| Airflow @ 0.000 in SP | 275 cfm |
| Airflow @ 0.125 in SP | Not Applicable |
| Airflow @ 9.000 in SP | Not Applicable |
| Includes Motor | Yes |
| Airflow @ 4.500 in SP | Not Applicable |
| Rotation | CW |
| Airflow @ 0.750 in SP | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Mount Type | All Position |
| Speed Controllable | No |
| Minimum Fan Speed | 0 RPM |
| Airflow @ 0.375 in SP | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Housing Material Grade | SPCC |
| Inlet Diameter | 4-5/8 in |
| Flange Type | Flanged |
| Airflow @ 10.00 in SP | Not Applicable |
| Wheel Bore Diameter | 8 mm |
| Outlet Shape | Rectangular |
| Airflow @ 7.000 in SP | Not Applicable |
| Airflow @ 11.00 in SP | Not Applicable |
| Shaft Diameter | 8 mm |
| Airflow @ 1.000 in SP | Not Applicable |
| Manufacturer Warranty Length | 1 yr Limited |
| Maximum Ambient Temperature | 104 deg F |
| High-Efficiency Motor | No |
| AMCA Fan Class | Not Rated |
| Mounting Orientation | Multiposition |
| Airflow @ 0.400 in SP | 183 cfm |
| Motor Duty Class | Continuous |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Motor Speed | 1,650 rpm |
| Electrical Connection | Wire Leads |
| Airflow @ 2.500 in SP | Not Applicable |
| Thermal Overload Protection | No |
| For Air Type | Clean Air |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Airflow @ 6.000 in SP | Not Applicable |
| Housing Height | 9-7/8 in |
| Includes Drive Package | Not Applicable |
| Sound Level | Not Rated |
| For High-Static Pressure Applications | No |
| Replacement For | Not Applicable |
| Airflow @ 0.100 in SP | 245 cfm |
| Maximum Static Pressure | 0.75 in wc |
| Motor Horsepower | 1/20 hp |
| Housing Material Finish | Enamel |
| Airflow @ 1.250 in SP | Not Applicable |
| Compatible Speed Control | No |
| Standards | CE Compliant, RoHS Compliant |
| Wheel Diameter | 5-1/8 in |
| Frequency | Not Applicable |
| Airflow @ 3.000 in SP | Not Applicable |
| Current | 4.5 A |
| Assembly | Assembled |
| Motor Insulation Class | B |
| Airflow @ 8.000 in SP | Not Applicable |
| Corrosion Resistant | No |
| Airflow @ 5.000 in SP | Not Applicable |
| Wheel Material | Steel |
| Voltage | 12VDC |
| Mounting | All Position |
| Motor Type | Permanent Magnet DC |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
