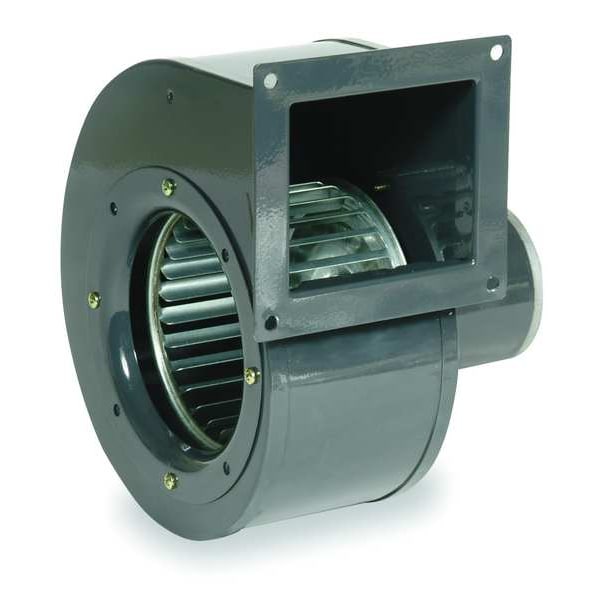

Rectangular OEM Blower, 1670 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 255 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.43 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 4-9/16 in |
| Number of Speeds | 1 |
| Overall Height | 9-7/8 in |
| Overall Width | 7-1/2 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 5-1/8 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 230V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| Item | OEM Blower |
| Blower Wheel Width | 9-7/8 in |
| Outlet Width | 4 in |
| Dimension E | 9-7/8 in |
| Dimension M | 4-3/8 in |
| Dimension A | 8-7/8 in |
| Dimension D | 4-1/4 in |
| Wheel Type | Forward-Curved |
| Max. Inlet Temp. | 104 deg F |
| Dimension B | 10-7/16 in |
| Dimension C | 7-9/16 in |
| Dimension F | 3-5/16 in |
| Overall Depth | 8-7/8 in |
| Lead Length | 13 in |
| Housing Color | Gray |
| RPM | 1,670 |
| Hz | 50/60 |
| Housing Finish | Enamel |
| Bearing Type | Ball |
| Replaces | 4C869 |
| Dimension L | 4-7/8 in |
| Dimension J | 5-1/2 in |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| CFM @ 0.200-In. SP | 235 |
| Motor Insulation | Class B |
| CFM @ 0.000-In. SP | 271 |
| CFM @ 0.400-In. SP | 183 |
| Dimension K | 5 in |
| Mounting Position | All Position |
| Motor Enclosure | Open |
| CFM @ 0.300-In. SP | 210 |
| Outlet Height | 3-7/16 in |
| CFM @ 0.500-In. SP | 135 |
| Max. Ambient Temp. | 104 deg F |
| Nameplate Voltage | 230V AC |
| Market | Commercial, Industrial, Residential |
| Includes Mounting Hardware | No |
| Airflow @ 3.500 in SP | Not Applicable |
| Airflow @ 1.500 in SP | Not Applicable |
| AMCA Fan Class | Not Rated |
| Motor Horsepower | 1/20 hp |
| Airflow @ 2.000 in SP | Not Applicable |
| Maximum Fan Speed | 1,670 rpm |
| Airflow @ 4.000 in SP | Not Applicable |
| Electrical Connection | Wire Leads |
| OEM Replacement | Yes |
| Chemical Resistant | No |
| Replacement For | 4C869 |
| Mount Type | All Position |
| Motor Type | Permanent Split Capacitor |
| Corrosion Resistant | No |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Minimum Ambient Temperature | 14 deg F |
| Wheel Material Finish | Galvanized |
| Airflow @ 3.000 in SP | Not Applicable |
| Wheel Diameter | 5-1/8 in |
| Airflow @ 5.000 in SP | Not Applicable |
| Wheel Width | 3 in |
| Maximum Ambient Temperature | 104 deg F |
| Motor Frame Designation | 3.3" PSC Motor |
| Airflow @ 2.500 in SP | Not Applicable |
| Motor Insulation Class | B |
| Hazardous Location Application | No |
| Airflow @ 7.000 in SP | Not Applicable |
| Maximum Inlet Air Temperature | 104 deg F |
| Airflow @ 1.250 in SP | Not Applicable |
| Includes Motor | Yes |
| Airflow @ 0.000 in SP | 271 cfm |
| Motor IP Rating | IP20 |
| Flange Size | 5-1/2 in W x 5 in H |
| Sound Level | Not Rated |
| Spark Resistant Construction Type | Not Rated |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Inlet Diameter | 4-1/2 in |
| Airflow @ 0.500 in SP | 135 cfm |
| Maximum Static Pressure | 0.625 in wc |
| Wheel Bore Diameter | 8 mm |
| Housing Material Grade | SPCC |
| Housing Material Gauge | 1 mm |
| Airflow @ 0.100 in SP | 255 cfm |
| For Air Type | Clean Air |
| Assembly | Assembled |
| Airflow @ 11.00 in SP | Not Applicable |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Airflow @ 0.375 in SP | Not Applicable |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Flange Type | Flanged |
| Brake Horsepower | 1/20 hp |
| Airflow @ 13.00 in SP | Not Applicable |
| Airflow @ 0.400 in SP | 183 cfm |
| Mounting Orientation | Multiposition |
| Airflow @ 0.125 in SP | Not Applicable |
| Outlet Shape | Rectangular |
| Rotation | CW |
| Airflow @ 12.00 in SP | Not Applicable |
| Shaft Diameter | 8 mm |
| Includes Drive Package | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Motor Speed | 1,650 rpm |
| High-Efficiency Motor | No |
| Airflow @ 10.00 in SP | Not Applicable |
| For High-Static Pressure Applications | No |
| Airflow @ 8.000 in SP | Not Applicable |
| Airflow @ 1.000 in SP | Not Applicable |
| Housing Height | 9-3/8 in |
| Housing Width | 7-1/2 in |
| Airflow @ 0.250 in SP | 219 cfm |
| Manufacturer Warranty Length | 1 yr Limited |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Airflow @ 9.000 in SP | Not Applicable |
| Housing Depth | 8-7/8 in |
| For Location | Indoor |
| Number of Inlets | 1 |
| Airflow @ 6.000 in SP | Not Applicable |
| Housing Material Finish | Enamel |
| Current | 0.43 A |
| Frequency | 50/60 Hz |
| Hazardous Location Specification | Not Applicable |
| Airflow @ 4.500 in SP | Not Applicable |
| Motor Location | Out of Airstream |
| Motor Duty Class | Continuous |
| Speed Controllable | No |
| Thermal Overload Protection | Yes |
| Compatible Speed Control | No |
| Airflow @ 0.750 in SP | Not Applicable |
| Outlet Diameter | Not Applicable |
| Minimum Fan Speed | 0 RPM |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 230 |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
