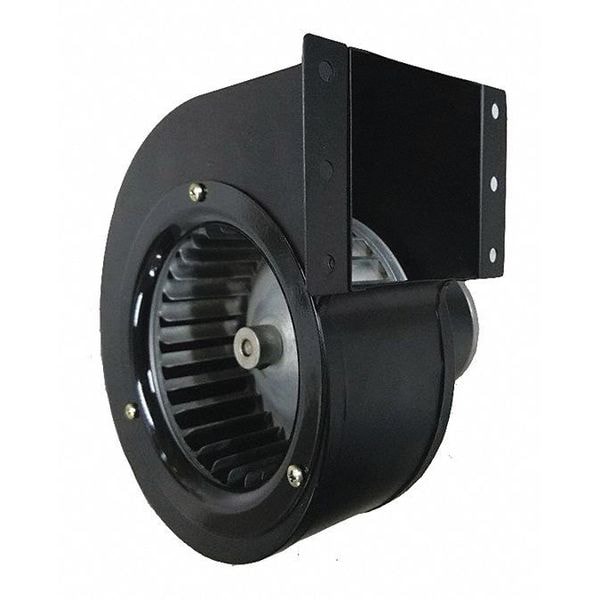

Rectangular OEM Blower, 1875 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 170 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 5.1 |
| Housing Material | Steel |
| Includes | Not Applicable |
| Inlet Dia. | 4-1/2 in |
| Number of Speeds | 1 |
| Overall Height | 8 in |
| Overall Width | 6-3/16 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 5-1/4 in |
| Blower Motor Type | DC |
| Blower Voltage | 12V DC |
| Blower Thermal Protection | No Thermal Protection |
| Blower Conduit Box | No |
| Dimension B | 8 in |
| Dimension F | 3 in |
| CFM @ 0.200-In. SP | 165 |
| Motor Enclosure | Totally Enclosed |
| Outlet Width | 3 in |
| Dimension M | 2-3/8 in |
| Dimension C | 5-11/16 in |
| Dimension K | 3-1/8 in |
| Housing Finish | Baked Enamel |
| RPM | 1,875 |
| Bearing Type | Ball |
| Dimension J | 4-5/8 in |
| Max. Ambient Temp. | 104 deg F |
| Dimension L | 3-15/16 in |
| Dimension D | 3-1/8 in |
| Wheel Type | Forward-Curved |
| CFM @ 0.000-In. SP | 176 |
| Housing Color | Black |
| Mounting Position | All Position |
| Overall Depth | 7-7/16 in |
| Lead Length | 37 in Black - 10 in Red |
| Motor Insulation | Class B |
| Item | OEM Blower |
| Max. Inlet Temp. | 104 deg F |
| Dimension A | 7-7/16 in |
| Blower Wheel Width | 2-1/2 in |
| Outlet Height | 3-1/8 in |
| CFM @ 0.400-In. SP | 153 |
| Agency Compliance | CE and RoHS Compliance |
| CFM @ 0.300-In. SP | 159 |
| CFM @ 0.500-In. SP | 148 |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Voltage | 12VDC |
| Standards | CE Compliant, RoHS Compliant |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| For Location | Indoor |
| Wheel Diameter | 5-1/4 in |
| Airflow @ 2.000 in SP | Not Applicable |
| Outlet Shape | Rectangular |
| Mounting Orientation | Multiposition |
| Airflow @ 8.000 in SP | Not Applicable |
| Brake Horsepower | 1/35 hp |
| Airflow @ 12.00 in SP | Not Applicable |
| Housing Height | 8 in |
| Rotation | CW |
| Airflow @ 5.000 in SP | Not Applicable |
| Current | 5.4 A |
| Maximum Ambient Temperature | 104 deg F |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Resistance Properties | Corrosion Resistant |
| Airflow @ 10.00 in SP | Not Applicable |
| Housing Material Grade | SPCC |
| Airflow @ 3.500 in SP | Not Applicable |
| Airflow @ 0.500 in SP | 148 cfm |
| Electrical Connection | Wire Leads |
| Wheel Bore Diameter | 8 mm |
| Maximum Inlet Air Temperature | 104 deg F |
| Wheel Width | 2-1/2 in |
| OEM Replacement | Yes |
| Airflow @ 9.000 in SP | Not Applicable |
| Airflow @ 6.000 in SP | Not Applicable |
| Airflow @ 0.375 in SP | Not Applicable |
| Wheel Material Finish | Galvanized |
| AMCA Fan Class | Not Rated |
| Market | Commercial, Industrial, Residential |
| Airflow @ 3.000 in SP | Not Applicable |
| For Air Type | Clean Air |
| Mount Type | All Position |
| Airflow @ 13.00 in SP | Not Applicable |
| Motor Duty Class | Continuous |
| Airflow @ 0.000 in SP | 176 cfm |
| Hazardous Location Application | No |
| Airflow @ 11.00 in SP | Not Applicable |
| Chemical Resistant | No |
| Airflow @ 0.125 in SP | Not Applicable |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Housing Material Gauge | 0.8 mm |
| Airflow @ 7.000 in SP | Not Applicable |
| Manufacturer Warranty Length | 1 yr Limited |
| Airflow @ 1.250 in SP | Not Applicable |
| Includes Motor | Yes |
| Outlet Diameter | Not Applicable |
| Housing Material Finish | Baked Enamel |
| Minimum Ambient Temperature | 14 deg F |
| Maximum Fan Speed | 1,875 rpm |
| Nameplate Voltage | 12V DC |
| Includes Drive Package | Not Applicable |
| Shaft Diameter | 8 mm |
| Inlet Diameter | 4-1/2 in |
| Airflow @ 1.000 in SP | Not Applicable |
| Sound Level | Not Rated |
| Airflow @ 0.100 in SP | 170 cfm |
| Airflow @ 1.500 in SP | Not Applicable |
| Airflow @ 4.500 in SP | Not Applicable |
| Motor IP Rating | IP20 |
| Thermal Overload Protection | No |
| Number of Inlets | 1 |
| Airflow @ 2.500 in SP | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Motor Horsepower | 1/35 hp |
| Spark Resistant Construction Type | Not Rated |
| Airflow @ 0.750 in SP | Not Applicable |
| Housing Depth | 7-7/16 in |
| Minimum Fan Speed | 0 RPM |
| Frequency | Not Applicable |
| Flange Size | 4-5/8 in W x 3-1/8 in H |
| Flange Type | Flanged |
| Housing Width | 6-3/16 in |
| Corrosion Resistant | No |
| Assembly | Assembled |
| Motor Insulation Class | B |
| Motor Frame Designation | 12 VDC motor |
| Airflow @ 0.250 in SP | 187 cfm |
| Maximum Static Pressure | 1.5 in wc |
| Compatible Speed Control | No |
| Includes Mounting Hardware | No |
| Motor Speed | 1,875 rpm |
| Motor Location | Out of Airstream |
| High-Efficiency Motor | No |
| Speed Controllable | No |
| Airflow @ 0.400 in SP | 153 cfm |
| Airflow @ 4.000 in SP | Not Applicable |
| Replacement For | Not Applicable |
| For High-Static Pressure Applications | No |
| Wheel Material | Steel |
| Mounting | All Position |
| Motor Type | Permanent Magnet DC |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
