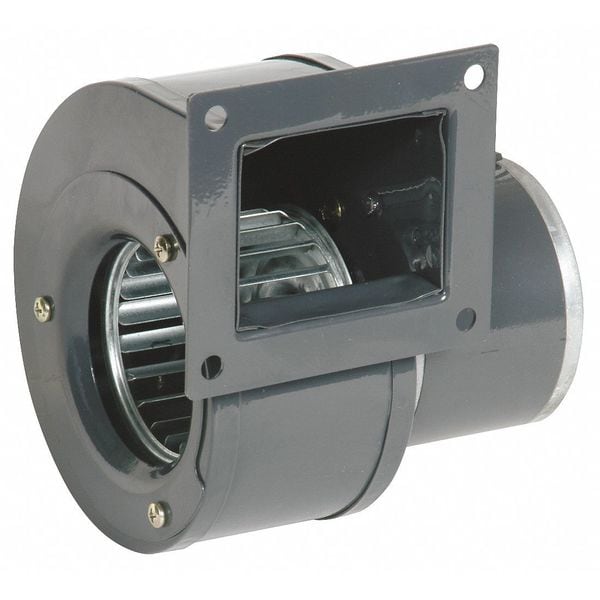

Rectangular OEM Blower, 2450 RPM, 1 Phase, Direct Drive, Steel
| CFM @ 0.100-In. SP | 144 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.75 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 3-3/4 in |
| Overall Height | 7-5/8 in |
| Overall Width | 6 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 4-3/16 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| CFM @ 1.000-In. SP | 86 cfm |
| Housing Color | Gray |
| CFM @ 0.200-In. SP | 136 |
| Max. Ambient Temp. | 104 deg F |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Dimension E | 7-5/8 in |
| Wheel Type | Forward-Curved |
| Dimension F | 3-5/16 in |
| Dimension D | 3 in |
| Dimension L | 3-3/4 in |
| CFM @ 1.200-In. SP | 44 cfm |
| Dimension C | 6 in |
| Lead Length | 13 in |
| CFM @ 0.800-In. SP | 106 |
| Outlet Width | 2-15/16 in |
| Dimension J | 4-7/16 in |
| Replaces | 4C006 |
| Hz | 50/60 |
| CFM @ 0.000-In. SP | 148 |
| Dimension B | 8-1/4 in |
| Mounting Position | All Position |
| Max. Inlet Temp. | 104 deg F |
| Blower Wheel Width | 1-7/8 in |
| Housing Finish | Enamel |
| RPM | 2,450 |
| Dimension K | 4-1/16 in |
| Dimension M | 3-3/8 in |
| Bearing Type | Ball |
| Motor Enclosure | Open |
| CFM @ 0.400-In. SP | 130 |
| CFM @ 0.300-In. SP | 134 |
| CFM @ 0.900-In. SP | 95 cfm |
| CFM @ 0.500-In. SP | 124 |
| Motor Insulation | Class B |
| Item | OEM Blower |
| Dimension A | 7-1/8 in |
| Outlet Height | 2-5/8 in |
| CFM @ 0.700-In. SP | 114 |
| Overall Depth | 7-1/8 in |
| Airflow @ 6.000 in SP | Not Applicable |
| Motor Location | Out of Airstream |
| Resistance Properties | Corrosion Resistant |
| Motor Frame Designation | 3.3" PSC Motor |
| Wheel Width | 1-7/8 in |
| Inlet Diameter | 3-3/4 in |
| Housing Material Grade | SPCC |
| Sound Level | Not Rated |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Motor IP Rating | IP20 |
| Minimum Ambient Temperature | 14 deg F |
| Wheel Diameter | 4-1/8 in |
| Airflow @ 2.500 in SP | Not Applicable |
| Compatible Speed Control | No |
| Electrical Connection | Wire Leads |
| For Air Type | Clean Air |
| Housing Depth | 7-1/8 in |
| Maximum Ambient Temperature | 104 deg F |
| Maximum Static Pressure | 1.25 in wc |
| Airflow @ 1.250 in SP | Not Applicable |
| Airflow @ 4.500 in SP | Not Applicable |
| Airflow @ 0.750 in SP | Not Applicable |
| Includes Motor | Yes |
| Assembly | Assembled |
| Corrosion Resistant | No |
| Replacement For | 4C006 |
| AMCA Fan Class | Not Rated |
| Spark Resistant Construction Type | Not Rated |
| Housing Height | 7-5/8 in |
| Airflow @ 0.400 in SP | 130 cfm |
| Airflow @ 9.000 in SP | Not Applicable |
| Motor Type | Permanent Split Capacitor |
| Airflow @ 2.000 in SP | Not Applicable |
| Airflow @ 5.000 in SP | Not Applicable |
| Airflow @ 3.500 in SP | Not Applicable |
| Motor Horsepower | 1/40 hp |
| Wheel Material Finish | Galvanized |
| Flange Type | Flanged |
| Airflow @ 0.375 in SP | Not Applicable |
| Speed Controllable | No |
| Flange Size | 4-7/16 in W x 4-1/16 in H |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Motor Speed | 2,480 rpm |
| Chemical Resistant | No |
| Hazardous Location Application | No |
| Airflow @ 1.500 in SP | Not Applicable |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Manufacturer Warranty Length | 1 yr Limited |
| Maximum Inlet Air Temperature | 104 deg F |
| Hazardous Location Specification | Not Applicable |
| Brake Horsepower | 1/40 hp |
| Number of Inlets | 1 |
| Airflow @ 10.00 in SP | Not Applicable |
| OEM Replacement | Yes |
| Frequency | 50/60 Hz |
| Airflow @ 1.000 in SP | 86 cfm |
| For Location | Indoor |
| Nameplate Voltage | 115V AC |
| Airflow @ 4.000 in SP | Not Applicable |
| Airflow @ 0.000 in SP | 148 cfm |
| Current | 0.75 A |
| Maximum Fan Speed | 2,450 rpm |
| Airflow @ 3.000 in SP | Not Applicable |
| Motor Duty Class | Continuous |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Airflow @ 8.000 in SP | Not Applicable |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Double Blower Provides Smooth and Quiet Operation |
| Airflow @ 7.000 in SP | Not Applicable |
| High-Efficiency Motor | No |
| Airflow @ 0.500 in SP | 124 cfm |
| Mount Type | All Position |
| Housing Material Finish | Enamel |
| Includes Mounting Hardware | No |
| Motor Insulation Class | B |
| Outlet Shape | Rectangular |
| Market | Commercial, Industrial, Residential |
| Airflow @ 0.125 in SP | Not Applicable |
| Thermal Overload Protection | Yes |
| Airflow @ 0.250 in SP | 136 cfm |
| Airflow @ 12.00 in SP | Not Applicable |
| Outlet Diameter | Not Applicable |
| Rotation | CW |
| Mounting Orientation | Multiposition |
| Airflow @ 0.100 in SP | 144 cfm |
| Includes Drive Package | Not Applicable |
| Airflow @ 13.00 in SP | Not Applicable |
| For High-Static Pressure Applications | No |
| Airflow @ 11.00 in SP | Not Applicable |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 115 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
