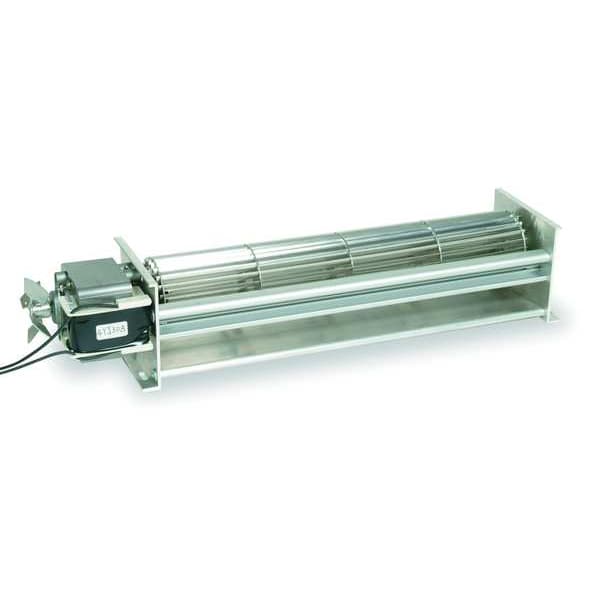

Rectangular OEM Blower, 2736 RPM, 1 Phase, Direct Drive, C45 Carbon Steel
| CFM @ 0.100-In. SP | 87 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.55 |
| Housing Material | C45 Carbon Steel |
| Overall Height | 3-1/2 in |
| Overall Width | 11 in |
| Phase | 1 |
| Blower Item | Transflow Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | No |
| Blower Wheel Diameter | 2-3/8 in |
| Blower Motor Type | Shaded Pole |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Max. Inlet Temp. | 104 deg F |

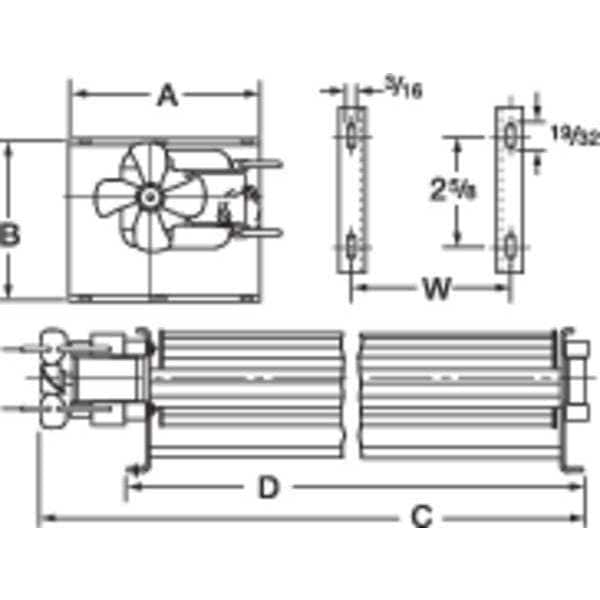

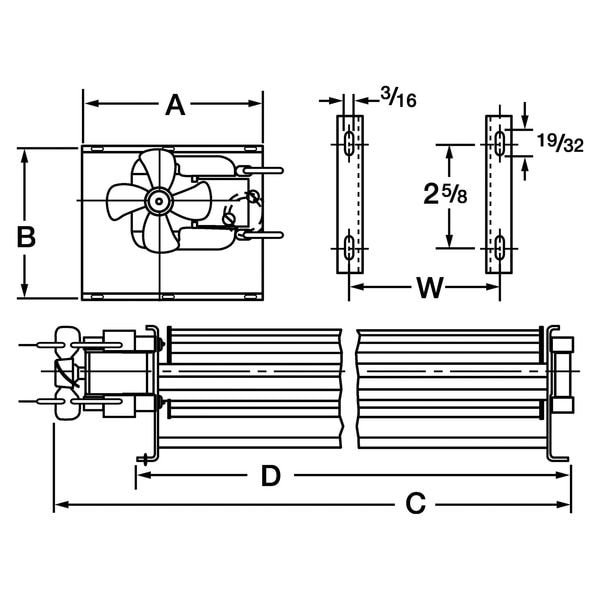

| Dimension C | 10-7/8 in |
| Wheel Type | Forward-Curved |
| Dimension A | 4-3/16 in |
| Replaces | 4C744 |
| CFM @ 0.000-In. SP | 105 |
| Dimension D | 8-3/4 in |
| Outlet Height | 1 in |
| Dimension W | 8-3/16 in |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Lead Length | 13 in |
| Motor Enclosure | Open |
| Motor Insulation | Class B |
| CFM @ 0.200-In. SP | 63 |
| Dimension B | 3-1/2 in |
| Bearing Type | Sleeve |
| Blower Wheel Width | 7-1/8 in |
| RPM | 2,736 |
| Overall Depth | 4-1/8 in |
| Mounting Position | All Position |
| Item | OEM Blower |
| Max. Ambient Temp. | 104 deg F |
| Dimension E | 10-7/8 in |
| Outlet Width | 7-1/2 in |
| Hz | 60 |
| Application | Corn Stoves, Electronic Equipment, Exhaust or Ventilate Cabinets, Fireplace Inserts, Office Machines, Pellet Stoves |
| Housing Construction | One Piece |
| Housing Height | 3-1/2 in |
| Features | Economical Air Delivery for General Heating, Cooling, Ventilating, or Component Cooling, Featuring Continuous-Duty Operation and Automatic Thermal Protection, Permanently Lubricated Sleeve Bearings on the Motor and Blower Housing Significantly Reduce Motor Hum Transmission into Equipment, The Extruded Aluminum, 1-Pc. Housing Keeps the Blower Wheel and Motor Properly Aligned, Reducing Vibration, the Heavy-Duty, Shaded-Pole Motor Features an Oversized Stack to Enhance Cooling and Product Life, and a Durable Metal Cooling-Fan Blade |
| Wheel Material | Steel |
| Airflow @ 0.000 in SP | 105 cfm |
| Thermal Overload Protection | Yes |
| Outlet Shape | Rectangular |
| Motor Insulation Class | B |
| Current | 0.55 A |
| Motor Speed | 2,736 rpm |
| Wheel Diameter | 2-3/8 in |
| Wheel Width | 7.1 in |
| Frequency | 60 Hz |
| Motor Type | Shaded Pole |
| Airflow @ 0.100 in SP | 87 cfm |
| Motor Duty Class | Continuous |
| Airflow @ 0.200-In. SP | 60 cfm |
| Maximum Static Pressure | 0.25 in wc |
| Airflow @ 0.250 in SP | 19.1 cfm |
| Flange Type | Non-Flanged |
| Maximum Inlet Air Temperature | 104 deg F |
| Number of Inlets | 1 |
| Mounting Orientation | Multiposition |
| Housing Depth | 10.8 in |
| OEM Replacement | 4C744 |
| Nameplate Voltage | 115V AC |
| Housing Width | 4.1 in |
| Blower Type | Transflow Blower |
| Assembly | Assembled |
| Maximum Ambient Temperature | 104 deg F |
| Motor Horsepower | 1/70 hp |
| For Ventilation Type | Exhaust |
| Standards | CE Compliant, UL/cUL Listed, RoHS Compliant |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
