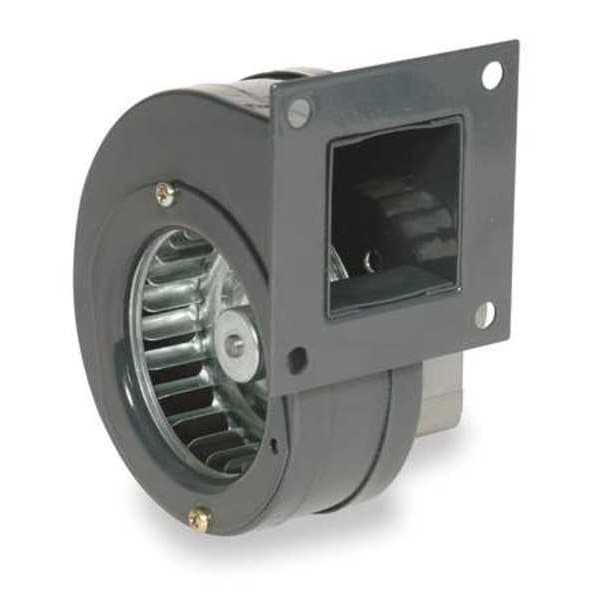

Rectangular OEM Blower, 2836 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 102 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 1.25 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 3-1/8 in |
| Number of Speeds | 1 |
| Overall Height | 5-11/16 in |
| Overall Width | 5-7/8 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 3-15/16 in |
| Blower Motor Type | Shaded Pole |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Hz | 60 |
| Housing Color | Gray |
| Outlet Width | 2-11/16 in |
| Dimension K | 3-9/16 in |
| Dimension J | 4-1/16 in |
| RPM | 2,836 |
| Replaces | 4C763 |
| CFM @ 0.400-In. SP | 85 |
| Dimension B | 6-3/8 in |
| Outlet Height | 2-1/8 in |
| Item | OEM Blower |
| Dimension L | 3-3/8 in |
| Dimension M | 2-7/8 in |
| CFM @ 0.000-In. SP | 104 |
| Dimension C | 5-7/8 in |
| Lead Length | 13 in |
| Dimension F | 2-1/2 in |
| Motor Insulation | Class B |
| Blower Wheel Width | 1-7/8 in |
| Dimension D | 2-11/16 in |
| CFM @ 0.300-In. SP | 94 |
| Max. Ambient Temp. | 104 deg F |
| Max. Inlet Temp. | 104 deg F |
| CFM @ 0.500-In. SP | 74 |
| Housing Finish | Enamel |
| Mounting Position | All Position |
| Bearing Type | Ball |
| Wheel Type | Forward-Curved |
| Dimension A | 5-5/16 in |
| CFM @ 0.200-In. SP | 98 |
| Overall Depth | 5-1/4 in |
| Motor Enclosure | Open |
| Dimension E | 5-11/16 in |
| Airflow @ 0.125 in SP | Not Applicable |
| Market | Commercial, Industrial, Residential |
| Airflow @ 3.500 in SP | Not Applicable |
| Airflow @ 0.750 in SP | Not Applicable |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Airflow @ 11.00 in SP | Not Applicable |
| Shaft Diameter | 8 mm |
| Hazardous Location Application | No |
| Housing Width | 5-7/8 in |
| Chemical Resistant | No |
| Airflow @ 8.000 in SP | Not Applicable |
| Airflow @ 6.000 in SP | Not Applicable |
| Airflow @ 9.000 in SP | Not Applicable |
| Motor IP Rating | IP00 |
| Thermal Overload Protection | Yes |
| Maximum Ambient Temperature | 104 deg F |
| Flange Size | 4-1/16 in W x 3-9/16 in H |
| Replacement For | 4C763 |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Minimum Fan Speed | 0 RPM |
| For High-Static Pressure Applications | No |
| Airflow @ 3.000 in SP | Not Applicable |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Airflow @ 4.500 in SP | Not Applicable |
| Outlet Shape | Rectangular |
| Speed Controllable | No |
| Maximum Fan Speed | 2,836 rpm |
| Minimum Ambient Temperature | 14 deg F |
| Wheel Diameter | 3-7/8 in |
| Airflow @ 4.000 in SP | Not Applicable |
| Assembly | Assembled |
| Wheel Material Finish | Galvanized |
| Sound Level | Not Rated |
| Spark Resistant Construction Type | Not Rated |
| AMCA Fan Class | Not Rated |
| Mount Type | All Position |
| Motor Location | Out of Airstream |
| Flange Type | Flanged |
| Wheel Bore Diameter | 8 mm |
| Outlet Diameter | Not Applicable |
| Motor Frame Designation | C-frame motor |
| Housing Material Finish | Enamel |
| Airflow @ 1.000 in SP | Not Applicable |
| Housing Height | 5-11/16 in |
| Includes Mounting Hardware | No |
| High-Efficiency Motor | No |
| Airflow @ 0.250 in SP | 85 cfm |
| Airflow @ 2.000 in SP | Not Applicable |
| Airflow @ 12.00 in SP | Not Applicable |
| Includes Motor | Yes |
| Frequency | 60 Hz |
| Wheel Width | 1-7/8 in |
| Airflow @ 0.400 in SP | 85 cfm |
| Maximum Inlet Air Temperature | 104 deg F |
| Nameplate Voltage | 115V AC |
| Motor Insulation Class | B |
| Airflow @ 10.00 in SP | Not Applicable |
| Airflow @ 5.000 in SP | Not Applicable |
| Airflow @ 2.500 in SP | Not Applicable |
| Manufacturer Warranty Length | 1 yr Limited |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Airflow @ 0.100 in SP | 102 cfm |
| Brake Horsepower | 1/40 hp |
| Number of Inlets | 1 |
| Mounting Orientation | Multiposition |
| Inlet Diameter | 3-1/8 in |
| Includes Drive Package | Not Applicable |
| Airflow @ 13.00 in SP | Not Applicable |
| Motor Horsepower | 1/40 hp |
| Motor Duty Class | Continuous |
| Airflow @ 7.000 in SP | Not Applicable |
| Rotation | CW |
| Electrical Connection | Wire Leads |
| Corrosion Resistant | No |
| For Air Type | Clean Air |
| Motor Type | Shaded Pole |
| Resistance Properties | Corrosion Resistant |
| Airflow @ 0.000 in SP | 104 cfm |
| Airflow @ 0.500 in SP | 74 cfm |
| Current | 1.25 A |
| For Location | Indoor |
| Housing Depth | 5-1/4 in |
| Motor Speed | 2,815 rpm |
| Compatible Speed Control | No |
| Airflow @ 0.375 in SP | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Maximum Static Pressure | 0.625 in wc |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| OEM Replacement | Yes |
| Airflow @ 1.250 in SP | Not Applicable |
| Airflow @ 1.500 in SP | Not Applicable |
| Housing Material Gauge | 0.8 mm |
| Housing Material Grade | SPCC |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 115 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
