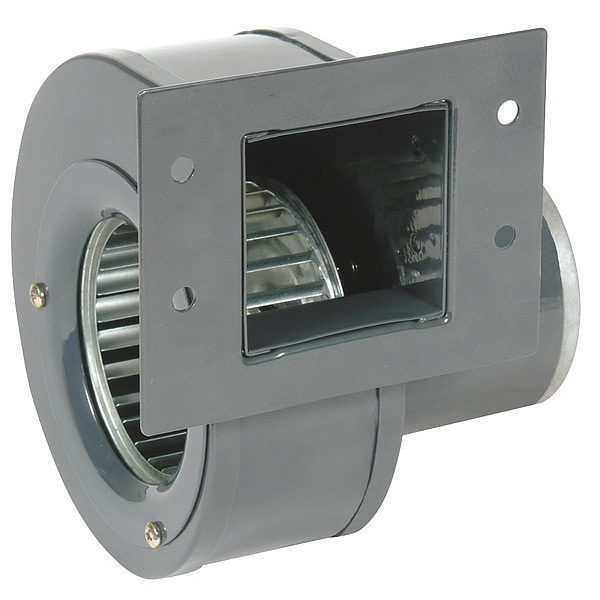

Rectangular OEM Blower, 2880 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 128 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.33 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 3-1/4 in |
| Number of Speeds | 1 |
| Overall Height | 6-1/2 in |
| Overall Width | 5-5/8 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 3-3/4 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 230V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| CFM @ 0.000-In. SP | 133 |
| CFM @ 0.200-In. SP | 126 |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Blower Wheel Width | 1-7/8 in |
| Dimension M | 1-1/2 in |
| Dimension B | 7-1/4 in |
| RPM | 2,880 |
| Dimension C | 5-5/8 in |
| CFM @ 0.300-In. SP | 119 |
| Bearing Type | Ball |
| Max. Inlet Temp. | 104 deg F |
| Mounting Position | All Position |
| Dimension F | 3-5/16 in |
| Motor Insulation | Class B |
| Dimension K | 4 in |
| Housing Finish | Enamel |
| Housing Color | Gray |
| Dimension E | 6-9/16 in |
| Wheel Type | Forward-Curved |
| CFM @ 0.500-In. SP | 105 |
| Lead Length | 13 in |
| Max. Ambient Temp. | 104 deg F |
| Dimension J | 5-1/8 in |
| Dimension A | 6-9/16 in |
| Item | OEM Blower |
| Replaces | 2C915 |
| Overall Depth | 6-1/2 in |
| Outlet Height | 2-1/2 in |
| Outlet Width | 2-1/2 in |
| Hz | 50/60 |
| Dimension D | 2-5/8 in |
| Motor Enclosure | Open |
| CFM @ 0.400-In. SP | 112 |
| Dimension L | 4-1/8 in |
| Airflow @ 1.500 in SP | Not Applicable |
| Corrosion Resistant | No |
| Motor IP Rating | IP20 |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, The Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Rotation | CW |
| Airflow @ 3.500 in SP | Not Applicable |
| Airflow @ 7.000 in SP | Not Applicable |
| Airflow @ 0.400 in SP | 112 cfm |
| Current | 0.33 A |
| Airflow @ 4.000 in SP | Not Applicable |
| Motor Insulation Class | B |
| Frequency | 50/60 Hz |
| Assembly | Assembled |
| Airflow @ 5.000 in SP | Not Applicable |
| Motor Frame Designation | 3.3" PSC Motor |
| Compatible Speed Control | No |
| Nameplate Voltage | 230V AC |
| Wheel Diameter | 3-3/4 in |
| Wheel Material Finish | Galvanized |
| Airflow @ 3.000 in SP | Not Applicable |
| Airflow @ 0.000 in SP | 133 cfm |
| Brake Horsepower | 1/30 hp |
| Airflow @ 1.000 in SP | Not Applicable |
| Includes Mounting Hardware | No |
| Resistance Properties | Corrosion Resistant |
| Airflow @ 0.500 in SP | 105 cfm |
| For High-Static Pressure Applications | No |
| Housing Width | 5-5/8 in |
| Chemical Resistant | No |
| Airflow @ 2.500 in SP | Not Applicable |
| Housing Height | 6-1/2 in |
| Thermal Overload Protection | Yes |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| AMCA Fan Class | Not Rated |
| Motor Speed | 2,880 rpm |
| Airflow @ 9.000 in SP | Not Applicable |
| Flange Size | 5-1/8 in W x 4 in H |
| Includes Drive Package | Not Applicable |
| Shaft Diameter | 8 mm |
| Motor Horsepower | 1/30 hp |
| Housing Material Grade | SPCC |
| Electrical Connection | Wire Leads |
| Motor Location | Out of Airstream |
| Hazardous Location Application | No |
| Maximum Static Pressure | 1.125 in wc |
| Outlet Diameter | Not Applicable |
| Motor Duty Class | Continuous |
| Airflow @ 12.00 in SP | Not Applicable |
| Replacement For | 2C915 |
| Includes Motor | Yes |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Wheel Bore Diameter | 8 mm |
| Number of Inlets | 1 |
| Market | Commercial, Industrial, Residential |
| Airflow @ 0.250 in SP | 119 cfm |
| Airflow @ 1.250 in SP | Not Applicable |
| Inlet Diameter | 3-1/4 in |
| Airflow @ 10.00 in SP | Not Applicable |
| Motor Type | Permanent Split Capacitor |
| Sound Level | Not Rated |
| Hazardous Location Specification | Not Applicable |
| Airflow @ 0.375 in SP | Not Applicable |
| Airflow @ 0.125 in SP | Not Applicable |
| For Location | Indoor |
| Housing Material Gauge | 1 mm |
| Maximum Fan Speed | 2,880 rpm |
| Spark Resistant Construction Type | Not Rated |
| OEM Replacement | Yes |
| Outlet Shape | Rectangular |
| Airflow @ 0.100 in SP | 128 cfm |
| Flange Type | Flanged |
| Housing Depth | 6-1/2 in |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Airflow @ 0.750 in SP | Not Applicable |
| Mounting Orientation | Multiposition |
| Housing Material Finish | Enamel |
| Minimum Fan Speed | 0 RPM |
| Airflow @ 8.000 in SP | Not Applicable |
| For Air Type | Clean Air |
| Speed Controllable | No |
| Manufacturer Warranty Length | 1 yr Limited |
| Airflow @ 6.000 in SP | Not Applicable |
| Maximum Inlet Air Temperature | 104 deg F |
| Airflow @ 13.00 in SP | Not Applicable |
| Mount Type | All Position |
| Airflow @ 4.500 in SP | Not Applicable |
| Airflow @ 2.000 in SP | Not Applicable |
| Airflow @ 11.00 in SP | Not Applicable |
| Wheel Width | 1-7/8 in |
| Maximum Ambient Temperature | 104 deg F |
| High-Efficiency Motor | No |
| Minimum Ambient Temperature | 14 deg F |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 230 |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
