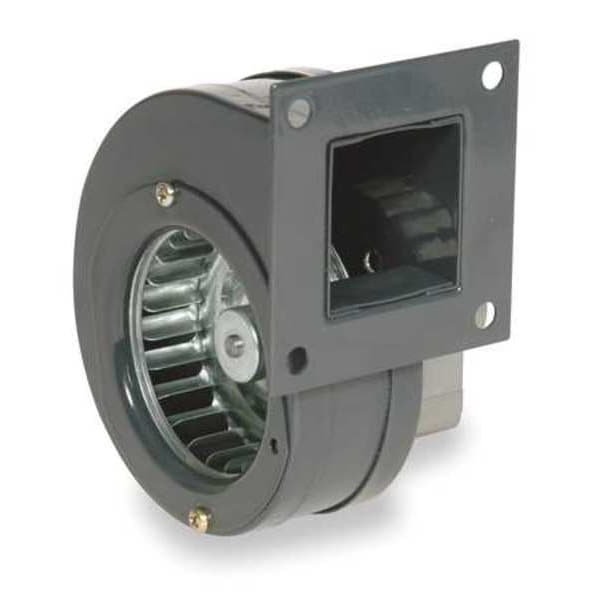

Rectangular OEM Blower, 2950 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 72 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.5 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 2-5/8 in |
| Number of Speeds | 1 |
| Overall Height | 5-11/16 in |
| Overall Width | 5 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 2-15/16 in |
| Blower Motor Type | Shaded Pole |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Dimension E | 5-11/16 in |
| Dimension L | 3-3/8 in |
| RPM | 2,950 |
| Blower Wheel Width | 1-7/8 in |
| CFM @ 0.400-In. SP | 56 |
| Replaces | 4C762 |
| Max. Inlet Temp. | 104 deg F |
| Dimension C | 5-1/16 in |
| Overall Depth | 5-1/4 in |
| Motor Insulation | Class B |
| Hz | 60 |
| Dimension M | 2-7/8 in |
| Dimension F | 2-1/2 in |
| Wheel Type | Forward-Curved |
| Dimension J | 4-1/16 in |
| Housing Finish | Enamel |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| CFM @ 0.000-In. SP | 75 |
| Dimension B | 6-5/16 in |
| Motor Enclosure | Open |
| CFM @ 0.300-In. SP | 62 |
| Max. Ambient Temp. | 104 deg F |
| Dimension K | 3-9/16 in |
| Outlet Height | 2-1/8 in |
| Dimension D | 2-3/4 in |
| CFM @ 0.200-In. SP | 66 |
| Bearing Type | Ball |
| Item | OEM Blower |
| Dimension A | 5-5/16 in |
| Outlet Width | 2-11/16 in |
| CFM @ 0.500-In. SP | 44 |
| Housing Color | Gray |
| Mounting Position | All Position |
| Lead Length | 13 in |
| Wheel Material Finish | Galvanized |
| Spark Resistant Construction Type | Not Rated |
| Airflow @ 3.500 in SP | Not Applicable |
| Airflow @ 6.000 in SP | Not Applicable |
| For Location | Indoor |
| Airflow @ 0.000 in SP | 75 cfm |
| For Air Type | Clean Air |
| Airflow @ 1.000 in SP | Not Applicable |
| Corrosion Resistant | No |
| Minimum Fan Speed | 0 RPM |
| For High-Static Pressure Applications | No |
| Motor Type | Shaded Pole |
| Airflow @ 0.500 in SP | 44 cfm |
| Shaft Diameter | 6 mm |
| Includes Motor | Yes |
| Airflow @ 0.375 in SP | Not Applicable |
| Sound Level | Not Rated |
| Airflow @ 5.000 in SP | Not Applicable |
| Electrical Connection | Wire Leads |
| High-Efficiency Motor | No |
| Current | 0.5 A |
| Airflow @ 0.400 in SP | 56 cfm |
| Airflow @ 9.000 in SP | Not Applicable |
| Housing Material Grade | SPCC |
| Hazardous Location Application | No |
| AMCA Fan Class | Not Rated |
| Hazardous Location Specification | Not Applicable |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Housing Height | 5-11/16 in |
| Airflow @ 7.000 in SP | Not Applicable |
| Compatible Speed Control | No |
| Airflow @ 0.250 in SP | 62 cfm |
| Minimum Ambient Temperature | 14 deg F |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, The Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Airflow @ 13.00 in SP | Not Applicable |
| Airflow @ 2.500 in SP | Not Applicable |
| Nameplate Voltage | 115V AC |
| Outlet Diameter | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Airflow @ 1.250 in SP | Not Applicable |
| Housing Material Gauge | 0.8 mm |
| Airflow @ 1.500 in SP | Not Applicable |
| Housing Material Finish | Enamel |
| Assembly | Assembled |
| Thermal Overload Protection | Yes |
| Inlet Diameter | 2-5/8 in |
| Outlet Shape | Rectangular |
| Flange Type | Flanged |
| Wheel Width | 1-7/8 in |
| Mount Type | All Position |
| Airflow @ 3.000 in SP | Not Applicable |
| Airflow @ 11.00 in SP | Not Applicable |
| Number of Inlets | 1 |
| Frequency | 60 Hz |
| Motor Horsepower | 1/85 hp |
| Flange Size | 4-1/16 in W x 3-9/16 in H |
| Housing Depth | 5-1/4 in |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Airflow @ 10.00 in SP | Not Applicable |
| Airflow @ 4.500 in SP | Not Applicable |
| Housing Width | 5 in |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Replacement For | 4C762 |
| Motor Speed | 2,830 rpm |
| Includes Mounting Hardware | No |
| Brake Horsepower | 1/85 hp |
| Airflow @ 4.000 in SP | Not Applicable |
| Maximum Ambient Temperature | 104 deg F |
| Motor Location | Out of Airstream |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Airflow @ 8.000 in SP | Not Applicable |
| Maximum Fan Speed | 2,950 rpm |
| Airflow @ 0.125 in SP | Not Applicable |
| Airflow @ 2.000 in SP | Not Applicable |
| Airflow @ 0.100 in SP | 72 cfm |
| Maximum Static Pressure | 0.625 in wc |
| Motor Frame Designation | C-frame motor |
| Maximum Inlet Air Temperature | 104 deg F |
| Wheel Diameter | 2-7/8 in |
| Includes Drive Package | Not Applicable |
| Wheel Bore Diameter | 6 mm |
| Airflow @ 0.750 in SP | Not Applicable |
| Mounting Orientation | Multiposition |
| Motor Duty Class | Continuous |
| Market | Commercial, Industrial, Residential |
| Motor Insulation Class | B |
| Chemical Resistant | No |
| Motor IP Rating | IP00 |
| Manufacturer Warranty Length | 1 yr Limited |
| Airflow @ 12.00 in SP | Not Applicable |
| Speed Controllable | No |
| OEM Replacement | Yes |
| Rotation | CW |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 115 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
