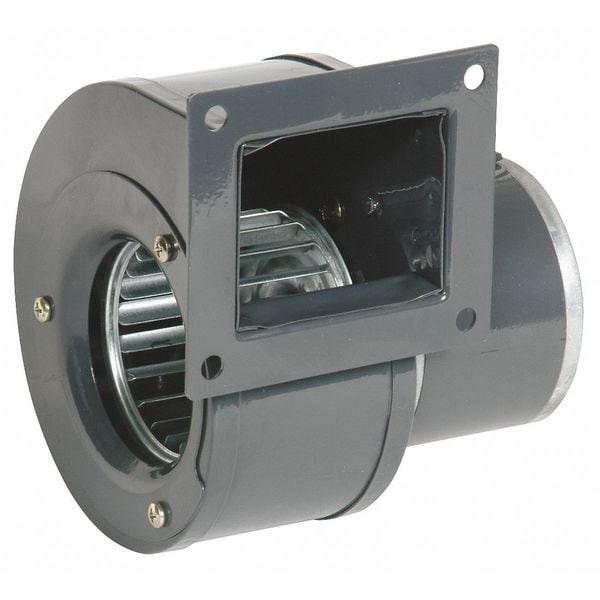

Rectangular OEM Blower, 3010 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 85 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.31 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 2-5/8 in |
| Number of Speeds | 1 |
| Overall Height | 5-3/4 in |
| Overall Width | 5-3/8 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 3 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| Mounting Position | All Position |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Max. Inlet Temp. | 104 deg F |
| Dimension M | 2-7/8 in |
| CFM @ 0.200-In. SP | 78 |
| Dimension F | 3-5/16 in |
| Dimension C | 5-3/8 in |
| CFM @ 0.500-In. SP | 58 |
| RPM | 3,010 |
| Motor Insulation | Class B |
| Bearing Type | Ball |
| CFM @ 0.000-In. SP | 89 |
| Outlet Width | 2-11/16 in |
| Dimension K | 3-9/16 in |
| CFM @ 0.300-In. SP | 74 |
| Blower Wheel Width | 1-7/8 in |
| Dimension B | 6-5/16 in |
| Hz | 50/60 |
| Motor Enclosure | Open |
| Wheel Type | Forward-Curved |
| Dimension A | 5-3/8 in |
| Outlet Height | 2-3/16 in |
| Dimension J | 4-1/16 in |
| Replaces | 4C004 |
| Housing Color | Gray |
| Overall Depth | 5-3/8 in |
| Item | OEM Blower |
| CFM @ 0.400-In. SP | 66 |
| Max. Ambient Temp. | 104 deg F |
| Dimension D | 2-3/4 in |
| Dimension E | 5-11/16 in |
| Lead Length | 13 in |
| Dimension L | 3-3/8 in |
| Housing Finish | Enamel |
| For High-Static Pressure Applications | No |
| Airflow @ 6.000 in SP | Not Applicable |
| For Location | Indoor |
| Motor IP Rating | IP20 |
| Airflow @ 9.000 in SP | Not Applicable |
| Brake Horsepower | 0.01 HP |
| Includes Motor | Yes |
| Motor Duty Class | Continuous |
| Outlet Diameter | Not Applicable |
| Housing Height | 5-3/4 in |
| Airflow @ 5.000 in SP | Not Applicable |
| Airflow @ 7.000 in SP | Not Applicable |
| Motor Type | Permanent Split Capacitor |
| Airflow @ 0.375 in SP | Not Applicable |
| Wheel Diameter | 3 in |
| Wheel Bore Diameter | 8 mm |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Airflow @ 1.000 in SP | Not Applicable |
| Housing Material Gauge | 0.8 mm |
| Maximum Static Pressure | 0.75 in wc |
| Flange Type | Flanged |
| Sound Level | Not Rated |
| Includes Drive Package | Not Applicable |
| Motor Insulation Class | B |
| Wheel Width | 1-7/8 in |
| Airflow @ 4.000 in SP | Not Applicable |
| Shaft Diameter | 8 mm |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Airflow @ 1.250 in SP | Not Applicable |
| OEM Replacement | Yes |
| Airflow @ 4.500 in SP | Not Applicable |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Airflow @ 8.000 in SP | Not Applicable |
| Corrosion Resistant | No |
| Manufacturer Warranty Length | 1 yr Limited |
| Minimum Fan Speed | 0 RPM |
| Outlet Shape | Rectangular |
| Airflow @ 12.00 in SP | Not Applicable |
| Hazardous Location Application | No |
| AMCA Fan Class | Not Rated |
| Airflow @ 2.000 in SP | Not Applicable |
| Motor Frame Designation | 3.3" PSC motor |
| Mount Type | All Position |
| Wheel Material Finish | Galvanized |
| Assembly | Assembled |
| Housing Material Finish | Enamel |
| Chemical Resistant | No |
| Compatible Speed Control | No |
| Airflow @ 11.00 in SP | Not Applicable |
| Housing Width | 5-3/8 in |
| Mounting Orientation | Multiposition |
| Frequency | 50/60 Hz |
| Maximum Fan Speed | 3,010 rpm |
| Airflow @ 3.500 in SP | Not Applicable |
| Airflow @ 0.400 in SP | 66 cfm |
| Airflow @ 1.500 in SP | Not Applicable |
| Airflow @ 0.125 in SP | Not Applicable |
| Airflow @ 2.500 in SP | Not Applicable |
| Includes Mounting Hardware | No |
| High-Efficiency Motor | No |
| Number of Inlets | 1 |
| Housing Depth | 5-3/8 in |
| Flange Size | 4-1/16 in W x 3-9/16 in H |
| Current | 0.31 A |
| Motor Speed | 3,020 rpm |
| Airflow @ 0.100 in SP | 85 cfm |
| Airflow @ 0.250 in SP | 76 cfm |
| Electrical Connection | Wire Leads |
| Maximum Inlet Air Temperature | 104 deg F |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Airflow @ 0.000 in SP | 89 cfm |
| Airflow @ 0.500 in SP | 58 cfm |
| Hazardous Location Specification | Not Applicable |
| Replacement For | 4C004 |
| Inlet Diameter | 2-5/8 in |
| Resistance Properties | Corrosion Resistant |
| Airflow @ 3.000 in SP | Not Applicable |
| Airflow @ 10.00 in SP | Not Applicable |
| Housing Material Grade | SPCC |
| For Air Type | Clean Air |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Spark Resistant Construction Type | Not Rated |
| Speed Controllable | No |
| Motor Horsepower | 0.01 HP |
| Maximum Ambient Temperature | 104 deg F |
| Rotation | CW |
| Thermal Overload Protection | Yes |
| Market | Commercial, Industrial, Residential |
| Minimum Ambient Temperature | 14 deg F |
| Nameplate Voltage | 115V AC |
| Motor Location | Out of Airstream |
| Airflow @ 0.750 in SP | Not Applicable |
| Airflow @ 13.00 in SP | Not Applicable |
| Wheel Material | Steel |
| Voltage | 115 |
| Mounting | All Position |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
