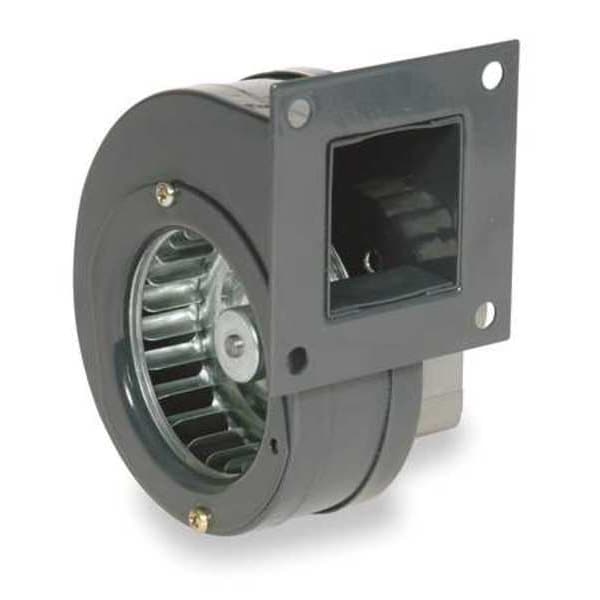

Rectangular OEM Blower, 3080 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 46 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.5 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 2-9/16 in |
| Number of Speeds | 1 |
| Overall Height | 4-1/2 in |
| Overall Width | 4-3/16 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 2-15/16 in |
| Blower Motor Type | Shaded Pole |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Dimension A | 4-1/2 in |
| Motor Enclosure | Open |
| Overall Depth | 4-1/2 in |
| Hz | 60 |
| Dimension J | 3-7/16 in |
| Dimension M | 2-7/16 in |
| Dimension D | 2-1/8 in |
| Mounting Position | All Position |
| Replaces | 4C761 |
| Item | OEM Blower |
| Housing Color | Gray |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Dimension L | 2-13/16 in |
| CFM @ 0.200-In. SP | 44 |
| CFM @ 0.300-In. SP | 39 |
| Dimension B | 5-5/16 in |
| Outlet Height | 1-5/8 in |
| Dimension K | 3-1/8 in |
| Outlet Width | 2 in |
| CFM @ 0.400-In. SP | 30 |
| Lead Length | 13 in |
| Dimension C | 4-3/16 in |
| CFM @ 0.500-In. SP | 13 |
| Dimension E | 4-11/16 in |
| Motor Insulation | Class B |
| Bearing Type | Ball |
| Housing Finish | Enamel |
| Dimension F | 2-1/2 in |
| Blower Wheel Width | 1-1/2 in |
| RPM | 3,080 |
| CFM @ 0.000-In. SP | 49 |
| Max. Inlet Temp. | 104 deg F |
| Max. Ambient Temp. | 104 deg F |
| Wheel Type | Forward-Curved |
| OEM Replacement | Yes |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Airflow @ 0.375 in SP | Not Applicable |
| Includes Drive Package | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Mount Type | All Position |
| Minimum Ambient Temperature | 14 deg F |
| Maximum Fan Speed | 3,080 rpm |
| Airflow @ 2.000 in SP | Not Applicable |
| Nameplate Voltage | 115V AC |
| Outlet Diameter | Not Applicable |
| Manufacturer Warranty Length | 1 yr Limited |
| Airflow @ 1.500 in SP | Not Applicable |
| Airflow @ 5.000 in SP | Not Applicable |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Motor Horsepower | 1/130 hp |
| Chemical Resistant | No |
| Outlet Shape | Rectangular |
| Airflow @ 3.000 in SP | Not Applicable |
| High-Efficiency Motor | No |
| Maximum Ambient Temperature | 104 deg F |
| Spark Resistant Construction Type | Not Rated |
| Airflow @ 1.250 in SP | Not Applicable |
| Corrosion Resistant | No |
| Motor Type | Shaded Pole |
| Airflow @ 8.000 in SP | Not Applicable |
| Motor Speed | 3,080 rpm |
| Replacement For | 4C761 |
| Airflow @ 6.000 in SP | Not Applicable |
| Includes Motor | Yes |
| Airflow @ 0.250 in SP | 41 cfm |
| Inlet Diameter | 2-1/2 in |
| For Air Type | Clean Air |
| Airflow @ 13.00 in SP | Not Applicable |
| Number of Inlets | 1 |
| Housing Material Grade | SPCC |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, The Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Thermal Overload Protection | Yes |
| Frequency | 60 Hz |
| Speed Controllable | No |
| Airflow @ 4.000 in SP | Not Applicable |
| Motor Location | Out of Airstream |
| Airflow @ 10.00 in SP | Not Applicable |
| Airflow @ 0.500 in SP | 13 cfm |
| Flange Type | Flanged |
| Wheel Width | 1-1/2 in |
| Airflow @ 0.400 in SP | 30 cfm |
| Airflow @ 0.125 in SP | Not Applicable |
| Airflow @ 0.750 in SP | Not Applicable |
| Motor Insulation Class | B |
| Motor Frame Designation | C-frame motor |
| Airflow @ 11.00 in SP | Not Applicable |
| Wheel Diameter | 2-7/8 in |
| Airflow @ 9.000 in SP | Not Applicable |
| Wheel Material Finish | Galvanized |
| Housing Material Gauge | 0.8 mm |
| Airflow @ 0.000 in SP | 49 cfm |
| Motor IP Rating | IP20 |
| Includes Mounting Hardware | No |
| Market | Commercial, Industrial, Residential |
| Compatible Speed Control | No |
| Housing Width | 4-3/16 in |
| Housing Material Finish | Enamel |
| Airflow @ 12.00 in SP | Not Applicable |
| Current | 0.5 A |
| For High-Static Pressure Applications | No |
| Brake Horsepower | 1/130 hp |
| Mounting Orientation | Multiposition |
| Maximum Inlet Air Temperature | 104 deg F |
| Airflow @ 2.500 in SP | Not Applicable |
| Hazardous Location Application | No |
| Sound Level | Not Rated |
| Airflow @ 7.000 in SP | Not Applicable |
| Airflow @ 1.000 in SP | Not Applicable |
| Housing Height | 4-1/2 in |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Airflow @ 0.100 in SP | 46 cfm |
| Airflow @ 4.500 in SP | Not Applicable |
| Rotation | CW |
| Maximum Static Pressure | 0.625 in wc |
| AMCA Fan Class | Not Rated |
| Assembly | Assembled |
| Wheel Bore Diameter | 6 mm |
| Motor Duty Class | Continuous |
| Hazardous Location Specification | Not Applicable |
| Shaft Diameter | 6 mm |
| Electrical Connection | Wire Leads |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Minimum Fan Speed | 0 RPM |
| For Location | Indoor |
| Flange Size | 3-7/16 in W x 3-1/8 in H |
| Housing Depth | 4-1/2 in |
| Airflow @ 3.500 in SP | Not Applicable |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 115 |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
