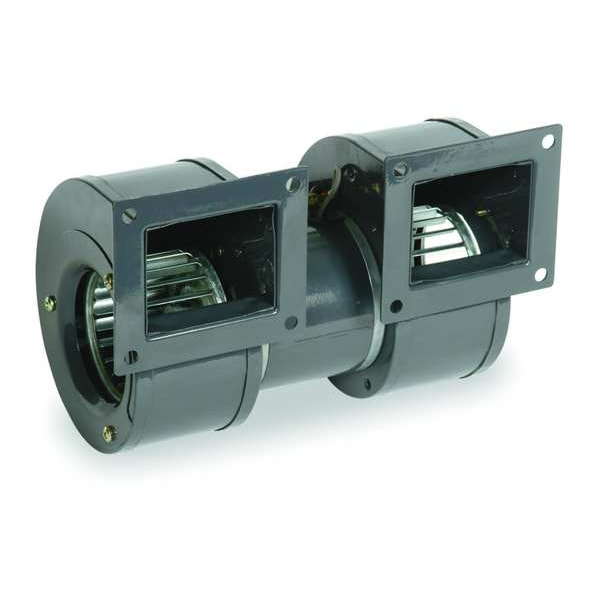

Rectangular OEM Blower, 3150 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 178 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.72 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 2-5/8 in |
| Number of Speeds | 1 |
| Overall Height | 5-3/4 in |
| Overall Width | 9-3/4 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 2-15/16 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| CFM @ 0.400-In. SP | 140 |
| Dimension C | 8-7/16 in |
| Motor Insulation | Class B |
| Dimension L | 3-3/8 in |
| Blower Wheel Width | 1-7/8 in |
| Dimension M | 2-7/8 in |
| Lead Length | 13 in |
| Motor Enclosure | Open |
| Dimension J | 4-1/16 in |
| Overall Depth | 5-3/8 in |
| Bearing Type | Ball |
| Dimension F | 3-5/16 in |
| Dimension D | 2-3/4 in |
| CFM @ 0.300-In. SP | 158 |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| RPM | 3,150 |
| Replaces | 4C015 |
| Mounting Position | All Position |
| Outlet Width | 2-11/16 in |
| Dimension A | 5-3/8 in |
| Item | OEM Blower |
| CFM @ 0.000-In. SP | 184 |
| CFM @ 0.500-In. SP | 120 |
| Hz | 50/60 |
| Dimension B | 6-3/8 in |
| Dimension K | 3-9/16 in |
| Outlet Height | 2-1/8 in |
| Housing Color | Gray |
| Housing Finish | Enamel |
| Max. Ambient Temp. | 104 deg F |
| CFM @ 0.200-In. SP | 170 |
| Dimension E | 6-3/8 in |
| Wheel Type | Forward-Curved |
| Max. Inlet Temp. | 104 deg F |
| Includes Drive Package | Not Applicable |
| Motor Insulation Class | B |
| Assembly | Assembled |
| Hazardous Location Specification | Not Applicable |
| Maximum Ambient Temperature | 104 deg F |
| Airflow @ 7.000 in SP | Not Applicable |
| OEM Replacement | Yes |
| Housing Material Grade | SPCC |
| Outlet Shape | Rectangular |
| Maximum Static Pressure | 0.75 in wc |
| Wheel Diameter | 2-7/8 in |
| Airflow @ 5.000 in SP | Not Applicable |
| Airflow @ 0.750 in SP | Not Applicable |
| Sound Level | Not Rated |
| Nameplate Voltage | 115V AC |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| For Location | Indoor |
| Outlet Diameter | Not Applicable |
| Airflow @ 0.250 in SP | 161 cfm |
| Airflow @ 1.250 in SP | Not Applicable |
| Motor Frame Designation | 3.3" PSC Motor |
| Airflow @ 0.100 in SP | 178 cfm |
| Airflow @ 0.375 in SP | Not Applicable |
| Housing Material Gauge | 0.8 mm |
| Airflow @ 3.500 in SP | Not Applicable |
| Spark Resistant Construction Type | Not Rated |
| Airflow @ 4.000 in SP | Not Applicable |
| Airflow @ 2.500 in SP | Not Applicable |
| Mounting Orientation | Multiposition |
| For Air Type | Clean Air |
| Thermal Overload Protection | Yes |
| Airflow @ 13.00 in SP | Not Applicable |
| Electrical Connection | Wire Leads |
| Motor Type | Permanent Split Capacitor |
| Flange Size | 4-1/16 in W x 3-9/16 in H |
| Airflow @ 6.000 in SP | Not Applicable |
| Motor IP Rating | IP20 |
| For High-Static Pressure Applications | No |
| Manufacturer Warranty Length | 1 yr Limited |
| Airflow @ 12.00 in SP | Not Applicable |
| Motor Speed | 3,150 rpm |
| Airflow @ 8.000 in SP | Not Applicable |
| Replacement For | 4C015 |
| Includes Mounting Hardware | No |
| Airflow @ 3.000 in SP | Not Applicable |
| Airflow @ 0.500 in SP | 120 cfm |
| Housing Depth | 5-3/8 in |
| Wheel Bore Diameter | 8 mm |
| Resistance Properties | Corrosion Resistant |
| Airflow @ 0.125 in SP | Not Applicable |
| Frequency | 50/60 Hz |
| High-Efficiency Motor | No |
| Housing Material Finish | Enamel |
| Rotation | CW, CCW |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Double Blower Provides Smooth and Quiet Operation |
| Number of Inlets | 1 |
| Airflow @ 0.000 in SP | 184 cfm |
| Corrosion Resistant | No |
| Airflow @ 4.500 in SP | Not Applicable |
| Maximum Inlet Air Temperature | 104 deg F |
| AMCA Fan Class | Not Rated |
| Airflow @ 9.000 in SP | Not Applicable |
| Airflow @ 2.000 in SP | Not Applicable |
| Compatible Speed Control | No |
| Airflow @ 0.400 in SP | 140 cfm |
| Minimum Fan Speed | 0 RPM |
| Airflow @ 1.000 in SP | Not Applicable |
| Speed Controllable | No |
| Maximum Fan Speed | 3,150 rpm |
| Wheel Width | 1-7/8 in |
| Brake Horsepower | 1/40 hp |
| Includes Motor | Yes |
| Mount Type | All Position |
| Motor Duty Class | Continuous |
| Motor Horsepower | 1/40 hp |
| Housing Height | 5-3/4 in |
| Flange Type | Flanged |
| Housing Width | 8-7/16 in |
| Airflow @ 1.500 in SP | Not Applicable |
| Airflow @ 11.00 in SP | Not Applicable |
| Airflow @ 10.00 in SP | Not Applicable |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Market | Commercial, Industrial, Residential |
| Motor Location | Out of Airstream |
| Minimum Ambient Temperature | 14 deg F |
| Chemical Resistant | No |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Shaft Diameter | 8 mm |
| Wheel Material Finish | Galvanized |
| Inlet Diameter | 2-5/8 in |
| Current | 0.72 A |
| Hazardous Location Application | No |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 115 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
