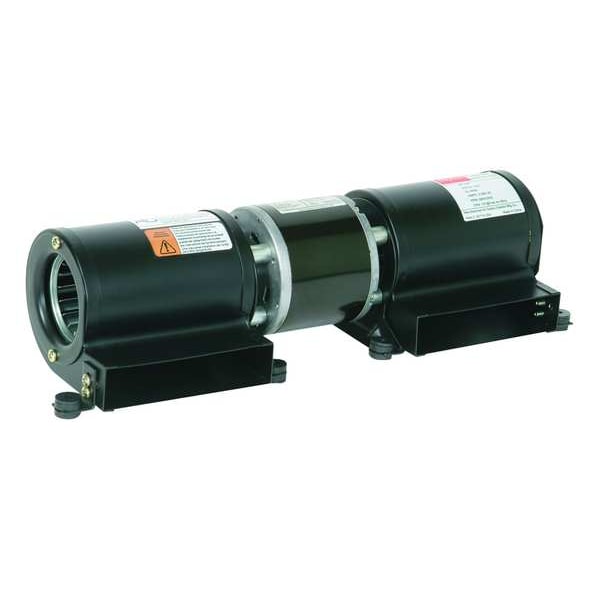

Rectangular OEM Blower, 3200 RPM, 1 Phase, Direct Drive, Steel
| CFM @ 0.100-In. SP | 119 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.39 |
| Housing Material | Steel |
| Inlet Dia. | 2-1/8 in |
| Overall Height | 3-7/8 in |
| Overall Width | 14-5/8 in |
| Phase | 1 |
| Blower Item | Low Profile Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | No |
| Blower Wheel Diameter | 2-1/2 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Motor Enclosure | Open |
| Overall Depth | 3-5/8 in |
| Max. Ambient Temp. | 104 deg F |
| CFM @ 0.000-In. SP | 127 |
| Mounting Position | All Position |
| CFM @ 0.200-In. SP | 105 |
| Hz | 50/60 |
| Housing Color | Black |
| Outlet Height | 1 in |

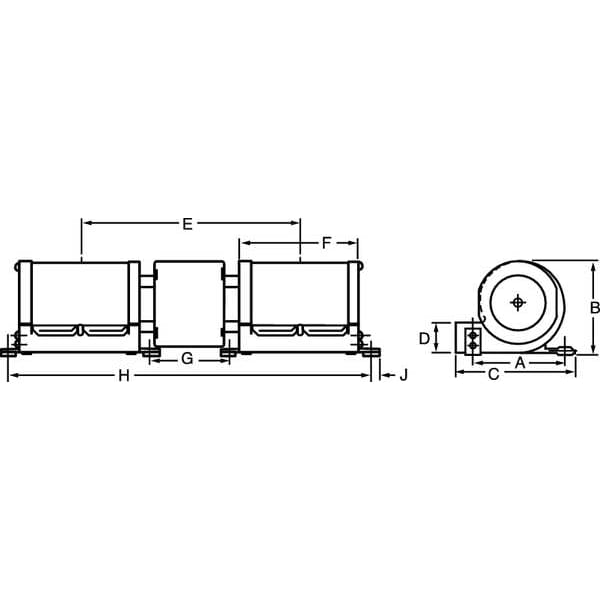

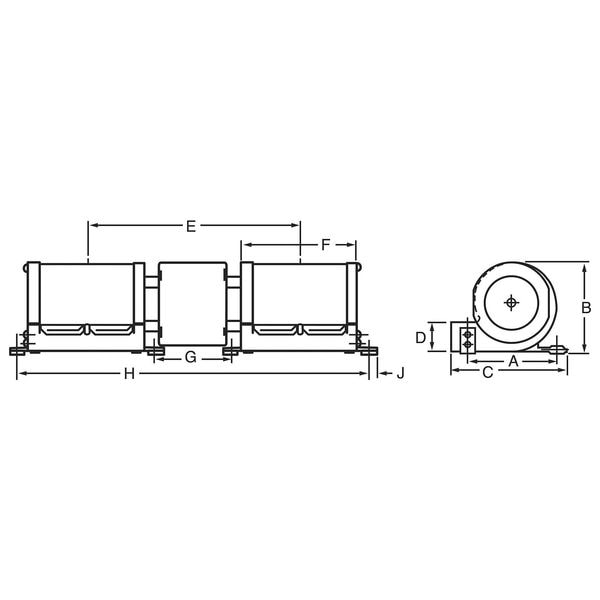

| Dimension B | 3-7/8 in |
| Bearing Type | Ball |
| Blower Wheel Width | 3-3/4 in |
| Item | OEM Blower |
| RPM | 3,200 |
| Dimension D | 1-1/8 in |
| Dimension E | 8-13/16 in |
| Max. Inlet Temp. | 104 deg F |
| Wheel Type | Forward-Curved |
| Replaces | 4C825 |
| Outlet Width | 4-1/2 in |
| Dimension H | 14-1/2 in |
| Dimension C | 4-11/16 in |
| Lead Length | 17 in |
| Dimension A | 3-5/8 in |
| Motor Insulation | Class B |
| Dimension F | 4-5/8 in |
| Housing Finish | Flat |
| Dimension J | 5/16 in |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Dimension G | 3 3/8 in |
| Airflow @ 0.200-In. SP | 105 cfm |
| Flange Type | Non-Flanged |
| Motor Horsepower | 1/70 hp |
| Standards | CE Compliant, UL/cUL Listed, RoHS Compliant |
| Assembly | Assembled |
| Airflow @ 0.250 in SP | 95 cfm |
| Application | Corn Stoves, Electronic Equipment, Office Machines, Pellet Stoves, Ventilation for Cabinets |
| Inlet Diameter | 2-1/8 in |
| Housing Width | 3.6 in |
| Maximum Ambient Temperature | 104 deg F |
| Maximum Static Pressure | 0.5 in wc |
| Motor Insulation Class | B |
| Thermal Overload Protection | Yes |
| Airflow @ 0.000 in SP | 127 cfm |
| Housing Height | 3.8 in |
| OEM Replacement | 4C825 |
| Motor Speed | 3,200 rpm |
| Number of Inlets | 2 |
| Nameplate Voltage | 115V AC |
| Wheel Diameter | 2-1/2 in |
| Blower Type | Low-Profile Blower |
| Housing Depth | 4.6 in |
| Frequency | 50/60 Hz |
| Current | 0.39 A |
| Airflow @ 0.100 in SP | 119 cfm |
| Motor Duty Class | Continuous |
| Maximum Inlet Air Temperature | 104 deg F |
| Motor Type | Permanent Split Capacitor |
| Wheel Material | Steel |
| Outlet Shape | Rectangular |
| Mounting Orientation | Multiposition |
| Features | Ball Bearings with Cast-Aluminum End Shields, Blower Mounts in any Position to Provide Continuous-Duty Ventilation, Double Inlet Maximizes Airflow Efficiency, Forward-Curve Centrifugal Wheels Increase Airflow at Higher Pressures, Motor Has Automatic Thermal Protection and Class B Insulation |
| Housing Material Finish | Flat |
| Wheel Width | 3.7 in |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
