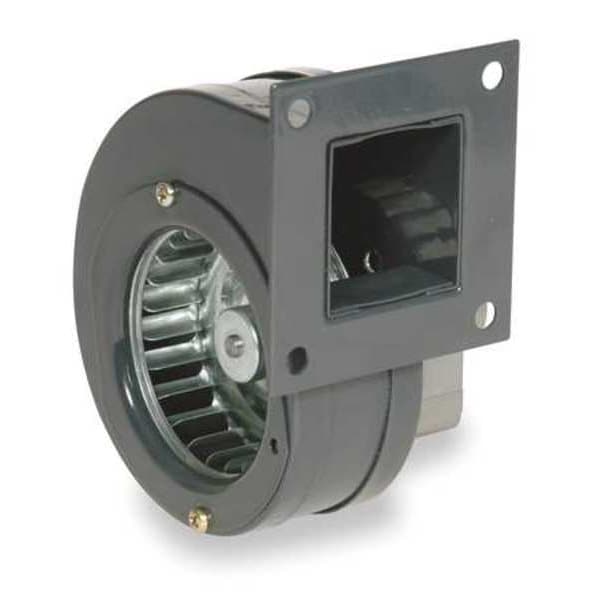

Rectangular OEM Blower, 3233 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 25 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.51 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 2-9/16 in |
| Number of Speeds | 1 |
| Overall Height | 4-5/8 in |
| Overall Width | 3-1/2 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 2-15/16 in |
| Blower Motor Type | Shaded Pole |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| RPM | 3,233 |
| Mounting Position | All Position |
| Motor Insulation | Class B |
| Outlet Width | 1-1/2 in |
| Outlet Height | 1-5/8 in |
| Dimension M | 2-7/16 in |
| Housing Finish | Enamel |
| CFM @ 0.400-In. SP | 3 |
| Dimension E | 4-5/8 in |
| Dimension D | 1-5/8 in |
| Item | OEM Blower |
| Dimension J | 2-15/16 in |
| Housing Color | Gray |
| Wheel Type | Forward-Curved |
| Hz | 60 |
| Blower Wheel Width | 1 in |
| Dimension L | 2-5/16 in |
| Lead Length | 13 in |
| CFM @ 0.000-In. SP | 30 |
| Dimension A | 4-1/2 in |
| Dimension K | 3-1/16 in |
| CFM @ 0.300-In. SP | 16.5 |
| Dimension F | 2-1/2 in |
| Max. Ambient Temp. | 104 deg F |
| CFM @ 0.200-In. SP | 21 |
| Max. Inlet Temp. | 104 deg F |
| Dimension C | 3-1/2 in |
| Replaces | 4C760 |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Overall Depth | 4-1/2 in |
| Bearing Type | Ball |
| Dimension B | 5-3/8 in |
| Motor Enclosure | Open |
| Current | 0.51 A |
| Housing Width | 3-1/2 in |
| Speed Controllable | No |
| Airflow @ 1.500 in SP | Not Applicable |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Airflow @ 0.375 in SP | Not Applicable |
| Airflow @ 5.000 in SP | Not Applicable |
| Shaft Diameter | 6 mm |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Maximum Ambient Temperature | 104 deg F |
| Airflow @ 0.250 in SP | 19 cfm |
| Airflow @ 10.00 in SP | Not Applicable |
| Motor Type | Shaded Pole |
| Airflow @ 0.100 in SP | 25 cfm |
| Airflow @ 3.500 in SP | Not Applicable |
| Brake Horsepower | 1/200 hp |
| Motor Speed | 3,250 rpm |
| Minimum Fan Speed | 0 RPM |
| Replacement For | 4C760 |
| Hazardous Location Specification | Not Applicable |
| Includes Mounting Hardware | No |
| Mounting Orientation | Multiposition |
| Motor Horsepower | 1/200 hp |
| Housing Depth | 4-1/2 in |
| Airflow @ 0.000 in SP | 30 cfm |
| Wheel Bore Diameter | 6 mm |
| Spark Resistant Construction Type | Not Rated |
| Electrical Connection | Wire Leads |
| Wheel Material Finish | Galvanized |
| Motor Duty Class | Continuous |
| OEM Replacement | Yes |
| Airflow @ 4.500 in SP | Not Applicable |
| Outlet Diameter | Not Applicable |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Airflow @ 0.125 in SP | Not Applicable |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Market | Commercial, Industrial, Residential |
| Inlet Diameter | 2-1/2 in |
| Assembly | Assembled |
| Housing Material Finish | Enamel |
| Airflow @ 1.250 in SP | Not Applicable |
| Thermal Overload Protection | Yes |
| Airflow @ 4.000 in SP | Not Applicable |
| Motor Insulation Class | B |
| High-Efficiency Motor | No |
| Flange Type | Flanged |
| Airflow @ 0.750 in SP | Not Applicable |
| For High-Static Pressure Applications | No |
| Housing Height | 4-5/8 in |
| Maximum Static Pressure | 0.375 in wc |
| Airflow @ 0.400 in SP | 3 cfm |
| Flange Size | 2-15/16 in W x 3-1/16 in H |
| Frequency | 60 Hz |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Number of Inlets | 1 |
| Mount Type | All Position |
| Airflow @ 2.000 in SP | Not Applicable |
| Includes Motor | Yes |
| Motor Location | Out of Airstream |
| Maximum Fan Speed | 3,233 rpm |
| Minimum Ambient Temperature | 14 deg F |
| Corrosion Resistant | No |
| Wheel Diameter | 2-7/8 in |
| Resistance Properties | Corrosion Resistant |
| Airflow @ 11.00 in SP | Not Applicable |
| Hazardous Location Application | No |
| Rotation | CW |
| Airflow @ 12.00 in SP | Not Applicable |
| Sound Level | Not Rated |
| Chemical Resistant | No |
| AMCA Fan Class | Not Rated |
| For Location | Indoor |
| Housing Material Grade | SPCC |
| Airflow @ 0.500 in SP | Not Applicable |
| Maximum Inlet Air Temperature | 104 deg F |
| Airflow @ 6.000 in SP | Not Applicable |
| For Air Type | Clean Air |
| Airflow @ 2.500 in SP | Not Applicable |
| Motor IP Rating | IP20 |
| Includes Drive Package | Not Applicable |
| Airflow @ 7.000 in SP | Not Applicable |
| Airflow @ 1.000 in SP | Not Applicable |
| Airflow @ 9.000 in SP | Not Applicable |
| Outlet Shape | Rectangular |
| Manufacturer Warranty Length | 1 yr Limited |
| Airflow @ 8.000 in SP | Not Applicable |
| Housing Material Gauge | 0.8 mm |
| Airflow @ 13.00 in SP | Not Applicable |
| Wheel Width | 1 in |
| Nameplate Voltage | 115V AC |
| Compatible Speed Control | No |
| Motor Frame Designation | C-frame motor |
| Airflow @ 3.000 in SP | Not Applicable |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 115 |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
