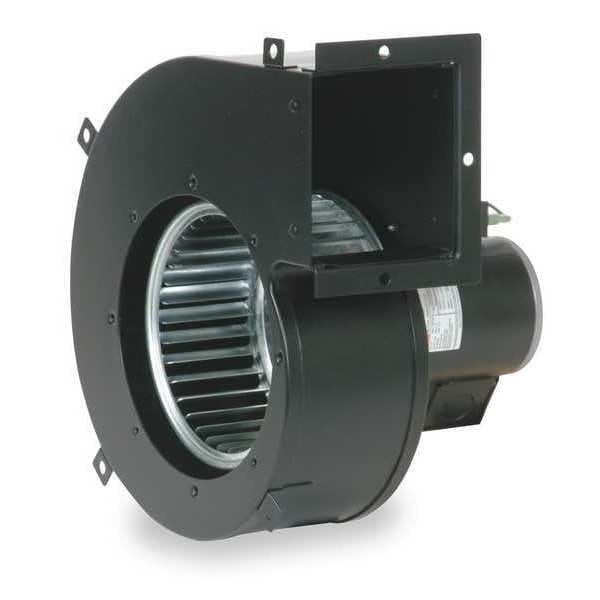

Rectangular OEM Blower, 3250 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 123 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.65 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 3-15/16 in |
| Number of Speeds | 1 |
| Overall Height | 5-7/8 in |
| Overall Width | 7-1/8 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 3-11/16 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| Hz | 50/60 |

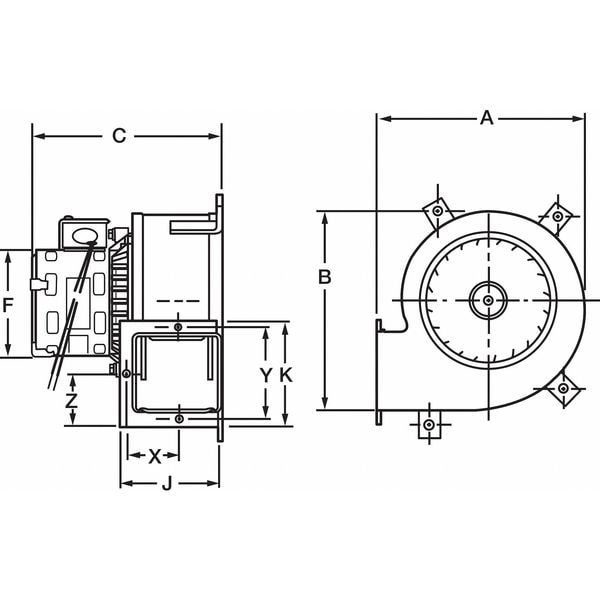

| Dimension F | 3-5/16 in |
| Dimension X | 2 in |
| Bearing Type | Ball |
| Housing Finish | Flat |
| CFM @ 0.700-In. SP | 55 |
| CFM @ 0.300-In. SP | 112 |
| Dimension K | 3-1/2 in |
| Motor Insulation | Class B |
| Max. Inlet Temp. | 450 deg F |
| CFM @ 0.000-In. SP | 129 |
| Dimension E | 10-7/8 in |
| CFM @ 0.600-In. SP | 74 |
| Outlet Height | 2-3/16 in |
| Max. Ambient Temp. | 104 deg F |
| Wheel Type | Forward-Curved |
| Dimension A | 5-5/16 in |
| Dimension C | 7-1/8 in |
| RPM | 3,250 |
| Housing Color | Black |
| Dimension B | 5-7/8 in |
| CFM @ 0.500-In. SP | 91 |
| Outlet Width | 3-1/4 in |
| Blower Wheel Width | 2-1/2 in |
| Replaces | 4C941 |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Overall Depth | 5-1/4 in |
| Lead Length | 13 in |
| Dimension J | 3-15/16 in |
| Mounting Position | All Position |
| CFM @ 0.200-In. SP | 119 |
| Item | OEM Blower |
| Dimension Y | 2-7/8 in |
| CFM @ 0.400-In. SP | 105 |
| Dimension Z | 1-3/4 in |
| Motor Enclosure | Open |
| Sound Level | Not Rated |
| Thermal Overload Protection | Yes |
| Housing Depth | 5-1/4 in |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Includes Motor | Yes |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| For Air Type | Clean Air |
| Airflow @ 1.000 in SP | Not Applicable |
| Housing Material Gauge | 0.8 mm |
| Maximum Fan Speed | 3,250 rpm |
| Maximum Ambient Temperature | 104 deg F |
| Airflow @ 4.000 in SP | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Airflow @ 5.000 in SP | Not Applicable |
| Brake Horsepower | 1/20 hp |
| Hazardous Location Specification | Not Applicable |
| Manufacturer Warranty Length | 1 yr Limited |
| Wheel Material Finish | Galvanized |
| Number of Inlets | 1 |
| Motor Speed | 3,200 rpm |
| Market | Commercial, Industrial, Residential |
| Outlet Shape | Rectangular |
| Inlet Diameter | 3-15/16 in |
| Includes Drive Package | Not Applicable |
| Maximum Static Pressure | 1 in wc |
| Maximum Inlet Air Temperature | 450 deg F |
| Airflow @ 8.000 in SP | Not Applicable |
| Wheel Bore Diameter | 8 mm |
| Motor IP Rating | IP20 |
| Housing Height | 5-7/8 in |
| Motor Location | Out of Airstream |
| Housing Material Grade | SPCC |
| Airflow @ 2.500 in SP | Not Applicable |
| Airflow @ 1.250 in SP | Not Applicable |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Motor Horsepower | 1/20 hp |
| Housing Material Finish | Flat |
| Electrical Connection | Wire Leads |
| Airflow @ 11.00 in SP | Not Applicable |
| Mount Type | All Position |
| Speed Controllable | No |
| Chemical Resistant | No |
| Airflow @ 10.00 in SP | Not Applicable |
| Includes Mounting Hardware | No |
| High-Efficiency Motor | No |
| Motor Insulation Class | B |
| Airflow @ 0.100 in SP | 123 cfm |
| Airflow @ 4.500 in SP | Not Applicable |
| Flange Size | 3-15/16 in W x 3-1/2 in H |
| Hazardous Location Application | No |
| Airflow @ 0.400 in SP | 105 cfm |
| Airflow @ 0.000 in SP | 129 cfm |
| Airflow @ 7.000 in SP | Not Applicable |
| Wheel Diameter | 3-7/8 in |
| Airflow @ 3.500 in SP | Not Applicable |
| Airflow @ 3.000 in SP | Not Applicable |
| Airflow @ 6.000 in SP | Not Applicable |
| Airflow @ 9.000 in SP | Not Applicable |
| Rotation | CW |
| Airflow @ 0.375 in SP | Not Applicable |
| Corrosion Resistant | No |
| Motor Frame Designation | 3.3" PSC motor |
| Housing Width | 7-1/8 in |
| Mounting Orientation | Multiposition |
| Compatible Speed Control | No |
| Airflow @ 0.750 in SP | Not Applicable |
| Spark Resistant Construction Type | Not Rated |
| Airflow @ 0.250 in SP | 115 cfm |
| Motor Duty Class | Continuous |
| Airflow @ 0.125 in SP | Not Applicable |
| Motor Type | Permanent Split Capacitor |
| Flange Type | Flanged |
| Wheel Width | 2-1/2 in |
| Airflow @ 0.500 in SP | 91 cfm |
| Nameplate Voltage | 115V AC |
| Current | 0.65 A |
| Shaft Diameter | 8 mm |
| Airflow @ 13.00 in SP | Not Applicable |
| Outlet Diameter | Not Applicable |
| Airflow @ 2.000 in SP | Not Applicable |
| Features | Not Applicable |
| For Location | Indoor |
| Assembly | Assembled |
| Airflow @ 12.00 in SP | Not Applicable |
| Frequency | 50/60 Hz |
| Minimum Fan Speed | 0 RPM |
| OEM Replacement | Yes |
| AMCA Fan Class | Not Rated |
| Minimum Ambient Temperature | 14 deg F |
| For High-Static Pressure Applications | No |
| Replacement For | 4C941 |
| Airflow @ 1.500 in SP | Not Applicable |
| Wheel Material | Steel |
| Type | High Temperature |
| Mounting | All Position |
| Voltage | 115 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
