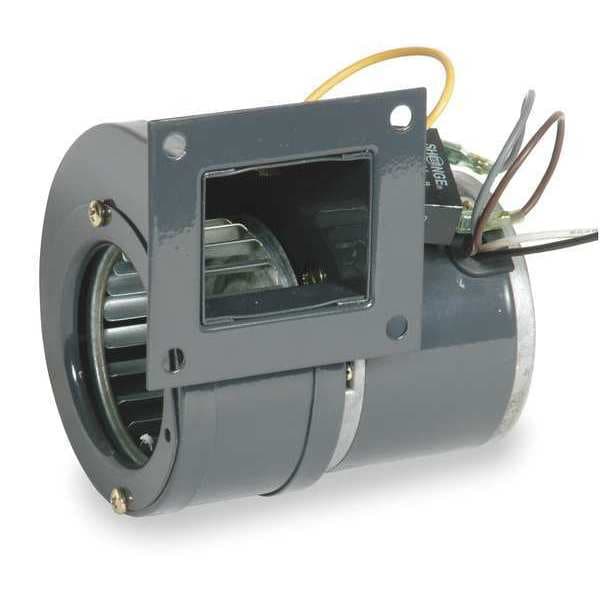

Rectangular OEM Blower, 3388 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 52 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.3 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 2-9/16 in |
| Number of Speeds | 1 |
| Overall Height | 4-5/8 in |
| Overall Width | 4-11/16 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 2-15/16 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Dimension C | 4-11/16 in |
| CFM @ 0.000-In. SP | 53 |
| RPM | 3,388 |
| Bearing Type | Ball |
| Outlet Height | 1-5/8 in |
| CFM @ 0.400-In. SP | 41 |
| Dimension M | 2-7/16 in |
| CFM @ 0.200-In. SP | 50 |
| CFM @ 0.300-In. SP | 47 |
| Hz | 50/60 |
| Blower Wheel Width | 1-7/8 in |
| Dimension D | 2-1/8 in |
| Mounting Position | All Position |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Motor Enclosure | Open |
| Dimension B | 5-5/16 in |
| Outlet Width | 2 in |
| Wheel Type | Forward-Curved |
| Max. Inlet Temp. | 104 deg F |
| Overall Depth | 4-1/2 in |
| Replaces | 4C012 |
| Dimension J | 3-7/16 in |
| Lead Length | 13 in |
| Dimension E | 4-5/8 in |
| Housing Finish | Enamel |
| Dimension L | 2-13/16 in |
| CFM @ 0.500-In. SP | 23 |
| Motor Insulation | Class B |
| Dimension A | 4-1/2 in |
| Dimension K | 3-1/8 in |
| Item | OEM Blower |
| Dimension F | 3-5/16 in |
| Housing Color | Gray |
| Max. Ambient Temp. | 104 deg F |
| AMCA Fan Class | Not Rated |
| Airflow @ 3.500 in SP | Not Applicable |
| Mounting Orientation | Multiposition |
| Airflow @ 12.00 in SP | Not Applicable |
| Housing Material Gauge | 0.8 mm |
| Spark Resistant Construction Type | Not Rated |
| Airflow @ 1.000 in SP | Not Applicable |
| Airflow @ 1.250 in SP | Not Applicable |
| Maximum Static Pressure | 0.625 in wc |
| Outlet Diameter | Not Applicable |
| Includes Drive Package | Not Applicable |
| Housing Height | 4-5/8 in |
| Wheel Material Finish | Galvanized |
| Airflow @ 13.00 in SP | Not Applicable |
| Motor Horsepower | 1/50 hp |
| Shaft Diameter | 8 mm |
| Maximum Ambient Temperature | 104 deg F |
| Frequency | 50/60 Hz |
| Brake Horsepower | 1/50 hp |
| Nameplate Voltage | 115V AC |
| Hazardous Location Application | No |
| Motor Type | Permanent Split Capacitor |
| Compatible Speed Control | No |
| Airflow @ 1.500 in SP | Not Applicable |
| Corrosion Resistant | No |
| Motor Duty Class | Continuous |
| Airflow @ 0.400 in SP | 41 cfm |
| Motor IP Rating | IP20 |
| Thermal Overload Protection | Yes |
| Airflow @ 4.000 in SP | Not Applicable |
| For Air Type | Clean Air |
| Airflow @ 11.00 in SP | Not Applicable |
| Wheel Bore Diameter | 8 mm |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Inlet Diameter | 2-1/2 in |
| Airflow @ 0.375 in SP | Not Applicable |
| Housing Material Grade | SPCC |
| High-Efficiency Motor | No |
| Motor Frame Designation | 3.3" PSC motor |
| Market | Commercial, Industrial, Residential |
| Airflow @ 6.000 in SP | Not Applicable |
| Replacement For | 4C012 |
| Airflow @ 10.00 in SP | Not Applicable |
| Current | 0.3 A |
| Rotation | CW |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Mount Type | All Position |
| Maximum Inlet Air Temperature | 104 deg F |
| Speed Controllable | No |
| Minimum Fan Speed | 0 RPM |
| Number of Inlets | 1 |
| Includes Motor | Yes |
| Sound Level | Not Rated |
| Outlet Shape | Rectangular |
| Motor Speed | 3,380 rpm |
| Wheel Width | 1-7/8 in |
| Flange Size | 3-7/16 in W x 3-1/8 in H |
| Airflow @ 0.100 in SP | 52 cfm |
| Maximum Fan Speed | 3,388 rpm |
| For Location | Indoor |
| Airflow @ 5.000 in SP | Not Applicable |
| Airflow @ 8.000 in SP | Not Applicable |
| Airflow @ 3.000 in SP | Not Applicable |
| Includes Mounting Hardware | No |
| Airflow @ 0.125 in SP | Not Applicable |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Hazardous Location Specification | Not Applicable |
| Airflow @ 4.500 in SP | Not Applicable |
| For High-Static Pressure Applications | No |
| Housing Material Finish | Enamel |
| Motor Insulation Class | B |
| Airflow @ 0.750 in SP | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Manufacturer Warranty Length | 1 yr Limited |
| Airflow @ 9.000 in SP | Not Applicable |
| Electrical Connection | Wire Leads |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Flange Type | Flanged |
| Chemical Resistant | No |
| Airflow @ 0.500 in SP | 23 cfm |
| Airflow @ 2.000 in SP | Not Applicable |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Motor Location | Out of Airstream |
| Housing Depth | 4-1/2 in |
| Airflow @ 0.250 in SP | 48 cfm |
| OEM Replacement | Yes |
| Airflow @ 2.500 in SP | Not Applicable |
| Airflow @ 0.000 in SP | 53 cfm |
| Minimum Ambient Temperature | 14 deg F |
| Airflow @ 7.000 in SP | Not Applicable |
| Housing Width | 4-11/16 in |
| Assembly | Assembled |
| Wheel Diameter | 2-7/8 in |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 115 |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
