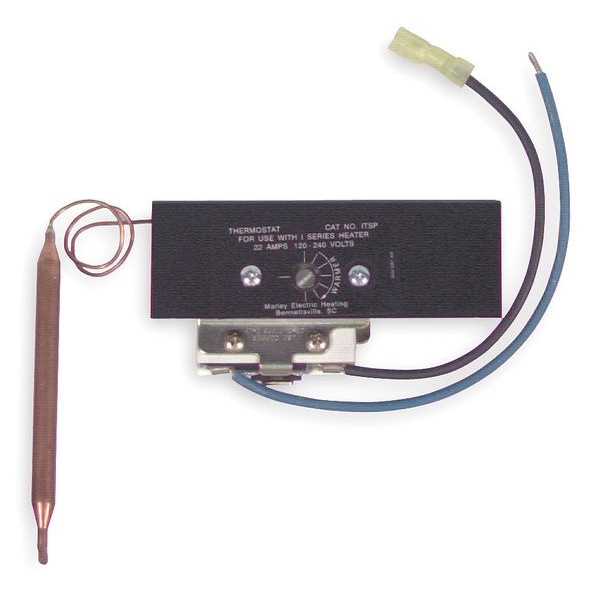

Remote Bulb Thermostat, Built In, 55-115 F
| Item | Electric Floor Heater Thermostat |
|---|---|
| Color | Black |
| Mounting Type | Surface |
| Includes | Instruction Manual |
| For Use With | 2YU86, 2YU87 |
| Heater Voltage | 120/240 V AC |
| Temp. Range | 55 to 115 deg F |
| Standards | UL Listed, CUL #E21609 |
| Amps AC | 25 A |
| Thermostat Control Voltage | 120/240V AC |
| Voltage | 120/240V AC |
| Overall Width | 1-1/16 in |
| Thermostat Control Type | Mechanical Selector Dial |
| Overall Dimensions - H x W x D | 2-1/8 in x 1-1/16 in x 1-1/16 in |
| Thermostat Control Range | 55 to 115 deg F |
| Housing Color | Black |
| Number of Poles | 1 |
| Overall Depth | 1-1/16 in |
| Max. Operating Temp. | 115 deg F |
| Thermostat Control Amperage | 25 A |
| Contact Rating | 22A @ 120 to 277V AC |
| Overall Height | 2-1/8 in |
| Programming Capability | Not Programmable |
| Maximum Operating Temperature | 115 deg F |
| Type | Field-Installed Unit-Mount |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
