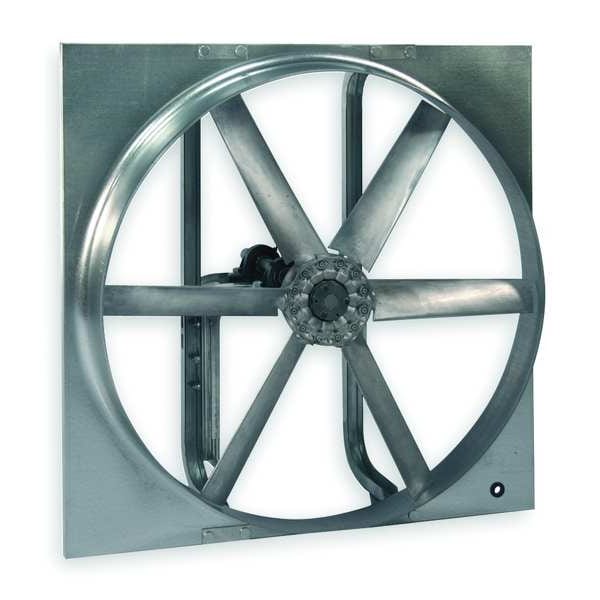

Reversible Fan, W/ Drive Pkg, 208-230/460V
| Exhaust/Supply Fan Item | Reversible Exhaust/Supply Fan |
|---|---|
| Drive Package With Motor Included | No |
| Exhaust/Supply Fan Motor HP | 0.5 HP |
| Blade Dia. | 30 in |
| Fan Voltage | 208-230/460V AC |
| Motor Enclosure | Open Dripproof |
| Fan RPM | 825 |
| Exhaust/Supply CFM @ 0.000-In. SP | 8989 |
| Operating Amps | 2.1-2.2/1.1 |
| Type | Belt Drive Reversible |
| Exhaust/Supply CFM @ 0.125-In. SP | 7614 |
| Max. BHP | 0.5721 |
| Hz | 60 |
| Motor RPM | 1725 |
| Dia. Opening Required (In.) | 30 |
| Mounting Position | Vertical |
| Bearing Type | Regreasable Cast Pillow Block |
| Phase | 3 |
| Recommended Intake Guards | 1WBU4 |
| Max. Inlet Temp. (Deg. F) | 104 |
| Assembled/Unassembled | Unassembled |

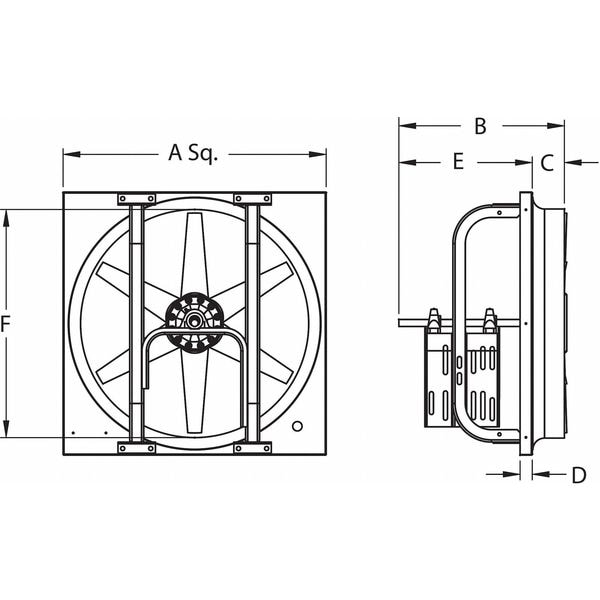

| Dimension D (In.) | 1 |
| Shaft Dia. (In.) | 1 |
| Dimension E (In.) | 16-1/4 |
| Width (In.) | 34 |
| Speed | 1 |
| Motor Type | 3-Phase |
| Item | Exhaust/Supply Fan |
| Propeller Material | Cast Aluminum |
| Dimension C (In.) | 5-1/4 |
| Number of Blades | 6 |
| Motor Insulation | Class B |
| Frame Finish | Zinc Plated |
| Dimension B (In.) | 21-1/2 |
| Dimension F (In.) | 30-3/8 |
| Max. Depth (In.) | 21-1/2 |
| Max. Ambient Temp. (F) | 104 Degrees F |
| Includes | Drive Package |
| Height (In.) | 34 |
| Drive Package Included | No |
| Dimension A (In.) | 34 |
| Flange Width | 34 in |
| Standards | C-UL Listed, UL Listed |
| Method of Construction | Cast |
| For Cut-Out Length | 32-1/2 in |
| Assembled | Unassembled |
| Frequency | 60 Hz |
| For Cut-Out Height | 32 1/2 in |
| Includes Motor | Yes |
| Mounting Orientation | Horizontal, Vertical |
| Fan Style | Panel |
| Speed Controllable | No |
| For Cut-Out Diameter | 30 in |
| Nameplate Voltage | 230/460V AC |
| Overall Height | 34 in |
| Full Load Current | 1.7 A |
| Motor Horsepower | 0.5 HP |
| Includes Grill | No |
| Drive Type | Belt Drive |
| Maximum Airflow | 8,989 cfm |
| Noise Level @ 0.125 in SP @ 5 ft | 19 sones |
| Overall Depth | 21-1/2 in |
| Supply Airflow @ 0.125 in SP | 7,614 cfm |
| For Cut-Out Width | 32-1/2 in |
| Number of Shutters | 0 |
| Flange Depth | 1 in |
| Maximum Inlet Temperature | 104 Degrees F |
| Exhaust Airflow @ 0.000 in SP | 8,989 cfm |
| Blade Diameter | 30 in |
| Number of Speeds | 1 |
| Guard Type | None |
| Noise Level @ 0.000 in SP @ 5 ft | 18.7 sones |
| Number of Fans | 1 |
| Overall Width | 34 in |
| Venturi Depth | 5-1/2 in |
| Maximum Noise Level | 18.7 sones |
| Exhaust Airflow @ 0.125 in SP | 7,614 cfm |
| Supply Airflow @ 0.000 in SP | 8,989 cfm |
| Blade Material | Aluminum |
| Ventilation Type | Reversible |
| Motor Speed | 825 RPM |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Venturi Diameter | 30-1/2 in |
| Shaft Diameter | 1 in |
| Vent Design | Ductless |
| Includes Dehumidistat | No |
| Manufacturer Warranty Length | 1 yr |
| Frame Material | Steel |
| Voltage | 208-230/460 |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
