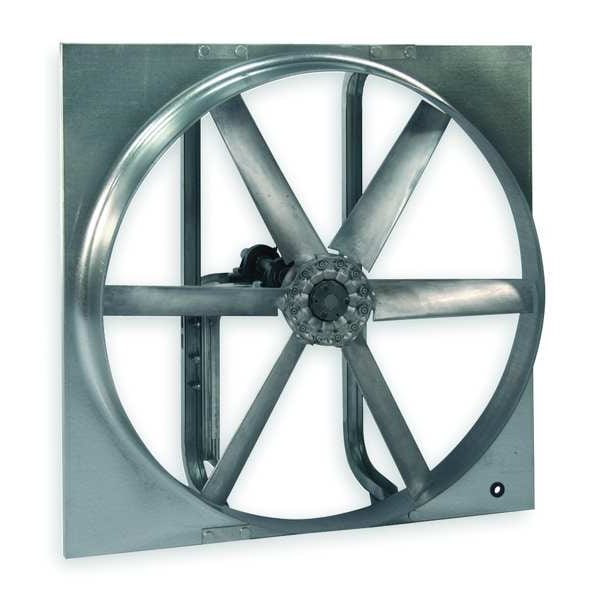

Reversible Fan, W/ Drive Pkg, 208-230/460V
| Exhaust/Supply Fan Item | Reversible Exhaust/Supply Fan |
|---|---|
| Drive Package With Motor Included | No |
| Exhaust/Supply Fan Motor HP | 0.5 HP |
| Blade Dia. | 36 in |
| Fan Voltage | 208-230/460V AC |
| Motor Enclosure | Open Dripproof |
| Fan RPM | 659 |
| Exhaust/Supply CFM @ 0.000-In. SP | 11,037 |
| Operating Amps | 2.1-2.2/1.1 |
| Type | Belt Drive Reversible |
| Propeller Material | Cast Aluminum |
| Mounting Position | Vertical |
| Speed | 1 |
| Motor Insulation | Class B |
| Recommended Intake Guards | 1WBU5 |
| Bearing Type | Regreasable Pillow Block |

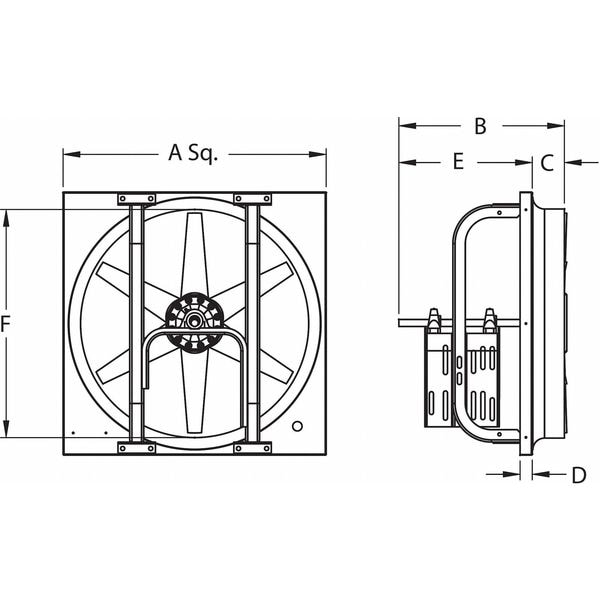

| Dimension E (In.) | 16 |
| Hz | 60 |
| Drive Package Included | No |
| Max. Ambient Temp. (F) | 104 Degrees F |
| Dimension A (In.) | 40 |
| Width (In.) | 40 |
| Max. BHP | 0.5622 |
| Assembled/Unassembled | Unassembled |
| Dia. Opening Required (In.) | 36 |
| Number of Blades | 6 |
| Dimension D (In.) | 1 |
| Shaft Dia. (In.) | 1-1/4 |
| Item | Exhaust/Supply Fan |
| Phase | 3 |
| Includes | Drive Package |
| Motor RPM | 1725 |
| Motor Type | 3-Phase |
| Max. Depth (In.) | 22 |
| Frame Finish | Zinc Plated |
| Max. Inlet Temp. (Deg. F) | 104 |
| Dimension F (In.) | 36-3/8 |
| Exhaust/Supply CFM @ 0.125-In. SP | 8967 |
| Dimension C (In.) | 6 |
| Dimension B (In.) | 22 |
| Height (In.) | 40 |
| Maximum Noise Level | 18.1 sones |
| Overall Width | 40 in |
| Drive Type | Belt Drive |
| Frequency | 60 Hz |
| Flange Width | 40 in |
| Venturi Diameter | 36-1/2 in |
| Full Load Current | 1.7 A |
| For Cut-Out Diameter | 36 in |
| Nameplate Voltage | 230/460V AC |
| Speed Controllable | No |
| Includes Grill | No |
| For Cut-Out Height | 38 1/2 in |
| Flange Depth | 1 in |
| Includes Motor | Yes |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Includes Dehumidistat | No |
| Number of Shutters | 0 |
| Fan Style | Panel |
| Number of Speeds | 1 |
| Overall Height | 40 in |
| Guard Type | None |
| Shaft Diameter | 1-1/4 in |
| Vent Design | Ductless |
| Overall Depth | 22 in |
| Ventilation Type | Reversible |
| Exhaust Airflow @ 0.125 in SP | 8,967 cfm |
| For Cut-Out Width | 38-1/2 in |
| Venturi Depth | 6 in |
| Frame Material | Steel |
| Assembled | Unassembled |
| Motor Speed | 659 RPM |
| Manufacturer Warranty Length | 1 yr |
| Maximum Airflow | 11,037 cfm |
| Noise Level @ 0.000 in SP @ 5 ft | 18.1 sones |
| Noise Level @ 0.125 in SP @ 5 ft | 19 sones |
| Number of Fans | 1 |
| Blade Diameter | 36 in |
| Method of Construction | Cast |
| Supply Airflow @ 0.125 in SP | 8,967 cfm |
| Exhaust Airflow @ 0.000 in SP | 11,037 cfm |
| Standards | C-UL Listed, UL Listed |
| Supply Airflow @ 0.000 in SP | 11,037 cfm |
| Blade Material | Aluminum |
| Mounting Orientation | Horizontal, Vertical |
| Motor Horsepower | 0.5 HP |
| Maximum Inlet Temperature | 104 Degrees F |
| For Cut-Out Length | 38-1/2 in |
| Voltage | 208-230/460 |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
