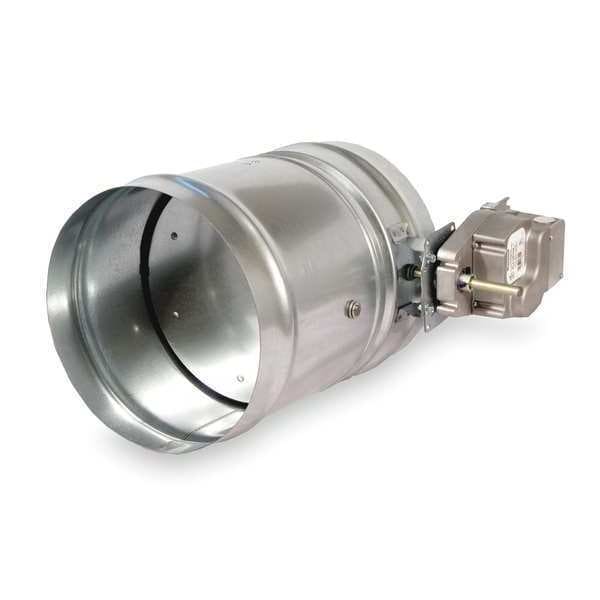

Round Fire/Smoke Damper, 120V, 3000 fpm
| Item | Round Fire/Smoke Damper,GalvSt 9.9" dia |
|---|---|
| Mounting Type | Vertical/Horizontal |
| Includes | Factory Mounted Actuator; Stainless Steel Closure Spring; UL Fusible Link |
| Voltage | 120 V |
| Depth | 15-5/8 in |
| Material | Galvanized Steel |
| Damper Item | Motorized Fire/Smoke Damper |
| Actual Damper Sz. Dia. | 9-7/8 in |
| Phase | 1 |
| Max. Velocity | 3,000 fpm |
| Fire Rated | 1 1/2 hr |
| Nominal Duct Dia. | 10 in |
| Seals | Extruded Silicone Rubber Blade |
| Blade | 14 ga |
| Damper Shape | Round |
| Hz | 60 |
| Frame | 20 ga |
| Max. Temp. | 350 Degrees F |
| Free Area | 69.8 sq in |
| Pressure Differential Max. | 4 in wg |
| Standards | CSFM; IBC; NFPA 80,90A,92,101,105; UL 555S |
| Rough Opening Width | 10 in |
| Overall Height | 9-7/8 in |
| Overall Width | 15-5/8 in |
| Overall Diameter | 9-7/8 in |
| Flange Width | Not Applicable |
| Rough Opening Shape | Round |
| Nameplate Voltage | 120V AC |
| Jamb Seal Material | Not Applicable |
| Closure Pressure Rating | 4 in wc |
| Blade Orientation | Not Applicable |
| Maximum Air Velocity | 3,000 fpm |
| Blade Seal Material | Silicone |
| Rough Opening Diameter | 10 in |
| Number of Panels | 1 |
| For Nominal Duct Diameter | 10 in |
| Overall Length | 16 in |
| Counterbalanced | Not Applicable |
| Frame Material | Galvanized Steel |
| For Duct Shape | Round |
| Blade Material Thickness | 14 ga |
| Damper Type | Dynamic |
| Blade Type | Butterfly |
| Fusible Link Temperature | 350 deg F |
| Airflow Direction | Horizontal, Vertical |
| Includes Motor | Yes |
| Pressure Drop @ 1000 fpm (AMCA 5.2) | Not Applicable |
| Blade Material | Galvanized Steel |
| Closure Velocity Rating | 3,000 fpm |
| Switch Action | Normally Closed |
| Frame Less Flange | 78.5 sq in |
| Frame Material Thickness | 20 ga |
| Frequency | 60 Hz |
| For Air Type | Emergency Smoke |
| Mounting Position | Horizontal, Vertical |
| Closure Type | Motorized |
| Damper Application | Fire, Smoke |
| ACMA Leakage Class | 2 |
| Maximum Temperature Rating | Degrees F |
| Maximum Air Pressure | 4 in wg |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
