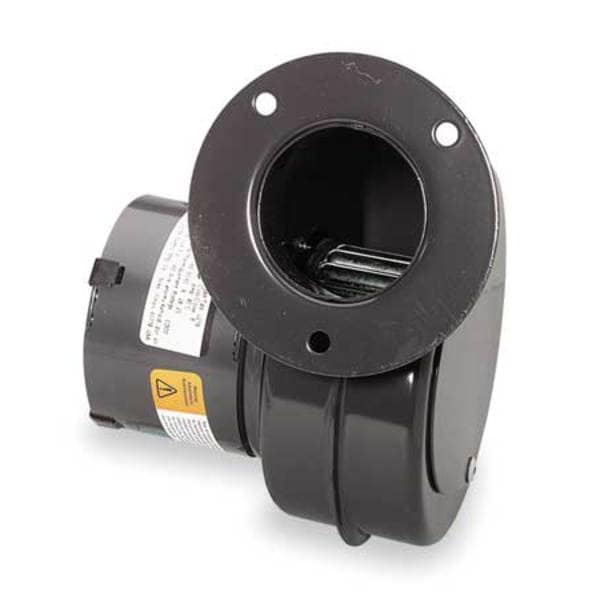

Round OEM Blower, 3020 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 57 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.28/0.23 |
| Housing Material | Steel |
| Inlet Dia. | 2-3/8 in |
| Number of Speeds | 1 |
| Overall Height | 5-3/4 in |
| Overall Width | 5-3/16 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Round |
| With Flange | Yes |
| Blower Wheel Diameter | 3 in |
| Blower Motor Type | Shaded Pole |
| Blower Voltage | 230V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| Mounting Position | All Position |
| Dimension A | 6-5/16 in |
| Outlet Width | 4 in |
| Dimension F | 3-5/16 in |
| CFM @ 0.200-In. SP | 54 |
| Dimension L | 2-3/8 in |
| CFM @ 0.150-In. SP | 55 cfm |
| Dimension E | 7 in |
| CFM @ 0.400-In. SP | 39 |
| Agency Compliance | CSA Certified, UL Component Recognized |
| CFM @ 0.300-In. SP | 49 |
| Wheel Type | Forward-Curved |
| Outlet Height | 2-5/8 in |
| Housing Color | Gray |
| Motor Enclosure | Open Dripproof |
| Motor Insulation | Class B |
| Dimension J | 4 in |
| Dimension B | 5-13/16 in |
| CFM @ 0.500-In. SP | 23 |
| Dimension D | 2-7/32 in |
| Lead Length | 6 in |
| CFM @ 0.000-In. SP | 60 |
| Housing Finish | Baked Enamel |
| Max. Inlet Temp. | 104 deg F |
| Not For Use With | Not Intended For Use As Inline Blowers For Wood Burners |
| RPM | 3,020 |
| Item | OEM Blower |
| Blower Wheel Width | 1-7/8 in |
| Dimension C | 5-7/32 in |
| Bearing Type | Sleeve |
| Overall Depth | 6-1/4 in |
| Replaces | 2C914 |
| Hz | 50/60 |
| Max. Ambient Temp. | 104 deg F |
| Dimension M | 2-13/16 in |
| Motor Type | Shaded Pole |
| Current | 0.28/0.23 A |
| Frequency | 50/60 Hz |
| Inlet Diameter | 2-3/8 in |
| Flange Type | Flanged |
| Airflow @ 0.400 in SP | 39 cfm |
| Includes Drive Package | Yes |
| Housing Material Finish | Baked Enamel |
| Replacement For | 2C914 |
| Flange Size | 4 in Dia. |
| Motor Insulation Class | B |
| Motor Speed | 3,030 rpm |
| Includes Motor | Yes |
| Wheel Diameter | 3 in |
| Mount Type | All Position |
| Maximum Ambient Temperature | 104 deg F |
| Airflow @ 0.500 in SP | 23 cfm |
| Outlet Diameter | 2-1/8 in |
| Discharge Position | All |
| Nameplate Voltage | 230V AC |
| Number of Discharge Positions | 4 |
| Thermal Overload Protection | Yes |
| Minimum Ambient Temperature | 40 deg C |
| Maximum Inlet Air Temperature | 104 deg F |
| Electrical Connection | Wire Leads |
| Outlet Shape | Round |
| Number of Inlets | 1 |
| Mounting Orientation | Multiposition |
| Maximum Fan Speed | 3,020 rpm |
| Assembly | Assembled |
| Manufacturer Warranty Length | 1 yr Limited |
| Airflow @ 0.000 in SP | 60 cfm |
| Rotation | CCW |
| Wheel Material | Steel |
| Motor Horsepower | 1/125 hp |
| Wheel Width | 1-7/8 in |
| Standards | CSA Certified, UL Listed |
| Airflow @ 0.100 in SP | 57 cfm |
| For Air Type | Clean Air |
| OEM Replacement | No |
| Mounting | All Position |
| Voltage | 230 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
