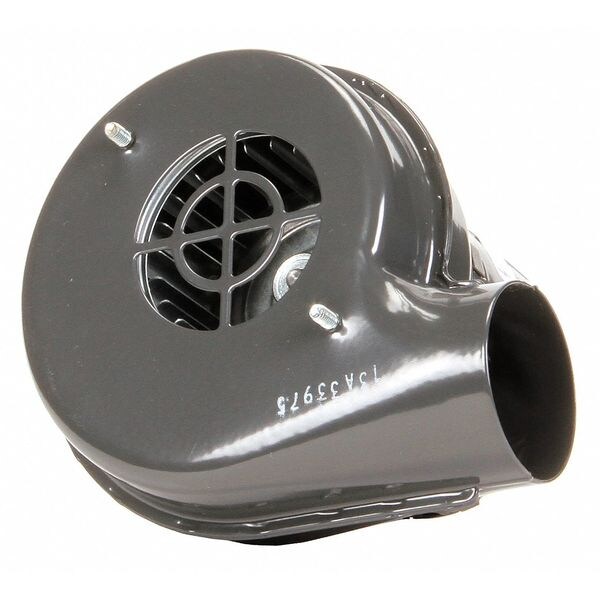

Round OEM Blower, 3136 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 57 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.26 |
| Housing Material | Steel |
| Number of Speeds | 1 |
| Overall Height | 5-7/8 in |
| Overall Width | 6-3/8 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Round |
| With Flange | No |
| Blower Wheel Diameter | 3-1/8 in |
| Blower Motor Type | Shaded Pole |
| Blower Voltage | 230V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| Motor Insulation | B |
| Outlet Width | Not Applicable |
| CFM @ 0.400-In. SP | 39 |
| CFM @ 0.500-In. SP | 23 |
| Item | OEM Blower |
| Agency Compliance | UL/CSA |
| RPM | 3,136 |
| Blower Wheel Width | 1-7/8 in |
| Housing Finish | Gray |
| Hz | 60 |
| Overall Depth | 5-3/8 in |
| Outlet Height | Not Applicable |
| Motor Enclosure | Open Air-Over |
| Wheel Type | Forward-Curved |
| CFM @ 0.300-In. SP | 49 |
| CFM @ 0.200-In. SP | 54 |
| Bearing Type | Sleeve |
| CFM @ 0.000-In. SP | 60 |
| Dimension D | 2.19/2.25 in |
| Dimension E | 5.76/5.86 in |
| Dimension A | 6.25/6.35 in |
| Dimension C | 5.27/5.39 in |
| Dimension B | 5.76/5.86 in |
| Motor Type | Shaded Pole |
| Maximum Fan Speed | 3,300 rpm |
| Outlet Shape | Round |
| Hazardous Location Application | No |
| Airflow @ 3.500 in SP | 0 cfm |
| Airflow @ 0.500 in SP | 16 cfm |
| Airflow @ 5.000 in SP | 0 cfm |
| Wheel Material | Steel |
| Airflow @ 3.000 in SP | 0 cfm |
| Airflow @ 2.000 in SP | 0 cfm |
| Chemical Resistant | No |
| Maximum Static Pressure | 0.625 in wc |
| Airflow @ 0.125 in SP | 50 cfm |
| Spark Resistant Construction Type | Not Rated |
| Flange Type | Non-Flanged |
| Inlet Diameter | 2-3/8 in |
| Airflow @ 0.750 in SP | 0 cfm |
| Standards | UL Recognized, CSA Recognized |
| Hazardous Location Specification | No |
| Airflow @ 1.000 in SP | 0 cfm |
| Includes Drive Package | Yes |
| Number of Discharge Positions | 4 |
| Maximum Inlet Air Temperature | 104 deg F |
| Airflow @ 4.000 in SP | 0 cfm |
| Airflow @ 9.000 in SP | 0 cfm |
| Rotation | CW |
| Minimum Fan Speed | 3,100 rpm |
| Wheel Diameter | 3 in |
| Airflow @ 1.500 in SP | 0 cfm |
| Corrosion Resistant | No |
| Assembly | Assembled |
| Number of Inlets | 1 |
| Nameplate Voltage | 230V AC |
| Speed Controllable | No |
| Airflow @ 0.000 in SP | 55 cfm |
| Airflow @ 0.250 in SP | 43 cfm |
| Airflow @ 2.500 in SP | 0 cfm |
| Airflow @ 4.500 in SP | 0 cfm |
| Airflow @ 1.250 in SP | 0 cfm |
| Motor Horsepower | 0.01 HP |
| Wheel Width | 1-7/8 in |
| For High-Static Pressure Applications | No |
| OEM Replacement | Yes |
| Flange Size | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
