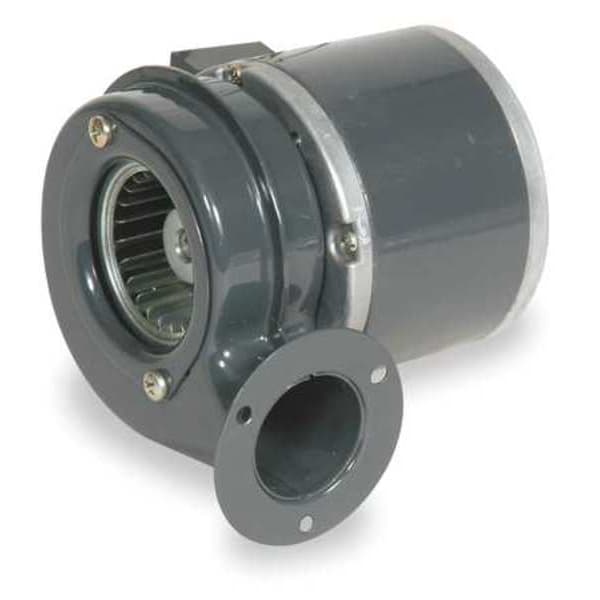

Round OEM Blower, 3300 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 9 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.08 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 1-7/8 in |
| Number of Speeds | 1 |
| Overall Height | 3-7/8 in |
| Overall Width | 3-15/16 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Round |
| With Flange | Yes |
| Blower Wheel Diameter | 2 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |

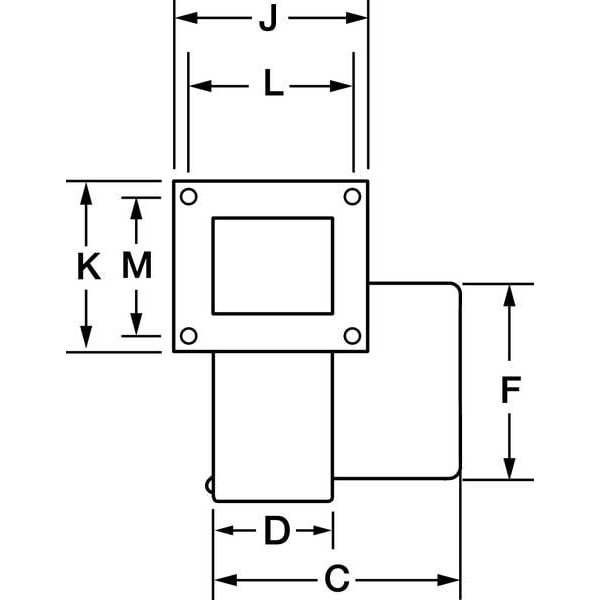

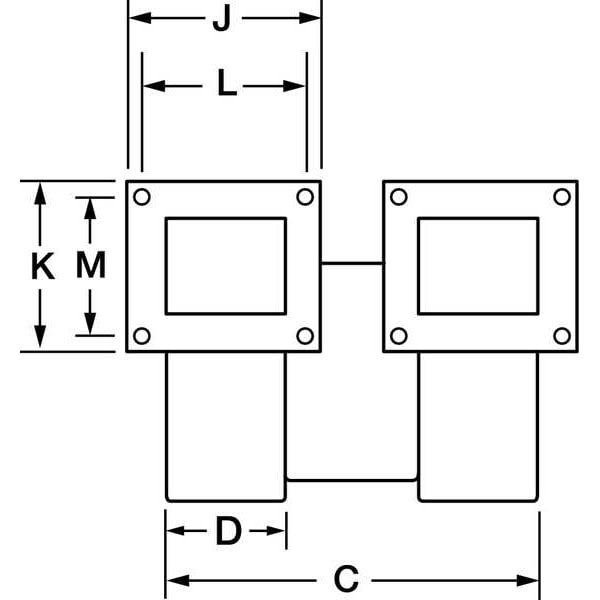

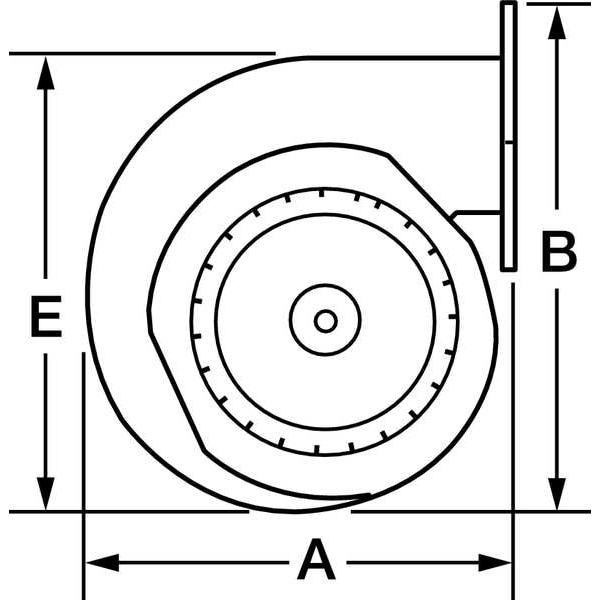

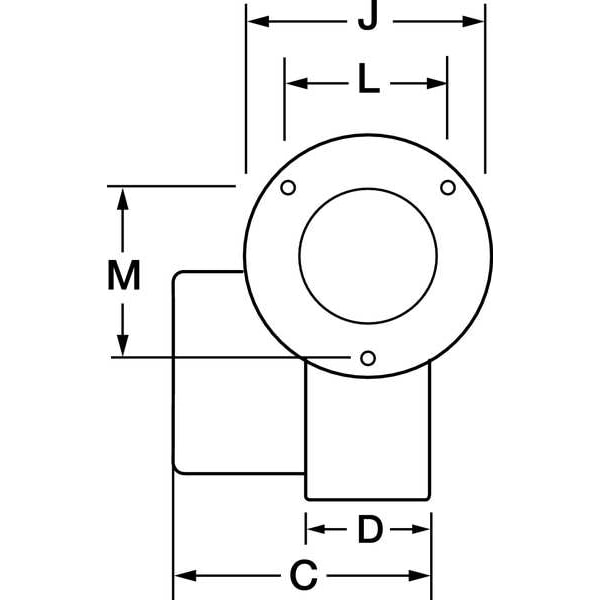

| Dimension A | 4 in |
| RPM | 3,300 |
| Dimension L | 1-5/8 in |
| Housing Color | Gray |
| CFM @ 0.800-In. SP | 1,390,127,011,701,090 |
| Dimension B | 4-3/16 in |
| Dimension D | 1-5/16 in |
| Dimension E | 3-7/8 in |
| Blower Wheel Width | 1-7/8 in |
| Motor Enclosure | Open |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Dimension J | 2-1/4 in |
| CFM @ 0.000-In. SP | 12 |
| Outlet Dia. | 1-1/4 in |
| CFM @ 0.900-In. SP | # # 830 700 |
| Dimension C | 4-1/16 in |
| Motor Insulation | Class B |
| Max. Inlet Temp. | 104 deg F |
| Max. Ambient Temp. | 104 deg F |
| Item | OEM Blower |
| Hz | 50/60 |
| CFM @ 0.400-In. SP | 131 |
| Replaces | 2C782 |
| Bearing Type | Ball |
| Dimension M | 1-7/16 in |
| Overall Depth | 4 in |
| CFM @ 0.300-In. SP | 1,335 |
| CFM @ 0.200-In. SP | 6 |
| Wheel Type | Forward-Curved |
| Housing Finish | Enamel |
| Lead Length | 13 in |
| Mounting Position | All Position |
| Outlet Height | Not Applicable |
| Outlet Width | Not Applicable |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Airflow @ 3.500 in SP | Not Applicable |
| Airflow @ 4.000 in SP | Not Applicable |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Nameplate Voltage | 115V AC |
| Housing Width | 3-15/16 in |
| Motor Type | Permanent Split Capacitor |
| Motor Duty Class | Continuous |
| For Air Type | Clean Air |
| Motor Horsepower | 1/250 hp |
| Airflow @ 13.00 in SP | Not Applicable |
| Manufacturer Warranty Length | 1 yr Limited |
| Minimum Fan Speed | 0 RPM |
| Hazardous Location Application | No |
| Flange Type | Flanged |
| Airflow @ 0.250 in SP | Not Applicable |
| Minimum Ambient Temperature | 14 deg F |
| Airflow @ 10.00 in SP | Not Applicable |
| Replacement For | 2C782 |
| Number of Inlets | 1 |
| Mounting Orientation | Multiposition |
| For High-Static Pressure Applications | No |
| Market | Commercial, Industrial, Residential |
| Airflow @ 2.500 in SP | Not Applicable |
| Housing Depth | 4 in |
| Speed Controllable | No |
| OEM Replacement | Yes |
| Electrical Connection | Wire Leads |
| Shaft Diameter | 8 mm |
| Corrosion Resistant | No |
| Frequency | 50/60 Hz |
| Motor Insulation Class | B |
| Brake Horsepower | 1/250 hp |
| Airflow @ 1.250 in SP | Not Applicable |
| Wheel Diameter | 2 in |
| Housing Material Finish | Enamel |
| Airflow @ 9.000 in SP | Not Applicable |
| Inlet Diameter | 1-7/8 in |
| AMCA Fan Class | Not Rated |
| Housing Height | 3-7/8 in |
| Includes Drive Package | Not Applicable |
| Wheel Bore Diameter | 8 mm |
| Flange Size | 2 1/4 in Dia. |
| Maximum Fan Speed | 3,300 rpm |
| Motor Location | Out of Airstream |
| Maximum Inlet Air Temperature | 104 deg F |
| Chemical Resistant | No |
| Airflow @ 2.000 in SP | Not Applicable |
| Motor IP Rating | IP00 |
| Airflow @ 5.000 in SP | Not Applicable |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Spark Resistant Construction Type | Not Rated |
| Compatible Speed Control | No |
| Resistance Properties | Corrosion Resistant |
| Hazardous Location Specification | Not Applicable |
| Airflow @ 0.000 in SP | 12 cfm |
| Rotation | CCW |
| High-Efficiency Motor | No |
| Sound Level | Not Rated |
| Maximum Static Pressure | 0.125 in wc |
| For Location | Indoor |
| Outlet Shape | Round |
| Airflow @ 12.00 in SP | Not Applicable |
| Airflow @ 3.000 in SP | Not Applicable |
| Motor Frame Designation | 3.3" PSC motor |
| Airflow @ 8.000 in SP | Not Applicable |
| Includes Mounting Hardware | No |
| Housing Material Gauge | 0.8 mm |
| Airflow @ 0.750 in SP | Not Applicable |
| Airflow @ 11.00 in SP | Not Applicable |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Airflow @ 7.000 in SP | Not Applicable |
| Includes Motor | Yes |
| Mount Type | All Position |
| Current | 0.08 A |
| Airflow @ 0.400 in SP | Not Applicable |
| Motor Speed | 3,300 rpm |
| Airflow @ 1.500 in SP | Not Applicable |
| Airflow @ 0.125 in SP | Not Applicable |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Airflow @ 0.100 in SP | 9 cfm |
| Airflow @ 6.000 in SP | Not Applicable |
| Thermal Overload Protection | Yes |
| Airflow @ 1.000 in SP | Not Applicable |
| Airflow @ 0.375 in SP | Not Applicable |
| Wheel Width | 1-7/8 in |
| Housing Material Grade | SPCC |
| Maximum Ambient Temperature | 104 deg F |
| Assembly | Assembled |
| Wheel Material Finish | Galvanized |
| Airflow @ 0.500 in SP | Not Applicable |
| Airflow @ 4.500 in SP | Not Applicable |
| Outlet Diameter | 1-1/4 in |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 115 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
