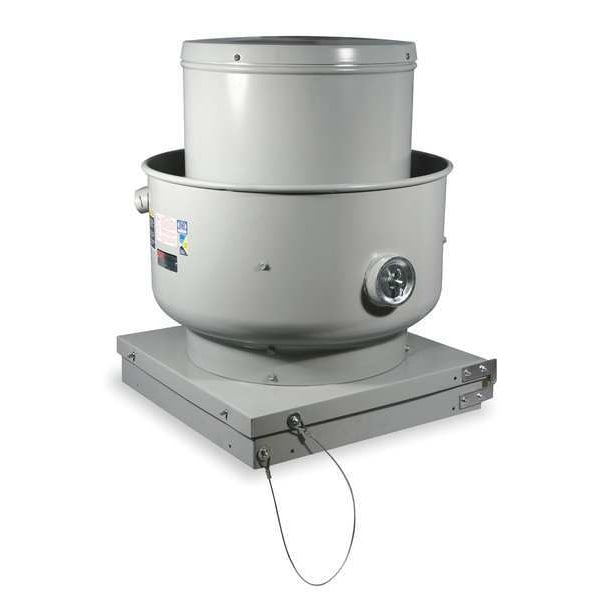

Severe Duty Vent, 16-1/2 In, 115/208-230V
| Item - Roof Ventilators | Upblast Ventilator |
|---|---|
| Drive Package With Motor Included | Yes |
| Duty Rating - Roof Ventilators | Severe |
| Drive Type - Roof Ventilators | Belt Drive |
| Mounting Location - Roof Ventilators | Roof |
| Number of Speeds | 1 |
| Voltage - Roof Ventilators | 115V AC/208V AC/230V AC |
| Motor HP - Roof Ventilators | 0.75 HP |
| Base Size - Roof Ventilators | 25 1/8 in x 25 1/8 in |
| CFM @ 0.000-In. SP | 3,636 |
| CFM @ 0.375-In. SP | 3,301 |
| Wheel Material | Steel |
| Shaft Dia. Wheel End | 1 in |
| Phase | 1 |
| Sones @ 0.125-In. SP @ 5 Ft. | 18.1 |
| Sones @ 0.250-In. SP @ 5 Ft. | 17.7 |
| RPM | 1,265 |
| CFM @ 0.875-In. SP | 2,746 |
| Overall Dia. | 28-7/8 in |
| CFM @ 0.625-In. SP | 3,036 |

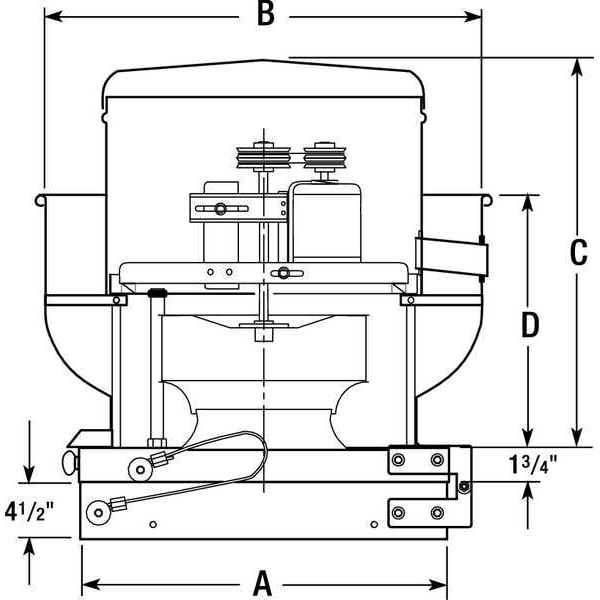

| Dimension A | 25-1/8 in |
| Bearing Type | Regreasable Pillow Block |
| Max. BHP | 0.79 |
| Assembled/Unassembled | Unassembled |
| Requires | Roof Curb for New Installation |
| Base Width | 25-1/8 in |
| Dimension C | 30 in |
| CFM @ 0.750-In. SP | 2,894 |
| Housing Material | Steel |
| Drive Type | Belt Drive |
| Hz | 60 |
| Includes | Clean Out Port, Drive Package, Heat Baffle, Hinged Base, NEMA 1 Junction Box |
| CFM @ 0.500-In. SP | 3,172 |
| Wheel Dia. | 16-1/2 in |
| Mounting Location | Roof |
| Max. Operating Amps | 11.6/5.9-5.8 |
| Item | Centrifugal Upblast Roof Exhaust Fan |
| Motor Voltage | 115/208/230 |
| Overall Height | 36-1/4 in |
| CFM @ 1.250-In. SP | 2,163 |
| Base Height | 6.3 in |
| Drive Package Included | Yes |
| Sones @ 0.500-In. SP @ 5 Ft. | 16.8 |
| Fixed Severe Duty 24"H Roof Curb Item No. | 2EUG8 |
| CFM @ 0.250-In. SP | 3,426 |
| Base Length | 25-1/8 in |
| Dimension B | 28-7/8 in |
| Motor HP | 0.75 |
| Max. Inlet Temp. | 400 deg F |
| Base Square Size - Roof Ventilators | 25-1/8" x 25-1/8" |
| Standards | AMCA Sound and Air, UL/cUL 762 |
| CFM @ 1.000-In. SP | 2,583 |
| CFM @ 0.125-In. SP | 3,532 |
| Speed Controllable | No |
| Dimension D | 19-3/8 in |
| Wheel Type | Backward Inclined |
| Exhaust Airflow @ 0.000 in SP | 3,636 cfm |
| Includes Motor | Yes |
| Housing Length | 28.9 in |
| Spark Resistant Construction Type | A |
| Housing Color | Gray |
| Maximum Static Pressure | 1.25 in wc |
| Assembly | Unassembled |
| Frequency | 60 Hz |
| For High-Static Pressure Applications | No |
| Exhaust Airflow @ 0.125 in SP | 3,532 cfm |
| Housing Width | 28.9 in |
| Current | 11.6/5.9 to 5.8 A |
| High-Efficiency Motor | No |
| Mount Type | Roof Curb |
| Exhaust Airflow @ 0.375 in SP | 3,301 cfm |
| Wheel Diameter | 16-1/2 in |
| Motor Enclosure | Open Dripproof |
| Electrical Connection | Power Cord |
| Housing Finish | Polyester Coated |
| Safety Features | Windband |
| Damper Size | 19 in x 19 in |
| Includes Drive Package | Yes |
| Overall Diameter | 28-7/8 in |
| Motor Horsepower | 0.75 HP |
| Motor Location | Out of Airstream |
| Wheel Finish | Nonstick Coated |
| Application | Kitchens |
| Airflow @ 0.000 in SP | 3,636 cfm |
| Maximum Inlet Air Temperature | 400 deg F |
| Exhaust Airflow @ 0.500 in SP | 3,172 cfm |
| For Air Type | Kitchen Air |
| Sound Level | 15.2 sones @ 1.250 in SP and 5 ft, 15.8 sones @ 1.000 in SP and 5 ft, 16.1 sones @ 0.875 in SP and 5 ft, 16.3 sones @ 0.750 in SP and 5 ft, 16.5 sones @ 0.625 in SP and 5 ft, 16.8 sones @ 0.500 in SP and 5 ft, 17.2 sones @ 0.375 in SP and 5 ft, 17.7 sones @ 0.250 in SP and 5 ft, 18.1 sones @ 0.125 in SP and 5 ft, 18.5 sones @ 0.000 in SP and 5 ft |
| Base Diameter | Not Applicable |
| Exhaust Airflow @ 0.250 in SP | 3,426 cfm |
| Propeller Shaft Diameter | 1 in |
| Motor Speed | 1,265 rpm |
| Brake Horsepower | 79/100 hp |
| Resistance Properties | Spark Resistant |
| Maximum Fan Speed | 1,265 rpm |
| Base Shape | Square |
| Nameplate Voltage | 115/208-230V AC |
| Features | Clean Out Port Provides Easy Wheel Access, Heat Baffle Provides Longer Motor Life |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
