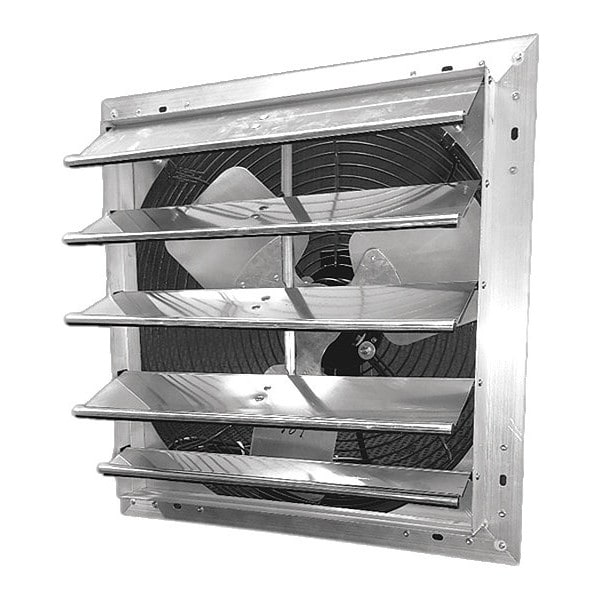

Shutter Mount Exhaust Fan, 18 in Blade Dia, 1/4 hp, 1 Phase, Fits 19 in x 19 in, 3128 cfm, 115V AC
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Blade Dia. | 18 in |
| Number of Speeds | 1 |
| Fan Voltage | 115 V |
| CFM @ 0.000-In. SP | 3,128 |
| Exhaust/Supply Fan Motor HP | 0.25 HP |
| Square Opening Required | 10-1/2 to 20 in |
| Width | 21-1/8 in |
| Height | 21 1/8 in |
| Item | Shutter Mount Exhaust Fan |
| Max. Depth | 12 in |
| Guard Material | Steel |
| Hz | 60 |
| Number of Blades | 3 |
| Bearing Type | Ball |
| CFM @ 0.125-In. SP | 2567 |
| Motor RPM | 1,725 |
| Blade Material | Aluminum |
| Sones @ 0.000-In. SP @ 5 Ft. | 7.28 |
| Wire Guard Finish | Powder Coated |
| Frame Finish | Aluminum |
| Motor Insulation | Class B |
| Voltage | 115 V |
| Phase | 1 |
| Includes | Intake Guard |
| Motor Type | 3-Phase |
| Max. Ambient Temp. | 104 deg F |
| Motor Enclosure | Totally Enclosed Air Over |
| Full Load Amps | 2.75 |
| Thermal Protection | Yes |
| Standards | C-UL Listed, OSHA Compliant Guards, UL |
| Frame Material | Aluminum |
| CFM @ 0.250-In. SP | 2201 |
| Motor Horsepower | 0.25 HP |
| Duct Height | Not Applicable |
| Includes Dehumidistat | No |
| Includes Motor | Yes |
| Guard Type | Intake |
| Nameplate Voltage | 115V AC |
| Overall Width | 21-1/8 in |
| Blade Diameter | 18 in |
| Exhaust Airflow @ 0.000 in SP | 3,128 cfm |
| Housing Material | Aluminum Steel |
| Assembled | Assembled |
| For Minimum Wall Thickness | 3 in |
| Guard Finish | Powder Coated |
| Maximum Noise Level | 7.28 sones |
| Duct Diameter | Not Applicable |
| Overall Depth | 12 in |
| Wattage | 393 W |
| Frequency | 60 Hz |
| Maximum Ambient Operating Temperature | 104 deg F |
| Fan Style | Shutter-Mounted |
| Housing Finish | Powder Coated |
| Manufacturer Warranty Length | 1 yr |
| Number of Fans | 1 |
| Ventilation Type | Exhaust |
| Full Load Current | 2.75 A |
| Noise Level @ 0.100 in SP @ 5 ft | 7.2 sones |
| Exhaust Airflow @ 0.250 in SP | 2,201 cfm |
| Maximum Coverage Area | 800 sq ft |
| For Cut-Out Height | 19 in |
| Maximum Airflow | 3,128 cfm |
| For Maximum Wall Thickness | 6 in |
| Noise Level @ 0.000 in SP @ 5 ft | 7.28 sones |
| Speed Controllable | No |
| Exhaust Airflow @ 0.125 in SP | 2,567 cfm |
| Electrical Connection | Hardwired |
| Number of Shutters | 1 |
| Duct Shape | Not Applicable |
| For Cut-Out Width | 19 in |
| Exhaust Airflow @ 0.100 in SP | 2,651 cfm |
| Duct Width | Not Applicable |
| Mounting Orientation | Vertical |
| Drive Type | Direct Drive |
| Motor Speed | 1,725 rpm |
| Overall Height | 21-1/8 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
