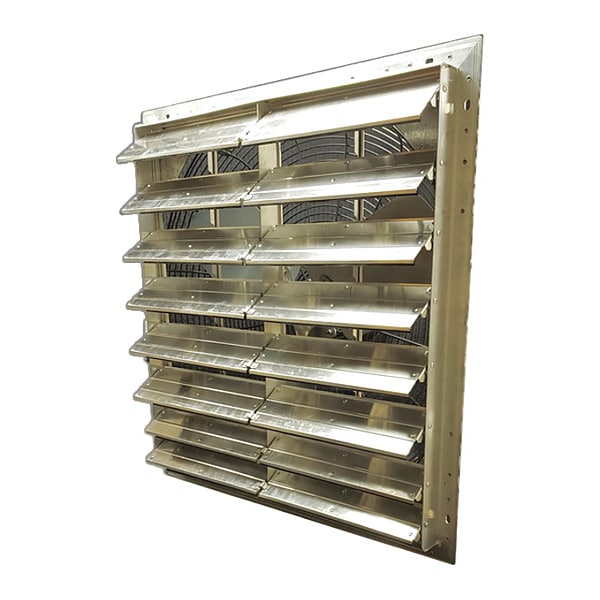

Shutter Mount Exhaust Fan, 36 in Blade, 1 Speed, 8225 CFM, 115V, 8.24 Sones, Aluminum
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Exhaust/Supply Fan Item | Exhaust Fan |
| Blade Dia. | 36 in |
| Number of Speeds | 1 |
| Fan Voltage | 115 V |
| CFM @ 0.000-In. SP | 8,860 |
| Exhaust/Supply Fan Motor HP | 0.5 HP |
| Square Opening Required | Greater than 30 in |
| Width | 39-1/8 in |
| Height | 39 1/8 in |
| Item | Shutter Mount Exhaust Fan |
| Max. Ambient Temp. | 104 deg F |
| Max. Depth | 17 in |
| Motor Enclosure | Totally Enclosed Air Over |
| Number of Blades | 3 |
| Sones @ 0.000-In. SP @ 5 Ft. | 8.24 |
| CFM @ 0.250-In. SP | 3140 |
| CFM @ 0.125-In. SP | 6828 |
| Motor Insulation | Class B |
| Standards | C-UL Listed, OSHA Compliant Guards, UL |
| Thermal Protection | Yes |
| Motor Type | Single Phase |
| Voltage | 115 V |
| Full Load Amps | 6 |
| Phase | 1 |
| Frame Material | Aluminum |
| Frame Finish | Aluminum |
| Motor RPM | 825 |
| Hz | 60 |
| Bearing Type | Ball |
| Wire Guard Finish | Powder Coated |
| Blade Material | Steel |
| Guard Material | Steel |
| Includes | Intake Guard |
| For Cut-Out Width | 37 in |
| Duct Width | Not Applicable |
| Fan Style | Shutter-Mounted |
| Maximum Airflow | 8,860 cfm |
| Overall Width | 39-1/8 in |
| Exhaust Airflow @ 0.000 in SP | 8,860 cfm |
| Ventilation Type | Exhaust |
| Full Load Current | 6 A |
| Duct Diameter | Not Applicable |
| Exhaust Airflow @ 0.100 in SP | 7,154 cfm |
| Number of Shutters | 1 |
| Maximum Ambient Operating Temperature | 104 deg F |
| Housing Material | Aluminum Steel |
| Drive Type | Direct Drive |
| For Minimum Wall Thickness | 3 in |
| Exhaust Airflow @ 0.125 in SP | 6,828 cfm |
| Speed Controllable | No |
| Exhaust Airflow @ 0.250 in SP | 3,140 cfm |
| Noise Level @ 0.000 in SP @ 5 ft | 8.24 sones |
| Electrical Connection | Hardwired |
| Frequency | 60 Hz |
| Nameplate Voltage | 115/208-230 V |
| Maximum Noise Level | 8.24 sones |
| Duct Height | Not Applicable |
| Duct Shape | Not Applicable |
| Guard Finish | Powder Coated |
| Overall Depth | 17 in |
| Noise Level @ 0.100 in SP @ 5 ft | 8.15 sones |
| Motor Speed | 825 RPM |
| Wattage | 607 W |
| Includes Motor | Yes |
| Motor Horsepower | 0.5 HP |
| For Cut-Out Height | 37 in |
| For Maximum Wall Thickness | 6 in |
| Assembled | Assembled |
| Housing Finish | Powder Coated |
| Includes Dehumidistat | No |
| Blade Diameter | 36 in |
| Mounting Orientation | Vertical |
| Overall Height | 39-1/8 in |
| Maximum Coverage Area | 2,200 sq ft |
| Manufacturer Warranty Length | 1 yr |
| Number of Fans | 1 |
| Guard Type | Intake |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
