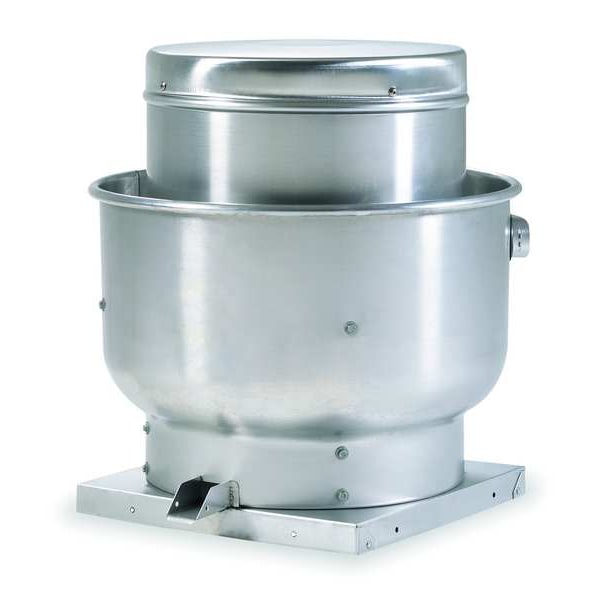

Sq Alu 30"L, 30"W Roof/Wall Exhst Fan
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item - Roof Ventilators | Roof, Wall Ventilator |
| Drive Package With Motor Included | No |
| Duty Rating - Roof Ventilators | Hazardous Location |
| Drive Type - Roof Ventilators | Belt Drive |
| Mounting Location - Roof Ventilators | Roof, Wall |
| Base Size - Roof Ventilators | 30 in x 30 in |
| Housing Material | Aluminum |
| Item | Centrifugal Upblast Roof Exhaust Fan |
| Wheel Material | Aluminum |
| Drive Type | Belt Drive |
| Base Width | 30 in |
| Base Length | 30 in |
| Wheel Dia. | 18-1/2 in |
| Standards | AMCA Sound and Air, UL/cUL 762 |
| Overall Height | 31-3/4 in |
| Maximum Airflow | 5,648 cfm |
| Maximum Static Pressure | 2 in wc |
| Base Shape | Square |
| For Air Type | Kitchen Air |
| Minimum Motor Horsepower | 0.25 HP |
| Base Diameter | Not Applicable |
| Minimum Airflow | 1,763 cfm |
| Includes Drive Package | No |
| For High-Static Pressure Applications | No |
| Maximum Inlet Air Temperature | 400 deg F |
| Assembly | Unassembled |
| Includes Motor | No |
| Maximum Motor Horsepower | 1.5 HP |
| Wheel Diameter | 18-1/2 in |
| Application | Industrial and Commercial Buildings, Restaurants, Schools |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
