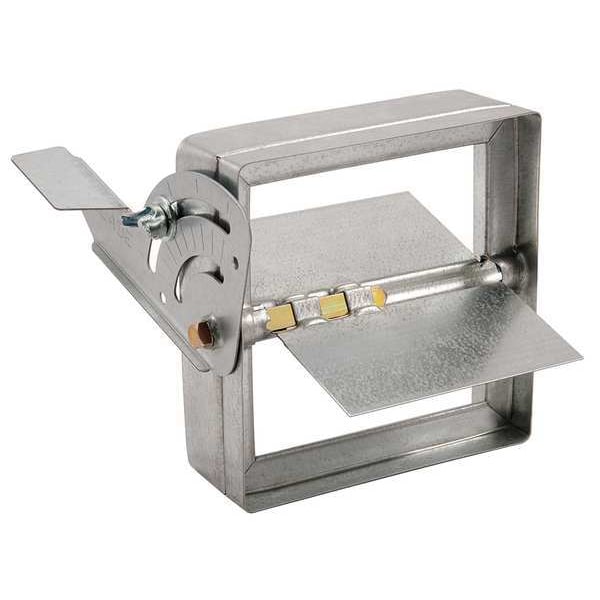

Square Balancing Damper, 10x10
| Item | 9.75"H-W 2"L Squ Manual Balancing Dampr |
|---|---|
| Includes | Locking Manual Quadrant |
| Blade Material | Galvanized Steel |
| Frame Depth (In.) | 1-7/8 |
| Max. Velocity (FPM) | 2,000 fpm |
| For Use In | Low Velocity and Low Differential Pressure Systems |
| Frame Width (In.) | 9-3/4 |
| Max. Temp. (F) | 180 Degrees F |
| Frame Height (In.) | 9-3/4 |
| Frame Material | Steel |
| Blade (Gauge) | 20 ga |
| Frame (Gauge) | 22 ga |
| Duct Height (In.) | 10 |
| Pressure Differential Max. | 1.0 in wc |
| Type | Manual Single Blade |
| Duct Width (In.) | 10 |
| Actuator | Manual |
| Maximum Ambient Temperature | 180 deg F |
| Maximum Pressure | 2 in wc |
| Flange Width | Not Applicable |
| Rough Opening Shape | Square |
| Single Acting/Double Acting | Not Applicable |
| Overall Width | 9-3/4 in |
| Blade Seal Material | Not Applicable |
| Closure Type | Not Applicable |
| Mounting Position | Horizontal, Vertical |
| Pressure Drop @ 1000 fpm (AMCA 5.2) | Not Applicable |
| Rough Opening Diameter | Not Applicable |
| Closure Pressure Rating | 2 in wc |
| Blade Type | Flat Blade |
| Frame Material Thickness | 22 ga |
| Number of Panels | 1 |
| Damper Application | Balancing |
| Rough Opening Width | 10 in |
| Frame Depth | 1-7/8 in |
| Overall Length | 1-7/8 in |
| For Duct Shape | Square |
| Flange Type | Not Applicable |
| Fits Fan Diameter | Not Applicable |
| Blade Material Thickness | 20 ga |
| Switch Action | Normally Open |
| Connection Type | Not Applicable |
| ACMA Leakage Class | Not Applicable |
| Damper Type | Not Applicable |
| Axle Material | Plated Steel |
| Maximum Air Velocity | 2,000 fpm |
| Counterbalanced | Not Applicable |
| Seal Material | Not Applicable |
| Overall Height | 9-3/4 in |
| For Fuel Type | Not Applicable |
| Airflow Direction | Horizontal; Vertical |
| Rough Opening Length | Not Applicable |
| Mounting Style | Not Applicable |
| Frame Less Flange | 100 sq in |
| Blade Orientation | Not Applicable |
| Closure Velocity Rating | 2,000 fpm |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
