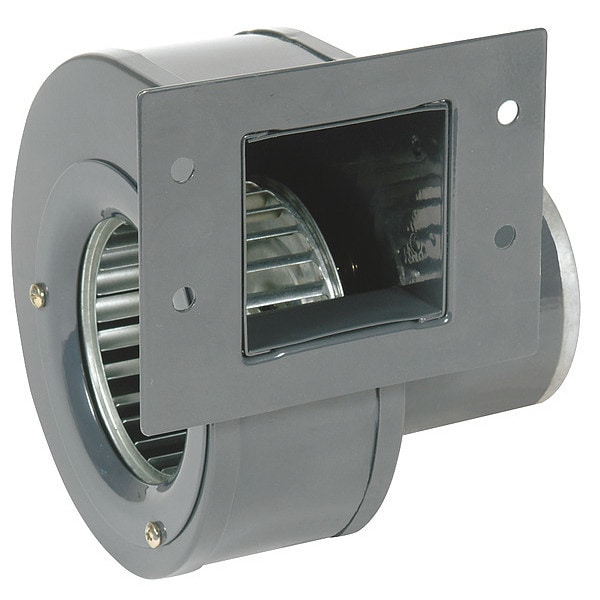

Square OEM Blower, 2950 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 127 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 3.9 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 3-1/4 in |
| Number of Speeds | 1 |
| Overall Height | 6-1/2 in |
| Overall Width | 6-1/4 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Square |
| With Flange | Yes |
| Blower Wheel Diameter | 3-3/4 in |
| Blower Motor Type | DC |
| Blower Voltage | 12V DC |
| Blower Thermal Protection | No Thermal Protection |
| Blower Conduit Box | Yes |
| Dimension C | 6-5/16 in |
| CFM @ 0.300-In. SP | 118 |
| Lead Length | 13 in |
| CFM @ 0.400-In. SP | 112 |
| Motor Enclosure | Open |
| Max. Inlet Temp. | 104 deg F |
| Overall Depth | 6-1/2 in |
| Agency Compliance | UL Recognized US and Canada (E47479) |
| Item | OEM Blower |
| Outlet Height | 2-1/2 in |
| Dimension D | 2-5/8 in |
| Mounting Position | All Position |
| Dimension B | 7-1/4 in |
| Dimension E | 6-9/16 in |
| RPM | 2,950 |
| Outlet Width | 2-1/2 in |
| Wheel Type | Forward-Curved |
| Bearing Type | Ball |
| CFM @ 0.000-In. SP | 139 |
| Dimension M | 1-1/2 in |
| Dimension J | 5-1/8 in |
| Motor Insulation | Class B |
| Housing Finish | Enamel |
| CFM @ 0.200-In. SP | 119 |
| Max. Ambient Temp. | 104 deg F |
| Blower Wheel Width | 1-7/8 in |
| Dimension F | 3-1/8 in |
| Dimension K | 4 in |
| Dimension L | 4-1/8 in |
| CFM @ 0.500-In. SP | 105 |
| Dimension A | 6-9/16 in |
| Housing Color | Gray |
| Airflow @ 4.000 in SP | Not Applicable |
| Airflow @ 4.500 in SP | Not Applicable |
| Housing Material Gauge | 1 mm |
| Airflow @ 0.500 in SP | 105 cfm |
| Frequency | Not Applicable |
| Housing Width | 6-1/4 in |
| Airflow @ 2.500 in SP | Not Applicable |
| Manufacturer Warranty Length | 1 yr Limited |
| Wheel Width | 1-7/8 in |
| Wheel Diameter | 3-3/4 in |
| Airflow @ 7.000 in SP | Not Applicable |
| Wheel Bore Diameter | 8 mm |
| Housing Material Grade | SPCC |
| Nameplate Voltage | 12V DC |
| OEM Replacement | Yes |
| Number of Inlets | 1 |
| Speed Controllable | No |
| Airflow @ 1.500 in SP | Not Applicable |
| AMCA Fan Class | Not Rated |
| Motor IP Rating | IP20 |
| Flange Size | 5-1/8 in W x 4 in H |
| Inlet Diameter | 3-1/4 in |
| Airflow @ 1.000 in SP | Not Applicable |
| Maximum Static Pressure | 1.25 in wc |
| Spark Resistant Construction Type | Not Rated |
| Replacement For | Not Applicable |
| Housing Height | 6-1/2 in |
| Motor Horsepower | 1/30 hp |
| Assembly | Assembled |
| Airflow @ 12.00 in SP | Not Applicable |
| Airflow @ 0.000 in SP | 139 cfm |
| Airflow @ 13.00 in SP | Not Applicable |
| Outlet Shape | Square |
| High-Efficiency Motor | No |
| Corrosion Resistant | No |
| Wheel Material Finish | Galvanized |
| Hazardous Location Specification | Not Applicable |
| Flange Type | Flanged |
| Motor Frame Designation | 12 VDC motor |
| Hazardous Location Application | No |
| Resistance Properties | Corrosion Resistant |
| Airflow @ 0.125 in SP | Not Applicable |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Airflow @ 9.000 in SP | Not Applicable |
| Motor Insulation Class | B |
| Sound Level | Not Rated |
| Maximum Ambient Temperature | 104 deg F |
| Airflow @ 10.00 in SP | Not Applicable |
| Maximum Inlet Air Temperature | 104 deg F |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Airflow @ 0.375 in SP | Not Applicable |
| Brake Horsepower | 1/30 hp |
| Includes Motor | Yes |
| Includes Mounting Hardware | No |
| Current | 3.9 A |
| Motor Duty Class | Continuous |
| Airflow @ 0.100 in SP | 127 cfm |
| Housing Material Finish | Enamel |
| Compatible Speed Control | No |
| Airflow @ 3.000 in SP | Not Applicable |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Airflow @ 0.400 in SP | 112 cfm |
| Minimum Ambient Temperature | 14 deg F |
| Housing Depth | 6-1/2 in |
| Chemical Resistant | No |
| Electrical Connection | Wire Leads |
| Minimum Fan Speed | 0 RPM |
| Shaft Diameter | 8 mm |
| Airflow @ 2.000 in SP | Not Applicable |
| Mount Type | All Position |
| Airflow @ 11.00 in SP | Not Applicable |
| Rotation | CW |
| Motor Speed | 2,950 rpm |
| Airflow @ 0.250 in SP | 126 cfm |
| Airflow @ 8.000 in SP | Not Applicable |
| Includes Drive Package | Not Applicable |
| Airflow @ 5.000 in SP | Not Applicable |
| Airflow @ 3.500 in SP | Not Applicable |
| Market | Commercial, Industrial, Residential |
| For Location | Indoor |
| Maximum Fan Speed | 2,950 rpm |
| Airflow @ 0.750 in SP | Not Applicable |
| Airflow @ 6.000 in SP | Not Applicable |
| Outlet Diameter | Not Applicable |
| Thermal Overload Protection | No |
| Standards | CE Compliant, RoHS Compliant |
| Airflow @ 1.250 in SP | Not Applicable |
| Motor Location | Out of Airstream |
| For Air Type | Clean Air |
| For High-Static Pressure Applications | No |
| Mounting Orientation | Multiposition |
| Wheel Material | Steel |
| Voltage | 12VDC |
| Mounting | All Position |
| Motor Type | Permanent Magnet DC |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
