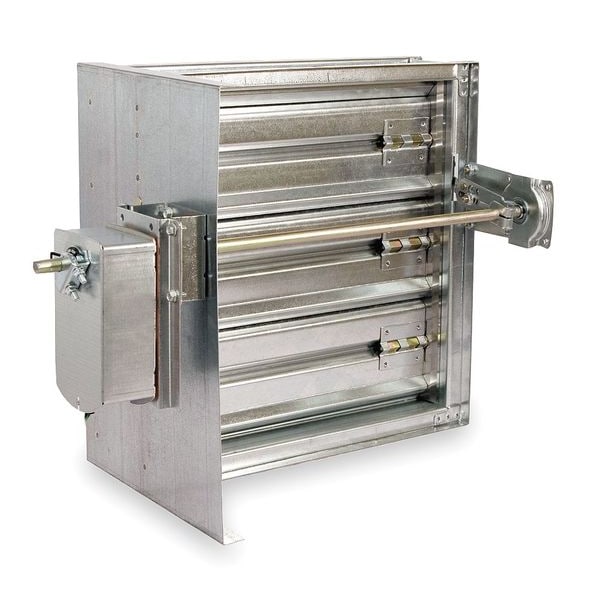

Square Smoke Damper, 120V, 7-3/4 In. W
| Item | 7.75"H 12"L 8"W Mtrzd Stl Smke Dampr |
|---|---|
| Mounting Type | Vertical/Horizontal |
| Actual Width | 7-3/4 in |
| Includes | Factory Mounted Actuator |
| Voltage | 120 V |
| Depth | 12 in |
| Actual Height | 7-3/4 in |
| Material | Galvanized Steel |
| Seals | Flexible Stainless Steel Jamb |
| Frame | 16 ga |
| Nominal Duct Width | 8 in |
| Free Area | 35.3 sq in |
| Blade | 16 ga |
| Nominal Duct Height | 8 in |
| Standards | AMCA; CSFM; IBC; NFPA 80,90A,92,101 and 105; UL 555S |
| Phase | 1 |
| Damper Item | Motorized Smoke Damper |
| Damper Shape | Square |
| Max. Velocity | 2,000 fpm |
| Pressure Differential Max. | 4 in wg |
| Recommended Retaining Angle | Mfr. No. 2TGG5 |
| Hz | 60 |
| Max. Temp. | 350 Degrees F |
| Rough Opening Width | 8 in |
| Overall Width | 8 in |
| Jamb Seal Material | Stainless Steel |
| Overall Height | 7-3/4 in |
| Maximum Air Pressure | 4 in wg |
| Mounting Position | Horizontal |
| Closure Pressure Rating | 4 in wc |
| Maximum Temperature Rating | Degrees F |
| Rough Opening Shape | Square |
| Frame Material Thickness | 16 ga |
| Nameplate Voltage | 120V AC |
| Blade Type | V-Groove |
| Blade Material | Galvanized Steel |
| Closure Type | Motorized |
| Number of Panels | 1 |
| Maximum Air Velocity | 2,000 fpm |
| Includes Motor | Yes |
| For Air Type | Emergency Smoke |
| Pressure Drop @ 1000 fpm (AMCA 5.2) | 0.0169 in wg |
| Damper Application | Smoke |
| For Nominal Duct Diameter | Not Applicable |
| Damper Type | Dynamic |
| Overall Diameter | Not Applicable |
| Fusible Link Temperature | 350 deg F |
| Airflow Direction | Horizontal, Vertical |
| Blade Material Thickness | 16 ga |
| Blade Orientation | Parallel Blades |
| For Duct Shape | Square |
| Flange Type | Hat Channel |
| Frequency | 60 Hz |
| Frame Material | Galvanized Steel |
| Closure Velocity Rating | 2,000 fpm |
| ACMA Leakage Class | 2 |
| Frame Less Flange | 64 sq in |
| Blade Seal Material | Silicone |
| Switch Action | Normally Closed |
| Counterbalanced | Not Applicable |
| Flange Width | Not Applicable |
| Rough Opening Diameter | Not Applicable |
| Overall Length | 12 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
