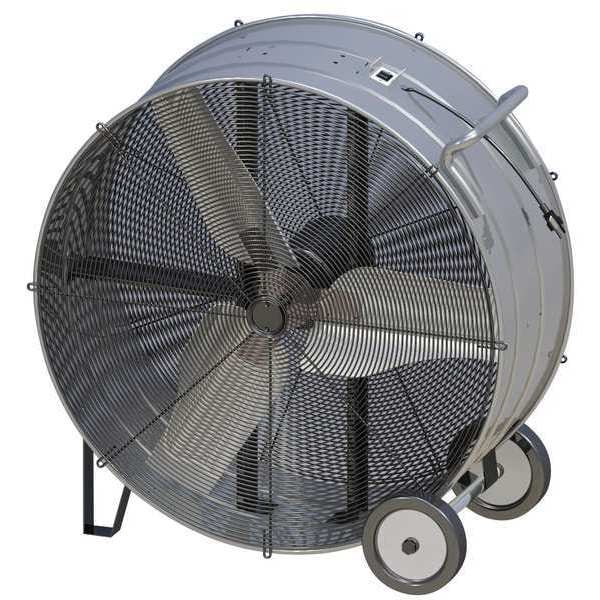

Standard Duty Air Circulator, Floor Mount, 36 in Blade Dia, 120V, 12,800 cfm, Non-Oscillating
| Blade Diameter | 36 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 120V |
| Phase | 1 |
| Motor HP | 0.5 HP |
| Air Flow | 12,800 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 62 dBA |
| Item | Air Circulator |
| Max. Ambient Temp. | 104 deg F |
| NEMA Plug Configuration | 5-15p |
| Motor Insulation | Class B |
| Max. Depth | 19-1/2 in |
| Standards | cULus Listed, OSHA compliant wire guards |
| Includes | 8" Diameter Rubber Casters |
| Air Velocity @ 10 Ft. | 620 fpm |
| CFM High | 12,800 |
| Air Velocity @ 40 Ft. | 249 fpm |
| Watts | 615 W |
| Application | Air Circulation |
| Air Velocity @ 20 Ft. | 470 fpm |
| Fan Style | Standard Duty |
| Fan Mounting Location | Floor |
| Motor Enclosure | Totally Enclosed Air Over |
| Number of Conductors | 3 |
| Environmental Applications | Industrial |
| Assembled | No |
| CFM/Watt | 24.5 |
| Outside Dia. | 38 in |
| Air Velocity @ 60 Ft. | 158 fpm |
| Guard Material | Steel |
| Requires | Assembly |
| Height | 39 in |
| Thermal Protection | Automatic Reset |
| Shaft Dia. | 5/8 in |
| Width | 38 in |
| Wire Guard Finish | Gloss Powder Coated |
| Fan Accessory Style | Standard |
| Air Velocity @ 80 Ft. | 105 fpm |
| Motor RPM | 830 RPM |
| Mobile/Stationary | Mobile |
| Hz | 60 |
| Housing Material | Steel |
| Number of Blades | 3 |
| Bearing Type | Ball |
| Motor Type | Permanent Split Capacitor |
| Fan Cord Length | 10 ft |
| Height Adjustment | Fixed Height |
| Depth | 19-1/2 in |
| Wheel Dia. | 8 in |
| Color | Gray |
| Fan Housing Material | Steel |
| Wheeled Base | Mobile |
| Amps | 5.3 |
| Wheel Material | Steel/Rubber |
| RPM | 830 |
| Assembly Required | Yes |
| Material | Steel |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
