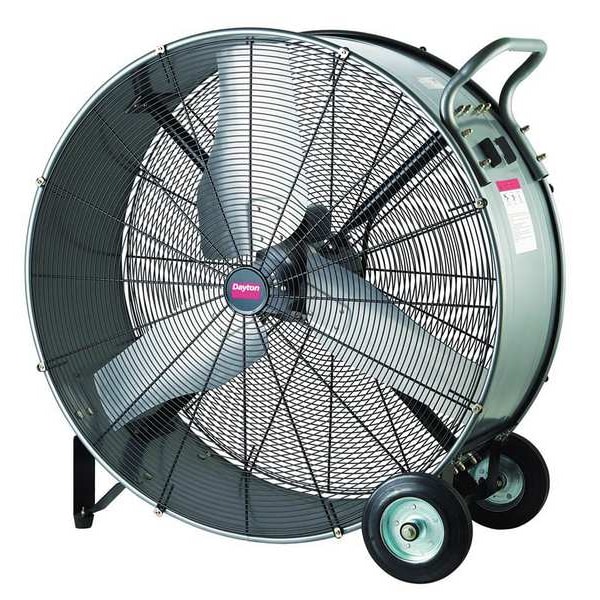

Standard Duty Air Circulator, Floor Mount, 48 in Blade Dia, 120V, 21,000 cfm, Non-Oscillating
| Blade Diameter | 48 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 120V |
| Phase | 1 |
| Motor HP | 1 HP |
| Air Flow | 21,000 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 88.3 dBA |
| Item | Air Circulator |
| Air Velocity @ 60 Ft. | 240 fpm |
| Number of Conductors | 3 |
| Air Velocity @ 40 Ft. | 343 fpm |
| NEMA Plug Configuration | 5-15p |
| Width | 51-1/2 in |
| Thermal Protection | Automatic Reset |
| Shaft Dia. | 19 mm |
| Bearing Type | Ball |
| Guard Material | Steel |
| Requires | Assembly |
| Outside Dia. | 51-1/2 in |
| Motor RPM | 850 RPM |
| Housing Material | Steel |
| Motor Enclosure | Totally Enclosed Air Over |
| Hz | 60 |
| Assembled | No |
| CFM High | 21,000 |
| CFM/Watt | 19 |
| Motor Insulation | Class B |
| Watts | 1000 W |
| Standards | cULus Listed, OSHA compliant wire guards |
| Environmental Applications | Industrial |
| Air Velocity @ 20 Ft. | 557 fpm |
| Wire Guard Finish | Gloss Powder Coated |
| Includes | 10" Diameter Rubber Casters |
| Motor Type | Permanent Split Capacitor |
| Application | Spot Cooling and People Cooling; Air Circulation |
| Fan Mounting Location | Floor |
| Max. Depth | 21 in |
| Mobile/Stationary | Mobile |
| Air Velocity @ 80 Ft. | 202 fpm |
| Number of Blades | 3 |
| Fan Style | Standard Duty |
| Fan Accessory Style | Standard |
| Air Velocity @ 10 Ft. | 755 fpm |
| Height | 52 in |
| Max. Ambient Temp. | 104 deg F |
| Height Adjustment | Fixed Height |
| Amps | 8.7 |
| Wheeled Base | Mobile |
| Wheel Material | Steel/Rubber |
| Fan Cord Length | 10 ft |
| Color | Gray |
| Wheel Dia. | 10 in |
| Fan Housing Material | Steel |
| Depth | 21 in |
| Assembly Required | Yes |
| RPM | 850 |
| Material | Steel |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
