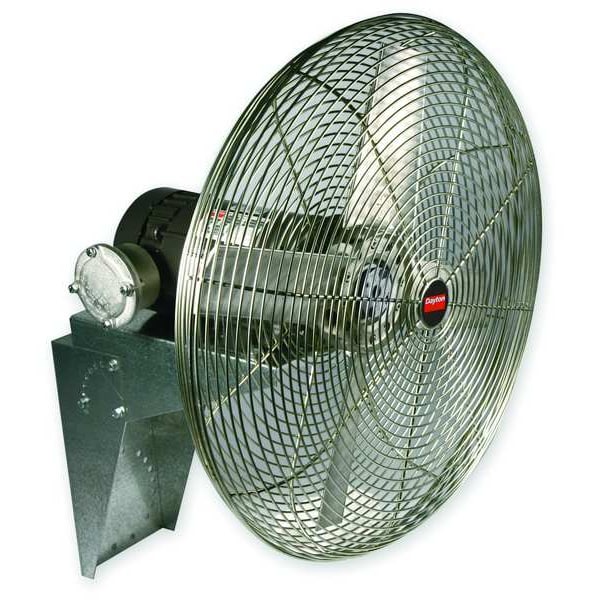

Standard Duty Hazardous Location Industrial Fan, Wall Mount, 24 in Blade Dia, 115/230V, 5,486 cfm
| Blade Diameter | 24 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 115/230V |
| Phase | 1 |
| Motor HP | 0.25 HP |
| Air Flow | 5,486 cfm |
| Drive Type | Direct Drive |
| Blade Material | Cast Aluminum |
| Sound Level | 76 dBA |
| Item | Hazardous Location Industrial Fan |
| Hz | 60 |
| Bearing Type | Ball |
| Motor Insulation | Class B |
| Watts | 353 W |
| Width | 27 in |
| Mobile/Stationary | Stationary |
| Standards | Motors only are UL Listed (E29183) for Class 1, Div. 1, Group D, and Class II, Div. I, Groups E, F, and G hazardous locationsOSHA-compliant zinc-plated wire guards |
| Motor RPM | 1,140 RPM |
| Fan Accessory Style | Standard |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Air Velocity @ 80 Ft. | 125 fpm |
| Wire Guard Finish | Steel |
| Height | 34 in |
| Assembled | Yes |
| Environmental Applications | Industrial |
| Number of Blades | 4 |
| Air Velocity @ 10 Ft. | 870 fpm |
| Fan Mounting Location | Wall |
| Max. Depth | 23-1/2 in |
| Housing Material | Steel |
| Max. Ambient Temp. | 104 deg F |
| Air Velocity @ 20 Ft. | 520 fpm |
| Outside Dia. | 27 in |
| Guard Material | Steel |
| Air Velocity @ 60 Ft. | 200 fpm |
| Application | Hazardous Location Spot Cooling |
| CFM High | 5,486 |
| Includes | Wall Bracket and Secondary Support Cable |
| Shaft Dia. | 5/8 in |
| Thermal Protection | Automatic |
| Motor Type | Capacitor Start |
| Fan Style | Standard Duty |
| Air Velocity @ 40 Ft. | 280 fpm |
| Fan Housing Material | Steel |
| Amps | 6.0/2.9 |
| Depth | 23-1/2 in |
| Assembly Required | No |
| Wheeled Base | Stationary |
| RPM | 1140 |
| Material | Steel |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
