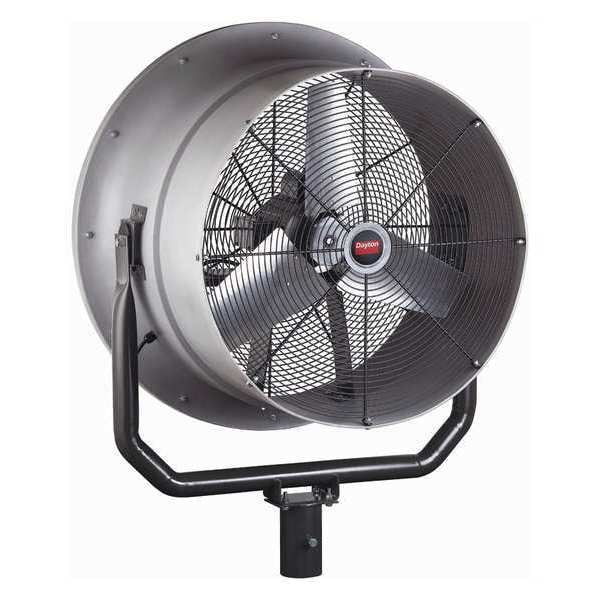

Standard Duty High Velocity Industrial Fan, Ceiling, Wall Mount, 30 in Blade Dia, 115V, 1,180 cfm
| Blade Diameter | 30 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 1 HP |
| Air Flow | 1,180 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 92 dBA |
| Item | High Velocity Industrial Fan |
| Hz | 60 |
| Bearing Type | Ball |
| Mobile/Stationary | Stationary |
| Thermal Protection | Automatic Reset |
| Motor Insulation | Class B |
| Fan Style | Standard Duty |
| NEMA Plug Configuration | 5-15p |
| Fan Accessory Style | Standard |
| Standards | Osha |
| Fan Mounting Location | Wall, Ceiling |
| Height | 51-3/4 in |
| Motor Type | Permanent Split Capacitor |
| Max. Ambient Temp. | 104 deg F |
| CFM High | 11,800 |
| Air Velocity @ 20 Ft. | 1,000 fpm |
| Number of Conductors | 3 |
| Requires | Mounting Accessory |
| Housing Material | Plastic |
| Shaft Dia. | 5/8 in |
| Width | 39-1/2 in |
| Assembled | Yes |
| Wire Guard Finish | Powder Coated |
| Air Velocity @ 10 Ft. | 1,400 fpm |
| Environmental Applications | Industrial |
| Number of Blades | 3 |
| Guard Material | Steel |
| Motor Enclosure | Totally Enclosed Air Over |
| Application | Spot Cooling and People Cooling |
| Air Velocity @ 40 Ft. | 360 fpm |
| Motor RPM | 1,100 RPM |
| Max. Depth | 22-3/4 in |
| Watts | 1080 W |
| Wheeled Base | Stationary |
| Amps | 10 |
| RPM | 1100 |
| Fan Cord Length | 10 ft |
| Height Adjustment | Fixed Height |
| Color | Gray |
| Fan Housing Material | Plastic |
| Assembly Required | No |
| Depth | 22-3/4 in |
| Material | Plastic |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
