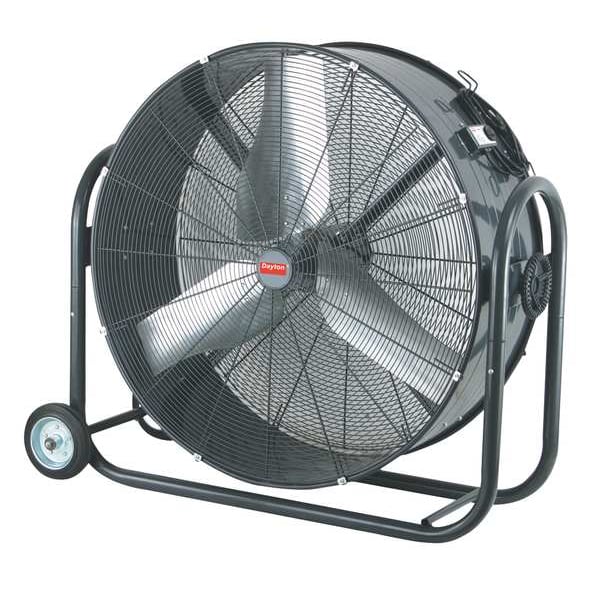

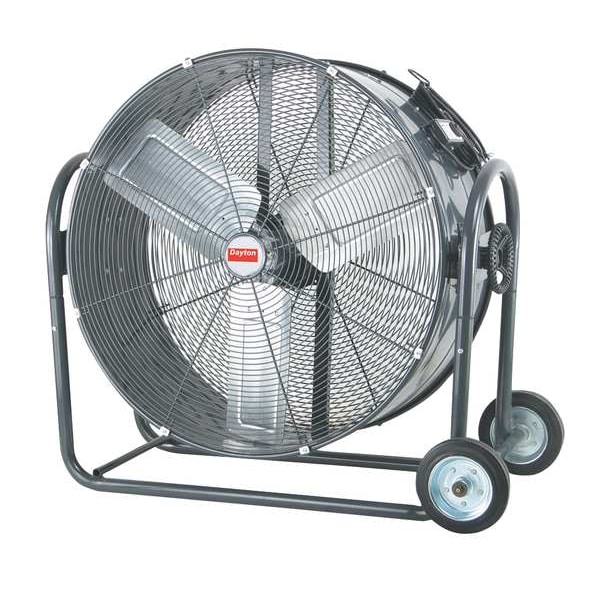

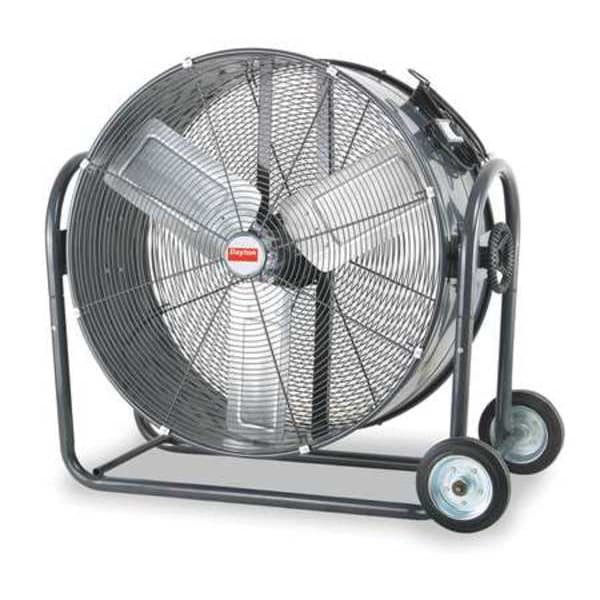

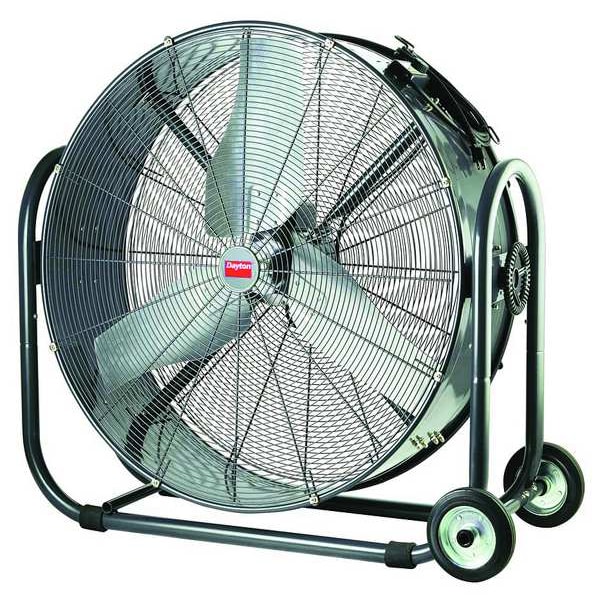

Standard Duty Industrial Fan, 36 in Blade Dia, Non-Oscillating, 115VAC, 8350/12250 CFM
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Blade Diameter | 36 in |
| Oscillation | Non-Oscillating |
| Number of Speeds | 2 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.5 HP |
| Air Flow | 8350/12,250 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 73 dBA |
| Item | Industrial Fan |
| Wire Guard Finish | Polyester Powder Coated |
| Bearing Type | Ball |
| Motor Enclosure | Totally Enclosed Air Over |
| Environmental Applications | Industrial |
| Application | Spot Cooling and People Cooling |
| Width | 46 in |
| Thermal Protection | Automatic Reset |
| Watts | 615/500 W |
| CFM High | 12,250 |
| CFM Low | 8,350 |
| Air Velocity @ 60 Ft. | 150/75 fpm |
| Fan Accessory Style | Standard |
| Air Velocity @ 20 Ft. | 390/340 fpm |
| Motor RPM | 850/750 RPM |
| Fan Style | Standard Duty |
| Shaft Dia. | 5/8 in |
| Max. Ambient Temp. | 104 deg F |
| Housing Material | Steel |
| Fan Mounting Location | Floor |
| Standards | UL/cUL Listed, OSHA compliant wire guards |
| Guard Material | Steel |
| Number of Blades | 3 |
| Hz | 60 |
| Height | 40-5/16 in |
| Mobile/Stationary | Mobile |
| Number of Conductors | 3 |
| Motor Type | Permanent Split Capacitor |
| Air Velocity @ 40 Ft. | 250/190 fpm |
| Assembled | Partially Assembled |
| Outside Dia. | 37 in |
| Max. Depth | 20-1/4 in |
| Includes | Cord Wrap and Tilt Wheel, 7" Plastic and Rubber Casters |
| Motor Insulation | Class B |
| NEMA Plug Configuration | 5-15p |
| Wheeled Base | Mobile |
| RPM | 850/750 |
| Fan Cord Length | 9 ft |
| Wheel Dia. | 7 in |
| Color | Gray |
| Depth | 20-1/4 in |
| Amps | 5.3/4.7 |
| Fan Housing Material | Steel |
| Wheel Material | Steel/Rubber |
| Height Adjustment | Fixed Height |
| Assembly Required | Yes |
| Material | Steel |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
