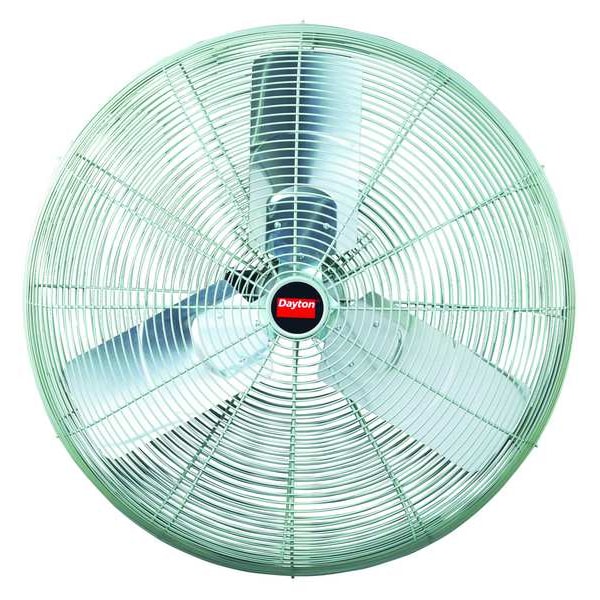

Standard Duty Industrial Fan, Ceiling, IBeam, Pedestal, Wall Mount, 30 in Blade Dia, 208-230/460V
| Blade Diameter | 30 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 208-230/460V |
| Phase | 3 |
| Motor HP | 0.5 HP |
| Air Flow | 9,450 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Fan Power Source | Hardwired |
| Sound Level | 75 dBA |
| Item | Industrial Fan |
| Wire Guard Finish | Polyester Powder Coated |
| Shaft Dia. | 1/2 in |
| Environmental Applications | Industrial |
| Bearing Type | Ball |
| CFM/Watt | 21.98 |
| Assembled | Yes |
| Motor Enclosure | Totally Enclosed Air Over |
| Thermal Protection | None |
| Fan Style | Standard Duty |
| Max. Depth | 13-9/16 in |
| Includes | Mounting Bolts, Conduit Box |
| Housing Material | Steel |
| Max. Ambient Temp. | 104 deg F |
| Outside Dia. | 33 in |
| CFM High | 9,450 |
| Mobile/Stationary | Stationary |
| Number of Blades | 3 |
| Width | 33 in |
| Watts | 430 W |
| Air Velocity @ 40 Ft. | 330 fpm |
| Height | 33 in |
| Motor RPM | 1,100 RPM |
| Motor Type | 3 Phase |
| Hz | 60 |
| Fan Accessory Style | Standard |
| Guard Material | Steel |
| Fan Mounting Location | Wall, Ceiling, Pedestal, IBeam |
| Air Velocity @ 10 Ft. | 1,200 fpm |
| Requires | Mounting Device |
| Standards | UL, cUL, OSHA |
| Motor Insulation | Class B |
| Air Velocity @ 20 Ft. | 755 fpm |
| Application | Industrial Spot Cooling |
| Assembly Required | No |
| Height Adjustment | Fixed Height |
| RPM | 1100 |
| Amps | 2.2-2.2/1.1 |
| Depth | 13-9/16 in |
| Color | Gray |
| NEMA Plug Configuration | Hardwired |
| Wheeled Base | Stationary |
| Fan Cord Length | No Cord |
| Fan Housing Material | Steel |
| Material | Steel |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
