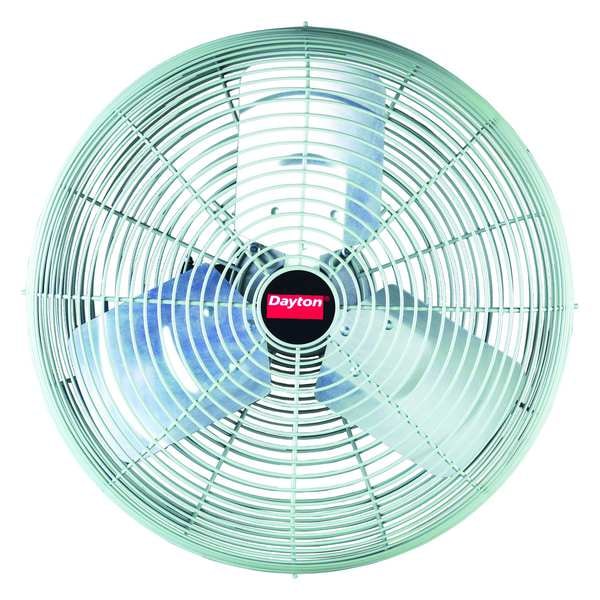

Standard Duty Industrial Fan, Phase 1
| Phase | 1 |
|---|---|
| Number of Blades | 3 |
| Air Velocity @ 20 Ft. | 585/380 fpm |
| Motor Enclosure | Totally Enclosed Air Over |
| Height | 23 in |
| Bearing Type | Ball |
| Hz | 60 |
| Item | Standard-Duty Industrial Misting Fan |
| Voltage | 115V AC |
| Standards | UL, cUL, OSHA |
| Thermal Protection | Automatic Reset |
| Air Velocity @ 40 Ft. | 1.5 fpm |
| Fan Mounting Location | Pedestal |
| Depth | 13-1/8 in |
| Guard Material | Steel |
| Number of Speeds | 2 |
| Air Velocity @ 10 Ft. | 910/600 fpm |
| Motor HP | 0.25 |
| NEMA Plug Configuration | 5-15P |
| Amps | 1.4/2.0 |
| Sound Level | 72 dBA |
| Includes | Air Circulator, Misting Hub Kit, Floor Pedestal |
| Watts | 160/220 |
| Blade Diameter | 20 in |
| Wheeled Base | Stationary |
| Base Dia. | 27 in |
| Height Adjustment | 41 1/2 in to 59 in |
| Features | Mounting Bolts |
| Blade Material | Aluminum |
| Oscillation | Non-Oscillating |
| Color | Gray |
| Width | 23 in |
| Air Flow | 3,080/4,750 cfm |
| Assembly Required | No |
| Motor Insulation | Class B |
| Motor Design | Permanent Split Capacitor |
| Environmental Applications | Industrial |
| Shaft Dia. | 1/2 in |
| Max. Ambient Temp. | 104 Degrees F |
| Wire Guard Finish | Powder Coated |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
