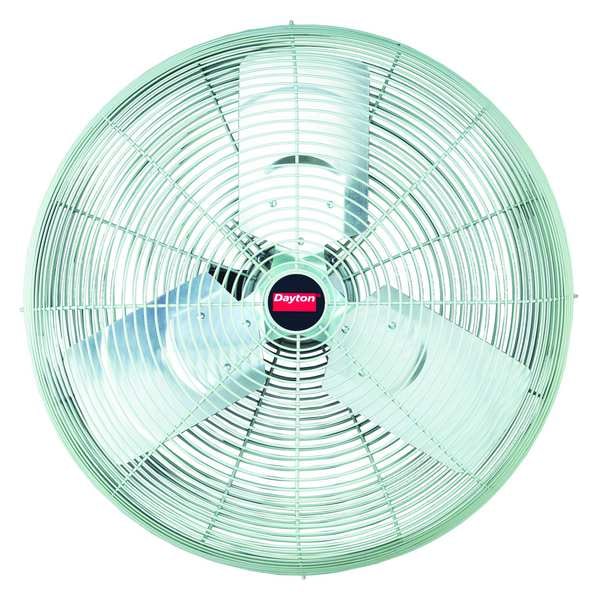

Standard Duty Industrial Fan, Phase 1
| Standards | UL, cUL, OSHA |
|---|---|
| Max. Ambient Temp. | 104 deg F |
| Guard Material | Steel |
| Includes | Air Circulator, Misting Hub Kit, Mounting Bracket |
| Sound Level | 73dBA |
| Width | 27 in |
| NEMA Plug Configuration | 5-15P |
| Depth | 13-9/16 in |
| Motor Design | Permanent Split Capacitor |
| Air Velocity @ 10 Ft. | 980/850 fpm |
| Bearing Type | Ball |
| Blade Material | Aluminum |
| Height Adjustment | Fixed Height |
| Fan Mounting Location | Wall, Ceiling, Post |
| Assembly Required | No |
| Air Velocity @ 40 Ft. | 200/120 fpm |
| Air Velocity @ 20 Ft. | 575/470 fpm |
| Height | 27 in |
| Air Flow | 3,850/6,200 cfm |
| Watts | 305/410 |
| Phase | 1 |
| Features | Mounting Bolts |
| Oscillation | Non-Oscillating |
| Item | Standard-Duty Industrial Fan |
| Motor Enclosure | Totally Enclosed Air Over |
| Color | Gray |
| Shaft Dia. | 1/2 in |
| Voltage | 115V AC |
| Number of Blades | 3 |
| Environmental Applications | Industrial |
| Wire Guard Finish | Powder Coated |
| Thermal Protection | Automatic Reset |
| Amps | 3.0/3.6 |
| Motor HP | 0.3333 |
| Motor Insulation | Class B |
| Blade Diameter | 24 in |
| Wheeled Base | Stationary |
| Hz | 60 |
| Number of Speeds | 2 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
